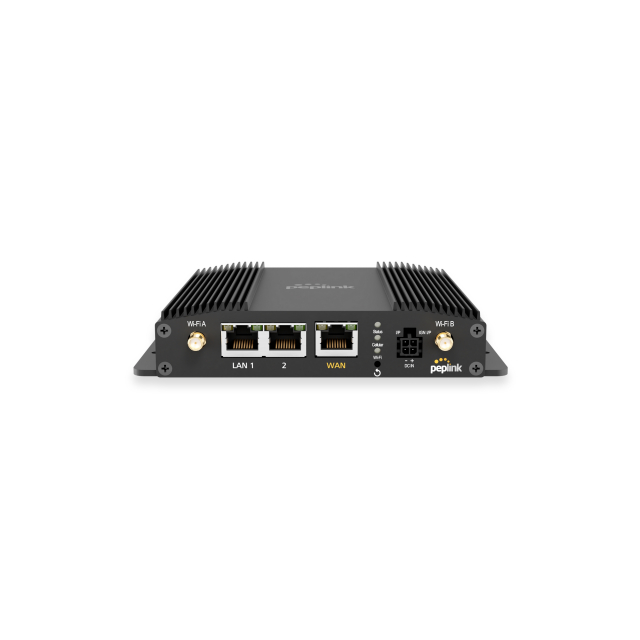

Buy Peplink MAX-BR1-PRO-5GN-T-PRM, MAX BR1 Pro 5G FirstNet Global

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

MAX-BR1-PRO-5GN-T-PRM Includes Only:

1x BR1 Pro 5G
1x 12V2A Power Supply (ACW-632)
4x LTE/5G Antennas (ACW-235)
2x Wi-Fi Dual Band Antenna (ACW-341)
1x GPS Antenna (ACW-232)

Features:

5G Adapter. Need a simple 5G adapter? Add a 5G WAN to any existing router or firewall without the need to replace any of your devices.
5G Router / Gateway. Why stop there? It can also serve as a powerful 5G router for your network. No matter if it's C-Band or LTE, you'll be able to add cellular connectivity easily to your network.
Fixed or Mobile. Supercharged with SpeedFusion, use the BR1 Pro 5G as the central router for your branch network. Guarantee unbreakable connections for important applications, like video calls, POS systems and more.
Wi-Fi 6. Experience less interference and connect to multiple devices simultaneously.

Just like the original BR1 Classic, the BR1 Pro 5G has also been certified to meet the standards of a wide array of deployment criterias.

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Interface

WAN Interface

1× 10/100/1000/2500M Ethernet¹

LAN Interface

2× 10/100/1000M Ethernet¹

Wi-Fi Interface

Simultaneous Dual-Band (2.4GHz / 5GHz)
Wi-Fi 6, 2×2 MU-MIMO
Wi-Fi WAN and/or AP

SpeedFusion / VPN

SpeedFusion Features

Hot Failover
Smoothing
Bandwidth Bonding

Number of SpeedFusion VPN Peers

2 / 5 / 10 / 20¹

Router Throughput

1 Gbps

SpeedFusion Throughput (No Encryption)

400 Mbps

SpeedFusion Throughput (256-bit AES)

200 Mbps

Recommended Users

1 - 150

Access Point Controller

AP Controller

Standard

Maximum Number of AP Supported

30 / 50³

Cellular Performance

Cellular Data Rate (Downlink / Uplink)

5G: 4.1 Gbps / 900 Mbps
CAT-20: 2 Gbps / 211 Mbps

Hardware

Antenna Connectors

4× SMA Cellular Connectors
2× RP-SMA Wi-Fi Antenna Connectors
1× SMA GPS Antenna Connector

Power Input

Power Port: 10V - 30V DC
AC Adapter: AC Input 100V-240V / DC Output 12V

Power Consumption

8W (nominal), 19W (max.)

Dimensions

5.78 × 5.08 × 1.15 in / 146.8 × 129 × 29.3 mm

Weight

1.5 lb / 680 g

Environmental

Operating Temperature

−40° - 149°F / −40° - 65°C

Humidity

15% - 95% (non-condensing)

Certifications

FCC, CE, RoHS
E-Mark
EN61373 Shock and Vibration Resistance
EN50155 Railway Applications
EN61000 Electromagnetic Compatibility
EN45545-2 Railway applications - Fire protection

SIM Options

Nano-SIM (4FF)
Peplink eSIM
BYO eSIM (2 profiles)⁵
RemoteSIM from SIM Injector⁶
FusionSIM⁶

Ordering Information

Regions

Global

5G Bands

5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79

LTE Bands

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

Product Details

Interface

WAN Interface

1× 10/100/1000/2500M Ethernet¹

LAN Interface

2× 10/100/1000M Ethernet¹

Wi-Fi Interface

Simultaneous Dual-Band (2.4GHz / 5GHz)
Wi-Fi 6, 2×2 MU-MIMO
Wi-Fi WAN and/or AP

SpeedFusion / VPN

SpeedFusion Features

Hot Failover
Smoothing
Bandwidth Bonding

Number of SpeedFusion VPN Peers

2 / 5 / 10 / 20¹

Router Throughput

1 Gbps

SpeedFusion Throughput (No Encryption)

400 Mbps

SpeedFusion Throughput (256-bit AES)

200 Mbps

Recommended Users

1 - 150

Access Point Controller

AP Controller

Standard

Maximum Number of AP Supported

30 / 50³

Cellular Performance

Cellular Data Rate (Downlink / Uplink)

5G: 4.1 Gbps / 900 Mbps
CAT-20: 2 Gbps / 211 Mbps

Hardware

Antenna Connectors

4× SMA Cellular Connectors
2× RP-SMA Wi-Fi Antenna Connectors
1× SMA GPS Antenna Connector

Power Input

Power Port: 10V - 30V DC
AC Adapter: AC Input 100V-240V / DC Output 12V

Power Consumption

8W (nominal), 19W (max.)

Dimensions

5.78 × 5.08 × 1.15 in / 146.8 × 129 × 29.3 mm

Weight

1.5 lb / 680 g

Environmental

Operating Temperature

−40° - 149°F / −40° - 65°C

Humidity

15% - 95% (non-condensing)

Certifications

FCC, CE, RoHS
E-Mark
EN61373 Shock and Vibration Resistance
EN50155 Railway Applications
EN61000 Electromagnetic Compatibility
EN45545-2 Railway applications - Fire protection

SIM Options

Nano-SIM (4FF)
Peplink eSIM
BYO eSIM (2 profiles)⁵
RemoteSIM from SIM Injector⁶
FusionSIM⁶

Ordering Information

Regions

Global

5G Bands

5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79

LTE Bands

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

Note

Note: Please read description carefully. Do not base your order on the picture presented.
