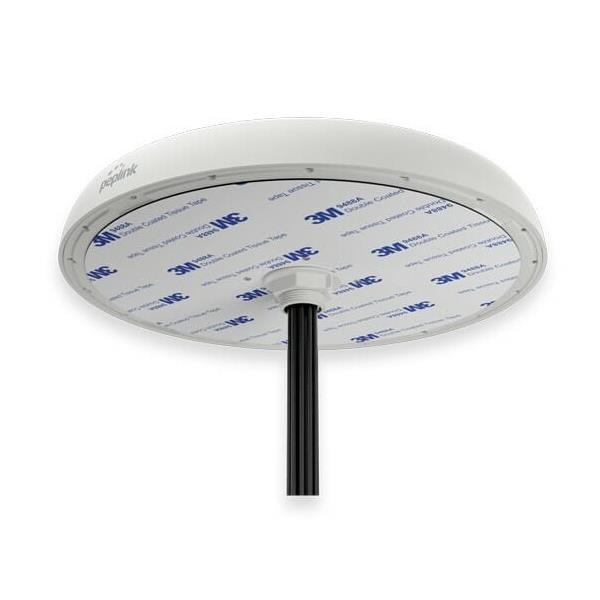

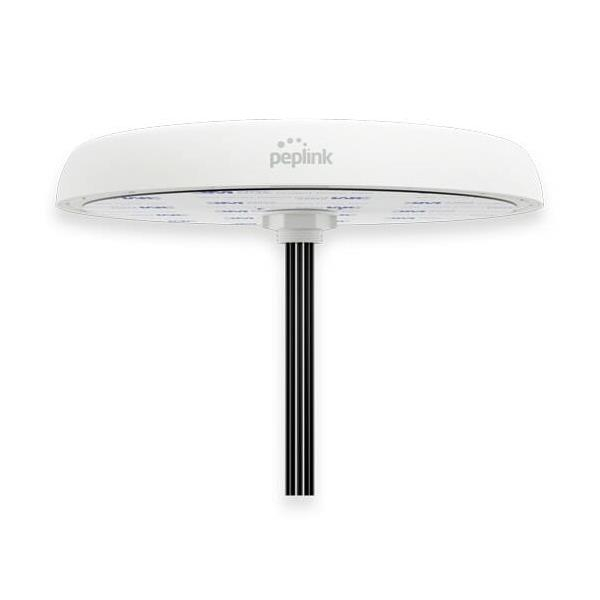

Buy Peplink ANT-MB-82G-Q-W-6, 8x8 MIMO Mobile Antenna QMA

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Termination:: Termination: QMA

Features:

Built for 5G
Ultra Wide Bandwidth
Robust Design
Easy Installation

Applications:

Public Safety & Mission Critical Connectivity
Mobile Healthcare
Transportation Connectivity

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Cellular

Antenna Elements

8 elements

Peak Gain & Frequencies

5.4 dBi: 617-960 MHz
7.5 dBi: 1400-2700 MHz
8.1 dBi: 3400-4200 MHz
8.7 dBi: 5000-6000 MHz

VSWR

< 2.0 over 95% of the band

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

GPS

Frequency Range

1575-1602 MHz

Peak Gain

1.2 dBiC @ 1575 MHz
2.0 dBiC @ 1602 MHz

VSWR

< 1.6

Output Return Loss

−10 dB max

Gain: LNA

29 ±3 dB

Operating Voltage

3.3 V

Power Consumption

6 ±2 mA @ 3.3 V

Wi-Fi

Antenna Elements

2 elements

Peak Gain & Frequencies

6.0 dBi: 2400-2500 MHz
7.4 dBi: 5000-6000 MHz

VSWR

< 2.0

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

Cable (LTE/5G, Wi-Fi)

Type

CFD-200

Loss

0.33 dB/m @ 900 MHz
0.49 dB/m @ 2000 MHz
0.55 dB/m @ 2500 MHz
0.87 dB/m @ 5800 MHz

Diameter

0.2' / 5.0 mm

Jacket

Half matt PVC, UV resistant

Termination

QMA male
RP-SMA male (Wi-Fi)

Cable (GPS)

Type

RG-174

Loss

3.4 dB/m @ 1000 MHz
4.9 dB/m @ 1800 MHz

Diameter

0.1' / 2.7 mm

Jacket

Half matt PVC, UV resistant

Termination

QMA male

Mounting

Supported Types

Panel
Surface (with additional mount)
Magnetic (with additional mount)

Mounting Hole

1.7' / 43 mm

Max Panel Thickness

Up to 6.7' / 170 mm

Environmental, Compliance

IP Rating

IP67

Operating Temperature

−40° - 176°F / −40° - 80°C

Storage Temperature

−40° - 176°F / −40° - 80°C

Compliance

ROHS
REACH
WEEE

Wind Survivability

137 mph / 220 km/h

Enclosure Flammability

UL 94 HB

Cable Flammability

UL 758 (VW-1)

UV Resistance

UL 746C (F1 long-term UV exposure)

Salt Spray

MIL-STD 810F / ASTM 8117

Mechanical

Product Dimensions

2.46' / 62.5 mm - Height (spigot not included)
16.83' / 427.4 mm - Diameter

Packaged Dimensions

20.16' × 20.09' × 9.06' / 512 × 510 × 230 mm

Radome Material

UV stable PC

Product Details

Cellular

Antenna Elements

8 elements

Peak Gain & Frequencies

5.4 dBi: 617-960 MHz
7.5 dBi: 1400-2700 MHz
8.1 dBi: 3400-4200 MHz
8.7 dBi: 5000-6000 MHz

VSWR

< 2.0 over 95% of the band

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

GPS

Frequency Range

1575-1602 MHz

Peak Gain

1.2 dBiC @ 1575 MHz
2.0 dBiC @ 1602 MHz

VSWR

< 1.6

Output Return Loss

−10 dB max

Gain: LNA

29 ±3 dB

Operating Voltage

3.3 V

Power Consumption

6 ±2 mA @ 3.3 V

Wi-Fi

Antenna Elements

2 elements

Peak Gain & Frequencies

6.0 dBi: 2400-2500 MHz
7.4 dBi: 5000-6000 MHz

VSWR

< 2.0

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

Cable (LTE/5G, Wi-Fi)

Type

CFD-200

Loss

0.33 dB/m @ 900 MHz
0.49 dB/m @ 2000 MHz
0.55 dB/m @ 2500 MHz
0.87 dB/m @ 5800 MHz

Diameter

0.2' / 5.0 mm

Jacket

Half matt PVC, UV resistant

Termination

QMA male
RP-SMA male (Wi-Fi)

Cable (GPS)

Type

RG-174

Loss

3.4 dB/m @ 1000 MHz
4.9 dB/m @ 1800 MHz

Diameter

0.1' / 2.7 mm

Jacket

Half matt PVC, UV resistant

Termination

QMA male

Mounting

Supported Types

Panel
Surface (with additional mount)
Magnetic (with additional mount)

Mounting Hole

1.7' / 43 mm

Max Panel Thickness

Up to 6.7' / 170 mm

Environmental, Compliance

IP Rating

IP67

Operating Temperature

−40° - 176°F / −40° - 80°C

Storage Temperature

−40° - 176°F / −40° - 80°C

Compliance

ROHS
REACH
WEEE

Wind Survivability

137 mph / 220 km/h

Enclosure Flammability

UL 94 HB

Cable Flammability

UL 758 (VW-1)

UV Resistance

UL 746C (F1 long-term UV exposure)

Salt Spray

MIL-STD 810F / ASTM 8117

Mechanical

Product Dimensions

2.46' / 62.5 mm - Height (spigot not included)
16.83' / 427.4 mm - Diameter

Packaged Dimensions

20.16' × 20.09' × 9.06' / 512 × 510 × 230 mm

Radome Material

UV stable PC

Note

Note: Please read description carefully. Do not base your order on the picture presented.
