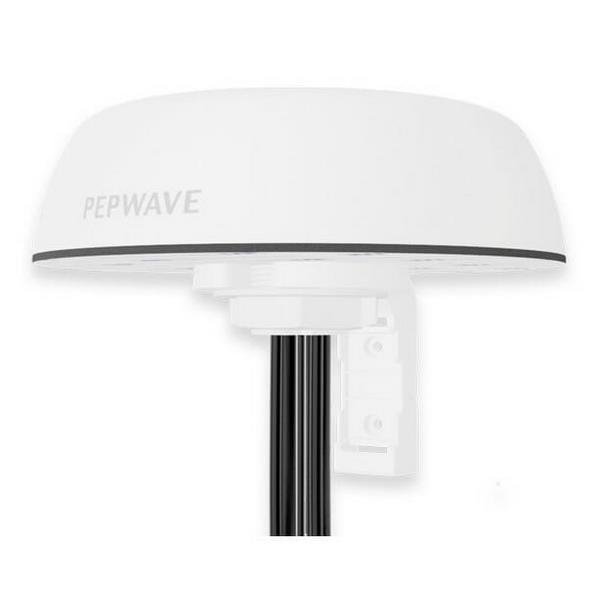

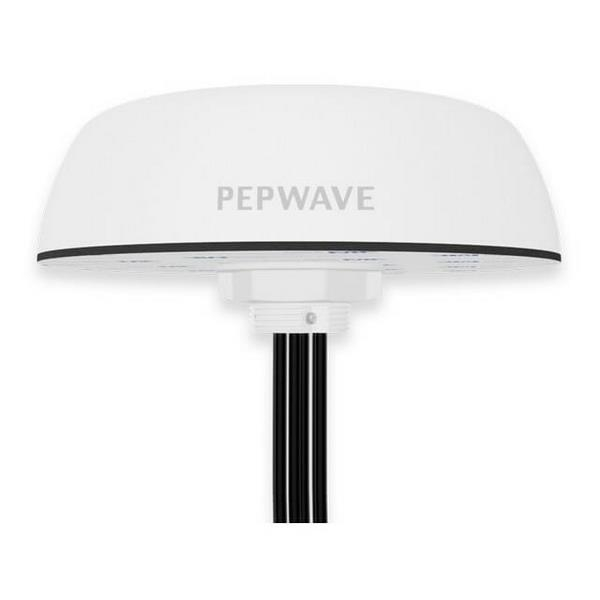

Peplink, ANT-MB-42G-S-W-1, 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver White 1 ft/0.3m

Features:

5G Ready
IP68 Rated and UV proof
B71 Support
7dBi High Gain

Applications:

Public Safety and mission critical connectivity
Mobile Healthcare
Transportation Connectivity

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Cellular

Antenna Elements

4 elements

Cellular Frequencies

4.4 dBi @ 617-960 MHz
7.8 dBi @ 1710-2700 MHz
7.9 dBi @ 3400-4200 MHz
8.2 dBi @ 5000-6000 MHz

Cellular Bands

LTE bands B1 to B86 (except B31, B72, B73, B87, B88)
5G bands n1 to n99

VSWR

< 2.5 over 95% of the band

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

Ground Plane

Not required

Wi-Fi

Antenna Elements

2 elements

Peak Gain & Frequencies

5.0 dBi: 2400-2500 MHz
7.5 dBi: 5000-6000 MHz

VSWR

< 2.5

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

GPS

Frequency Range

1561-1602 MHz

Peak Gain & Frequencies

0.5 dBi @ 1575 MHz
1.6 dBi @ 1602 MHz

VSWR

< 2 dB

Output Return Loss

10 dB max

LNA Gain

28 ±3 dB

Noise Figure

1.5 dB max @ 3.3 V

Operating Voltage

3.3 V

Power Consumption

8.5 ±2.5 mA @ 3.3 V

Cable (LTE / 5G, Wi-Fi)

Type

CFD-200

Loss

0.33 dB/m @ 900 MHz
0.49 dB/m @ 2000 MHz
0.55 dB/m @ 2500 MHz
0.87 dB/m @ 5800 MHz

Diameter

0.2' / 5.0 mm

Jacket

Half matt PVC, UV resistant

Cellular Termination

SMA male

Wi-Fi Termination

QMA male
RP-SMA male

Cable (GPS)

Type

RG-174

Loss

3.4 dB/m @ 1000 MHz
4.9 dB/m @ 1800 MHz

Diameter

0.1' / 2.7 mm

Jacket

Half matt PVC, UV resistant

Termination

QMA male
SMA male

Mounting

Supported Types

Panel
Wall
Pole

Mounting Hole

1 11/16' / 43 mm

Max Panel Thickness

19/32' / 15 mm

Mechanical

Product Dimensions

2.28' / 58 mm (Height, spigot not included)
8.19' / 208 mm (Diameter)

Packaged Dimensions

9.09' × 8.50' × 6.14' / 231 × 216 × 156 mm

Radome Material

UV stable PC

Color

White

Environmental, Compliance

IP Rating

IP68

Operating Temperature

−40° - 176°F / −40° - 80°C

Storage Temperature

−40° - 176°F / −40° - 80°C

Compliance

RoHS
REACH
WHEE

Wind Survivability

167 mph / 268 km/h

Enclosure Flammability

UL 94 HB

Cable Flammability

UL 758 (VW-1)

UV Resistance

UL 746C (F1 long-term UV exposure)

Salt Spray

MIL-STD 810F / ASTM B117

Product Details

Cellular

Antenna Elements

4 elements

Cellular Frequencies

4.4 dBi @ 617-960 MHz
7.8 dBi @ 1710-2700 MHz
7.9 dBi @ 3400-4200 MHz
8.2 dBi @ 5000-6000 MHz

Cellular Bands

LTE bands B1 to B86 (except B31, B72, B73, B87, B88)
5G bands n1 to n99

VSWR

< 2.5 over 95% of the band

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

Ground Plane

Not required

Wi-Fi

Antenna Elements

2 elements

Peak Gain & Frequencies

5.0 dBi: 2400-2500 MHz
7.5 dBi: 5000-6000 MHz

VSWR

< 2.5

Feed Power Handling

10 W

Input Impedance

50 Ω

Polarisation

Linear

GPS

Frequency Range

1561-1602 MHz

Peak Gain & Frequencies

0.5 dBi @ 1575 MHz
1.6 dBi @ 1602 MHz

VSWR

< 2 dB

Output Return Loss

10 dB max

LNA Gain

28 ±3 dB

Noise Figure

1.5 dB max @ 3.3 V

Operating Voltage

3.3 V

Power Consumption

8.5 ±2.5 mA @ 3.3 V

Cable (LTE / 5G, Wi-Fi)

Type

CFD-200

Loss

0.33 dB/m @ 900 MHz
0.49 dB/m @ 2000 MHz
0.55 dB/m @ 2500 MHz
0.87 dB/m @ 5800 MHz

Diameter

0.2' / 5.0 mm

Jacket

Half matt PVC, UV resistant

Cellular Termination

SMA male

Wi-Fi Termination

QMA male
RP-SMA male

Cable (GPS)

Type

RG-174

Loss

3.4 dB/m @ 1000 MHz
4.9 dB/m @ 1800 MHz

Diameter

0.1' / 2.7 mm

Jacket

Half matt PVC, UV resistant

Termination

QMA male
SMA male

Mounting

Supported Types

Panel
Wall
Pole

Mounting Hole

1 11/16' / 43 mm

Max Panel Thickness

19/32' / 15 mm

Mechanical

Product Dimensions

2.28' / 58 mm (Height, spigot not included)
8.19' / 208 mm (Diameter)

Packaged Dimensions

9.09' × 8.50' × 6.14' / 231 × 216 × 156 mm

Radome Material

UV stable PC

Color

White

Environmental, Compliance

IP Rating

IP68

Operating Temperature

−40° - 176°F / −40° - 80°C

Storage Temperature

−40° - 176°F / −40° - 80°C

Compliance

RoHS
REACH
WHEE

Wind Survivability

167 mph / 268 km/h

Enclosure Flammability

UL 94 HB

Cable Flammability

UL 758 (VW-1)

UV Resistance

UL 746C (F1 long-term UV exposure)

Salt Spray

MIL-STD 810F / ASTM B117
