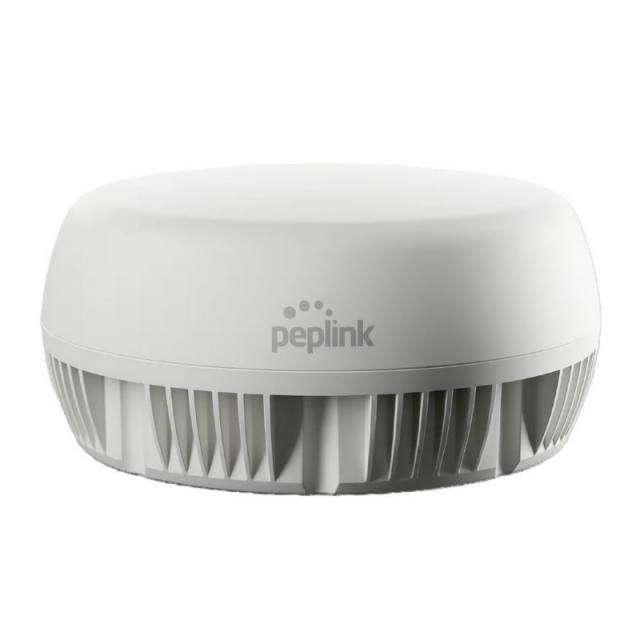

PEPLINK ANT-MAX 7-in-1 Cellular & Wi-Fi Antenna System
Brand:
PEPLINK
Part #:
ANT-MAX
Condition:
Brand New
Brand New $349.00 /Each
Manufacturer warranty Description
Peplink, ANT-MAX, 7-in-1 Cellular & Wi-Fi Antenna System and GPS Receiver
ANT-MAX Includes Only:
- 1x Antenna MAX
- Double sided 3M adhesive pad

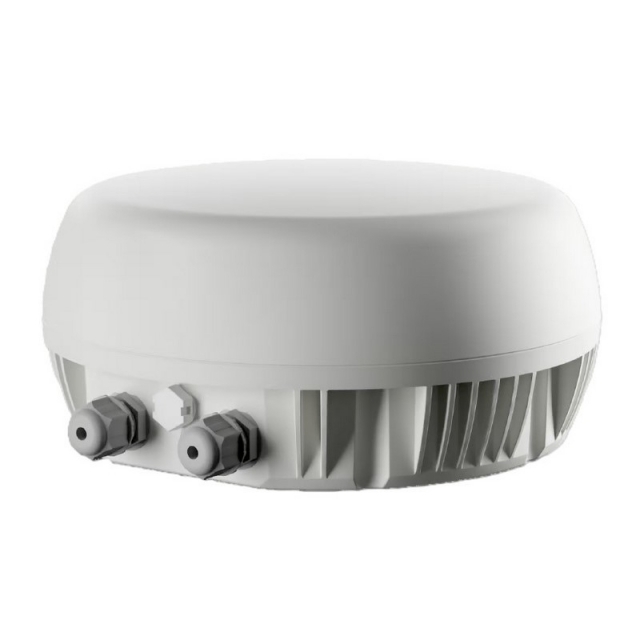

- 3x Cable Gland
- 1x L-Mount Set
- 2x Hole Plug

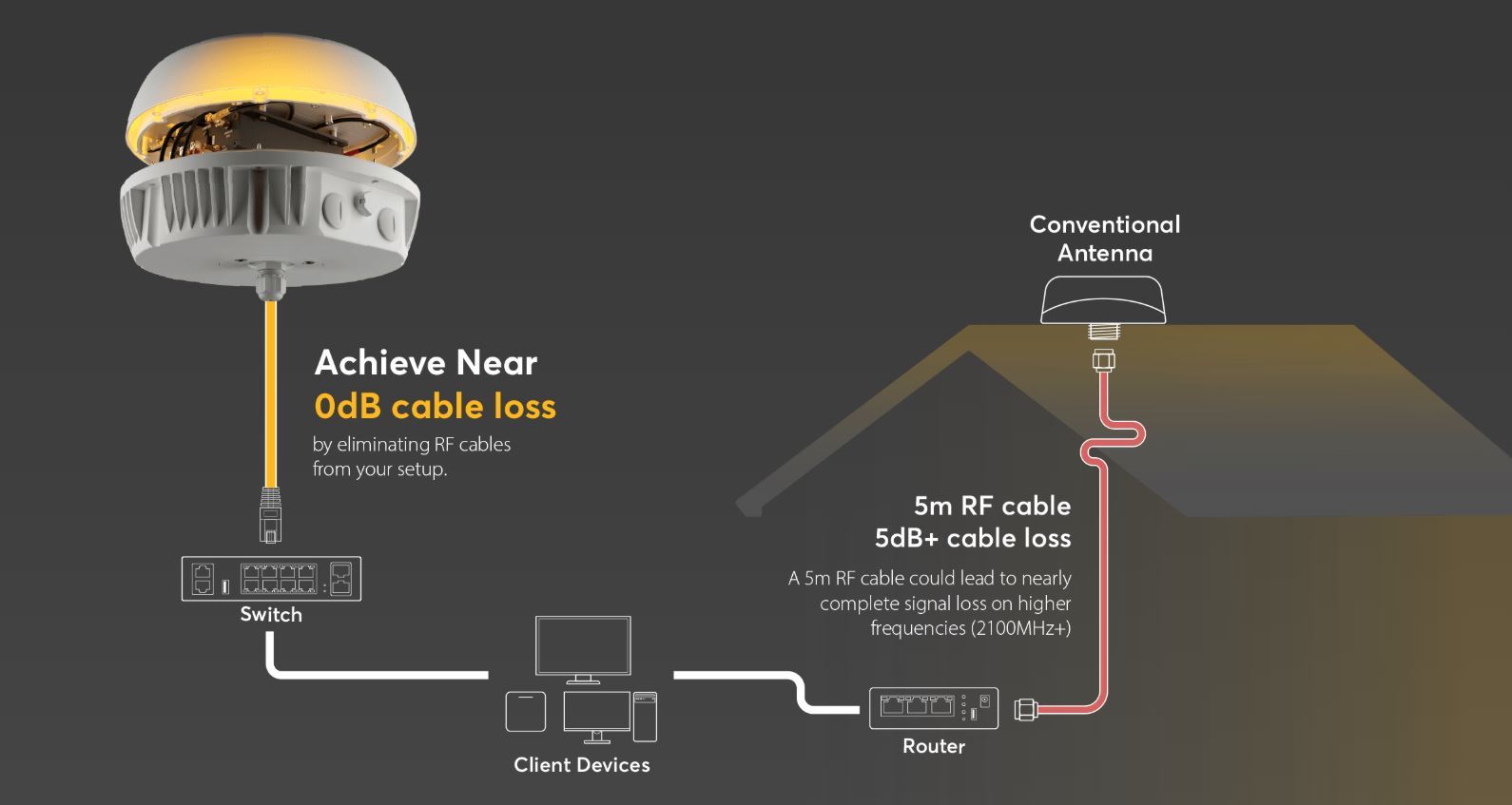

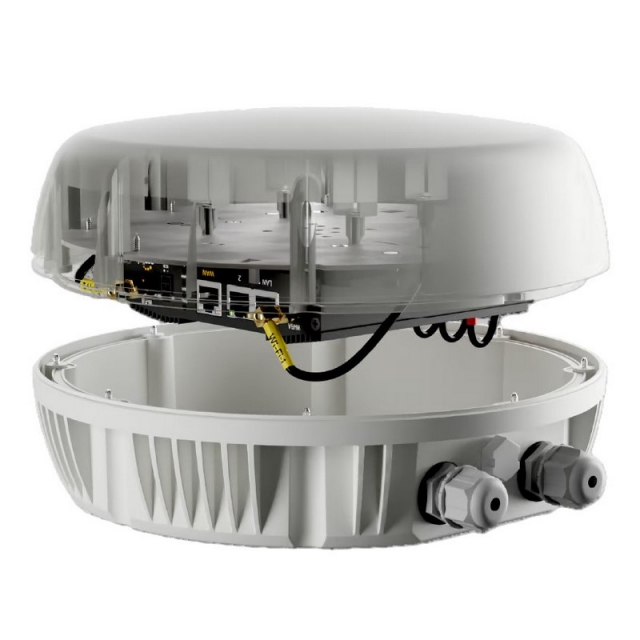

Minimize cable loss by installing your router directly into the antenna enclosure. Retain maximum signal gain by connecting the Antenna MAX to the rest of your network with an ethernet cable.UV-resistant plastic enclosure resists moisture, water intrusion, salt spray and corrosion. Antenna MAX is a cost-effective way to get maximum performance from your cellular and 5G routers in outdoor environments. Mix-and-match antenna with many routers including:
- BR1 Mini Series
- Transit Duo Pro^
- BR1 Pro 5G / CAT-20^
- POTS Adapter^ & AP One Rugged
For more information, please see
Data Sheet
Technical details
Main features
- Connectors Right angle SMA male, Right angle RP-SMA male
- Operating Voltage 3.3 V
- Frequency Range 1575-1602 MHz
- Compliance ROHS REACH WEEE
- Product Dimensions 4.72' / 120 mm (Height), 9.84' / 250 mm (Diameter)
- Power Consumption 10 ±3.0 mA
- Operating Temperature −40° to 176°F / −40° to 80°C
- Storage Temperature −40° to 176°F / −40° to 80°C
- IP Rating IP67
- UV resistance UL 746C (f1 long-term UV exposure)
- VSWR < 2.5 over 95% of the band, < 2.5, < 2.0
- Noise Figure 2.5 dB
- Input Impedance 50 Ω
- Enclosure Material UV stable PC
- Salt Spray MIL-STD 810F / ASTM B117
- Antenna Elements 4 elements, 2 elements
- Polarisation Linear
- Supported Types Surface Wall Pole
- Packaged Dimensions 13.82' × 11.61' × 5.75' / 351×295×146 mm
- Peak Gain & Frequencies 3.0 dBi: 617-960 MHz 6.2 dBi: 1410-2700 MHz 5.7 dBi: 3400-4000 MHz 6.6 dBi: 5000-6000 MHz, 5.4 dBi: 2400-2500 MHz 7.4 dBi: 5000-6000 MHz
- Feed Power Handling 10 W
- Peak Gain 0.9 dBi @1575 MHz 0.8 dBi @1602 MHz
- Gain: LNA 27 ±3 dB
- Enclosure Flammability UL 94 V-0 (1.47 mm)
