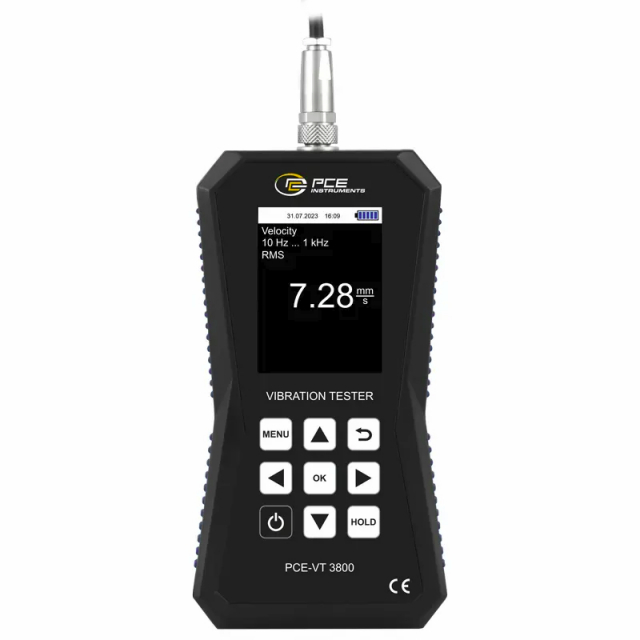

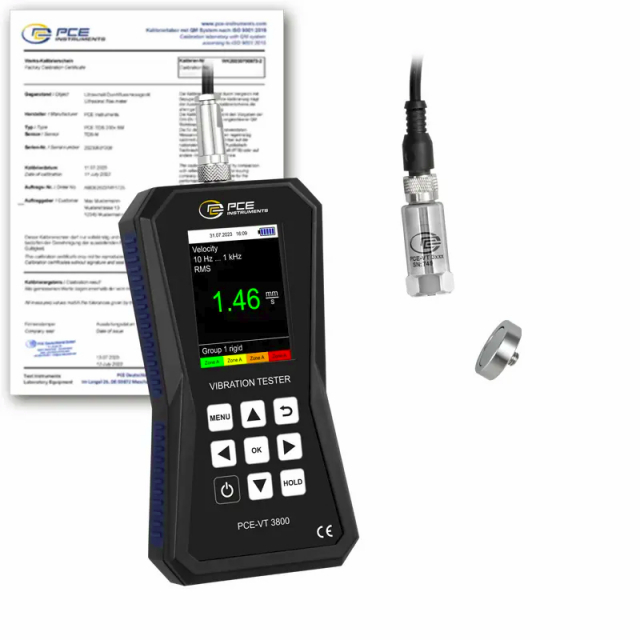

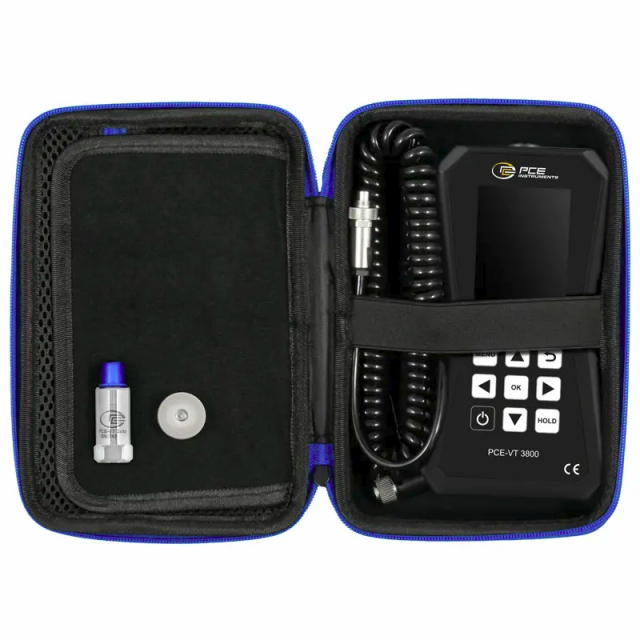

PCE Instruments PCE-VT 3800-ICA Vibration Meter with ISO Calibration

Part #:
PCE-VT 3800-ICA
Condition:
Brand New
Contact Us For Pricing
Check availability
Contact Us For Pricing
Manufacturer warranty

Description

Contact Us For Pricing
Check availability

Technical details

Main features
  • Weight 239 g / 8.4 oz
  • Dimensions 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3", Ø 17 x 46 mm / 0.67 x 1.8"
  • Power Supply Internal: LiPo battery (3.7 V, 2500 mAh) External: USB 5 VDC, 500 mA
  • Frequency Range 10 Hz ... 10 kHz 1 kHz ... 10 kHz, 10 Hz ... 1 kHz, 10 Hz ... 200 Hz
  • Measuring Range Acceleration 0.0 ... 399.9 m/s² / 0.0 - 15744 in/s², Velocity 0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s, Displacement 0.000 ... 3.9 mm / 0.000 - 0.154 in
  • Units can be switched to metric / imperial
  • Housing Material Stainless Steel
  • Protection Class IP52
  • Measurement Parameters RMS, Peak, Peak-Peak Crest factor
  • Display 2.8" LC display
  • Resolution 0.1 m/s² / 3.94 in/s², 0.1 mm/s / 0.0039 in/s, 1 μm / 39.4 μin
  • Operating Time ca. 15 ... 20 h (depending on display brightness)
  • Mounting Thread ¼ - 28"
  • Operating and storage temperature -55 °C ... +150 °C / -67 °F ... 302 °F
  • Data Logger Various start/stop triggers Measurement interval between 1 s ... 12 h 50 memory locations with 43200 measured values each
  • Accuracy at 160 Hz ±2 %
  • Manual memory 99 folders with 50 measured values each
  • Menu languages English, German, French Spanish, Italian, Dutch Portuguese, Turkish, Polish Russian, Chinese, Japanese
  • Operating and storage conditions temperature: -20 ... +65 °C / -4 ... 149 °F humidity: 10% RH ... 95% RH, non-condensing
  • Resonance frequency 24 kHz
  • Transverse sensitivity ≤ 5%
  • Destruction limit 5000 g (peak)
  • Weight (without cable) 52 g / 1.8 oz
