Buy PCE Instruments PCE-VS12, Vibration Switch w/ External USB Port

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

PCE-VS12 Includes Only:

1 x PCE-VS12 vibration sensor switch
1 x USB cable
1 x PC-compatible software
1 x user manual

Features:

Ideal for machine condition monitoring and quality control applications
Measures RMS and peak value of vibration velocity or acceleration

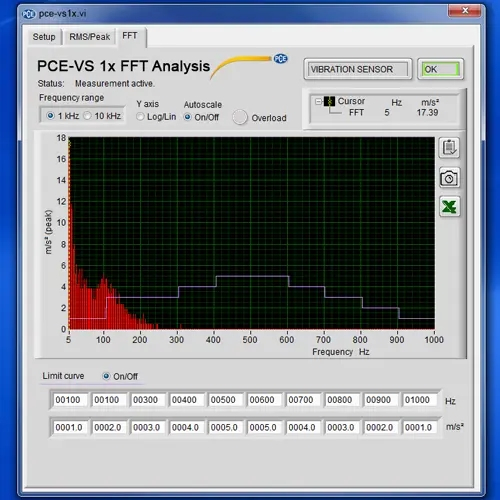

Monitoring of the frequency domain (FFT)
Piezoelectric accelerometer
IP67 ingress protection rating against water and dust
Features an external USB port and 8-pin female connector 711
Programmable high-pass and low-pass filters
Emergency shut-off

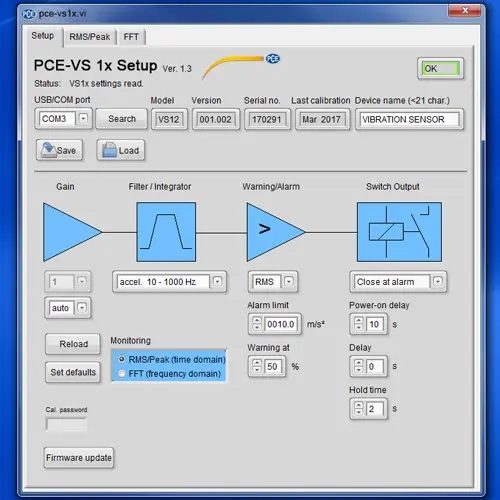

Setup via USB and PC

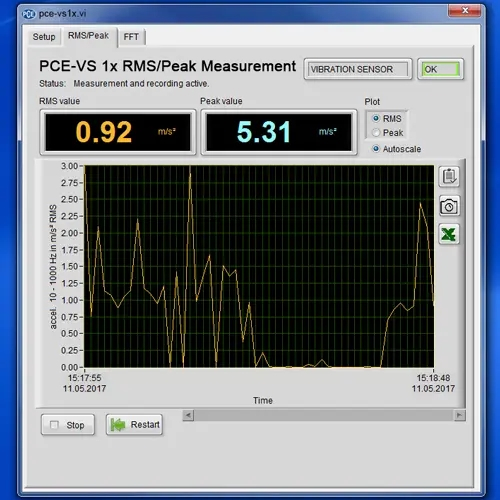

Includes software for detailed vibration analysis

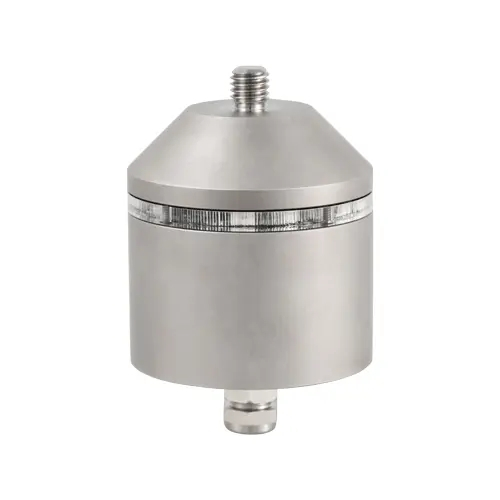

PCE-VS12 is a vibration meter, analyzer or sensor condition monitoring switch used to measure RMS value, peak value and frequency domain (FFT) of vibration velocity or acceleration piezoelectrically. This IP67-rated vibration monitoring switch features an external USB port, 8-pin female connector 711 and programmable high pass and low pass filters.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Measuring range

0.1 - 1000 m/s² acceleration
Frequency-dependent velocity
2 - 1000 or 20 - 10,000 Hz / 360 lines frequency domain

Monitoring values

Peak value of vibration acceleration or vibration velocity
RMS value of vibration acceleration or vibration velocity
Frequency domain (FFT)

High-pass filter

0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration
2 / 5 / 10 / 20 / 50 Hz velocity

Low-pass filter

0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration
1 kHz velocity

FFT limits

10 freely selectable frequency intervals with limit amplitudes

Relay output

PhotoMOS relay SPST Max. 60 V / 0.5 A (AC/DC) Open/close programmable Connection via 8-pin female connector 711

Teach-in function

Button for measuring the switching threshold

Warning/alarm

Interfaces

USB 2.0 full speed for parameterization and measurement
CDC mode / virtual COM port
8-pin female connector 711

External USB port

Yes

Power supply voltage

5 - 30 V DC
5 V DC USB
< 100 mA screw terminals

Ingress protection

IP67 rating

Operating temp. range

-40 - +80 °C / -40 - +176 °F

Approx. weight

125 g / 0.28 lb

Approx. dimensions

50 mm / 1.97"
36 mm / 1.42" height

Mounting

M8 thread pin
8 mm / about 0.32" length
25 mm / about 0.99" coupling surface

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Measuring range

0.1 - 1000 m/s² acceleration
Frequency-dependent velocity
2 - 1000 or 20 - 10,000 Hz / 360 lines frequency domain

Monitoring values

Peak value of vibration acceleration or vibration velocity
RMS value of vibration acceleration or vibration velocity
Frequency domain (FFT)

High-pass filter

0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration
2 / 5 / 10 / 20 / 50 Hz velocity

Low-pass filter

0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration
1 kHz velocity

FFT limits

10 freely selectable frequency intervals with limit amplitudes

Relay output

PhotoMOS relay SPST Max. 60 V / 0.5 A (AC/DC) Open/close programmable Connection via 8-pin female connector 711

Teach-in function

Button for measuring the switching threshold

Warning/alarm

Interfaces

USB 2.0 full speed for parameterization and measurement
CDC mode / virtual COM port
8-pin female connector 711

External USB port

Yes

Power supply voltage

5 - 30 V DC
5 V DC USB
< 100 mA screw terminals

Ingress protection

IP67 rating

Operating temp. range

-40 - +80 °C / -40 - +176 °F

Approx. weight

125 g / 0.28 lb

Approx. dimensions

50 mm / 1.97"
36 mm / 1.42" height

Mounting

M8 thread pin
8 mm / about 0.32" length
25 mm / about 0.99" coupling surface

Note

Note: Please read description carefully. Do not base your order on the picture presented.
