Buy PCE Instruments PCE-VS10, Vibration Switch for RMS and Peak Value

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Version:: Version: Switch for RMS and Peak Value

PCE-VS10 Includes Only:

1 x PCE-VS10 vibration sensor switch
1 x USB cable
1 x PC-compatible software
1 x user manual

Features:

Ideal for machine condition monitoring and quality control applications
Measures RMS and peak value of vibration velocity or acceleration
Piezoelectric accelerometer
IP67 ingress protection rating against water and dust

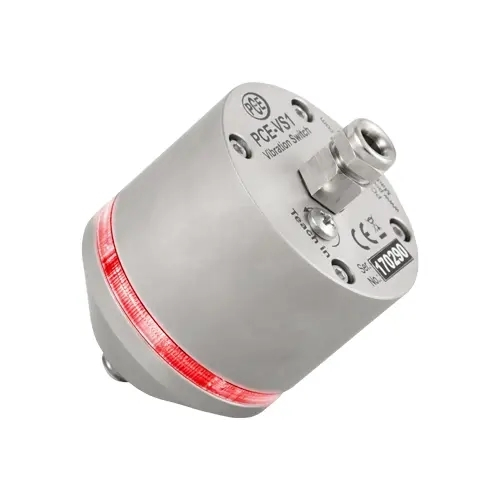

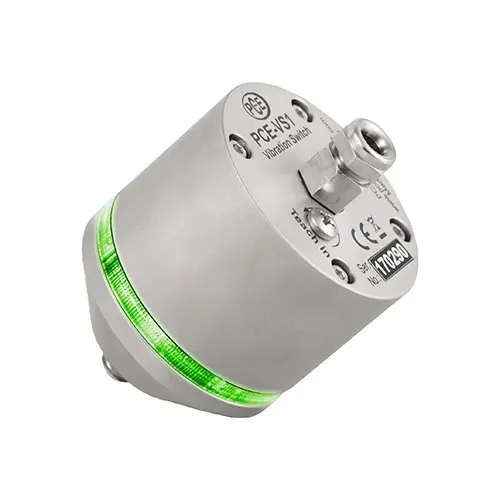

Features a red and green visual warning or alarm
Programmable high pass and low pass filters
Emergency shut-off
Setup via USB and PC

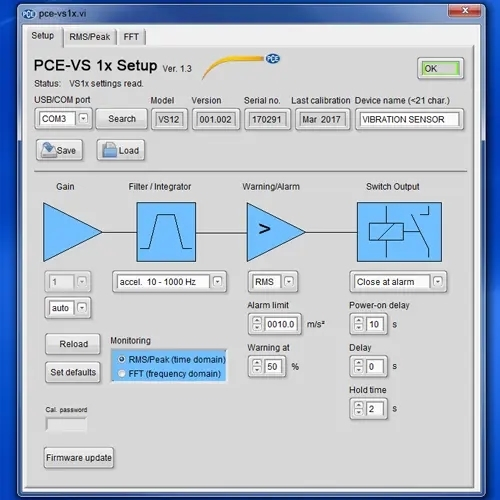

Includes software for detailed vibration analysis

PCE-VS10 is a vibration meter, analyzer or sensor condition monitoring switch used to measure RMS and peak value of vibration velocity or acceleration piezoelectrically. This IP67-rated vibration monitoring switch features a red and green visual warning or alarm with programmable high pass and low pass filters.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Measuring range

0.1 - 1000 m/s² acceleration
Frequency-dependent velocity

Monitoring values

Peak value of vibration acceleration or vibration velocity
RMS value of vibration acceleration or vibration velocity

High-pass filter

0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration
2 / 5 / 10 / 20 / 50 Hz velocity

Low-pass filter

0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration
1 kHz velocity

Relay output

PhotoMOS relay SPST Max. 60 V / 0.5 A (AC/DC) Open/close programmable Connection via screw terminals

Teach-in function

Button for measuring the switching threshold

Warning/alarm

Green and red LEDs

Alarm delay / hold time

0 - 99 s / 0 - 9 s

Interfaces

USB 2.0 full speed for parameterization and measurement
CDC mode / virtual COM port
Micro USB port inside

External USB port

Power supply voltage

5 - 30 V DC
5 V DC USB
< 100 mA screw terminals

Ingress protection

IP67 rating

Operating temp. range

-40 - +80 °C / -40 - +176 °F

Approx. weight

160 g / 0.36 lb

Approx. dimensions

50 mm / 1.97"
52 mm / 2.05" height

Mounting

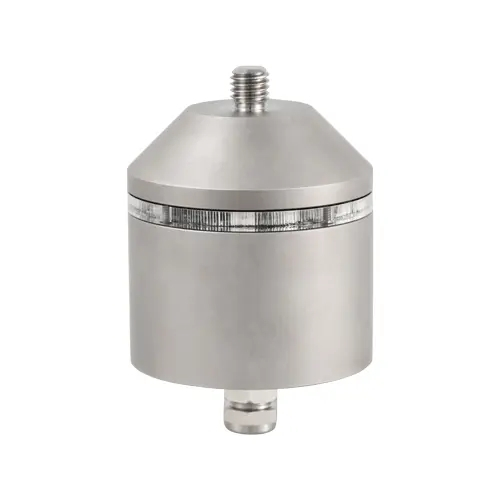

M8 thread pin
8 mm / about 0.32" length
25 mm / about 0.99" coupling surface

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Measuring range

0.1 - 1000 m/s² acceleration
Frequency-dependent velocity

Monitoring values

Peak value of vibration acceleration or vibration velocity
RMS value of vibration acceleration or vibration velocity

High-pass filter

0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration
2 / 5 / 10 / 20 / 50 Hz velocity

Low-pass filter

0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration
1 kHz velocity

Relay output

PhotoMOS relay SPST Max. 60 V / 0.5 A (AC/DC) Open/close programmable Connection via screw terminals

Teach-in function

Button for measuring the switching threshold

Warning/alarm

Green and red LEDs

Alarm delay / hold time

0 - 99 s / 0 - 9 s

Interfaces

USB 2.0 full speed for parameterization and measurement
CDC mode / virtual COM port
Micro USB port inside

External USB port

Power supply voltage

5 - 30 V DC
5 V DC USB
< 100 mA screw terminals

Ingress protection

IP67 rating

Operating temp. range

-40 - +80 °C / -40 - +176 °F

Approx. weight

160 g / 0.36 lb

Approx. dimensions

50 mm / 1.97"
52 mm / 2.05" height

Mounting

M8 thread pin
8 mm / about 0.32" length
25 mm / about 0.99" coupling surface
