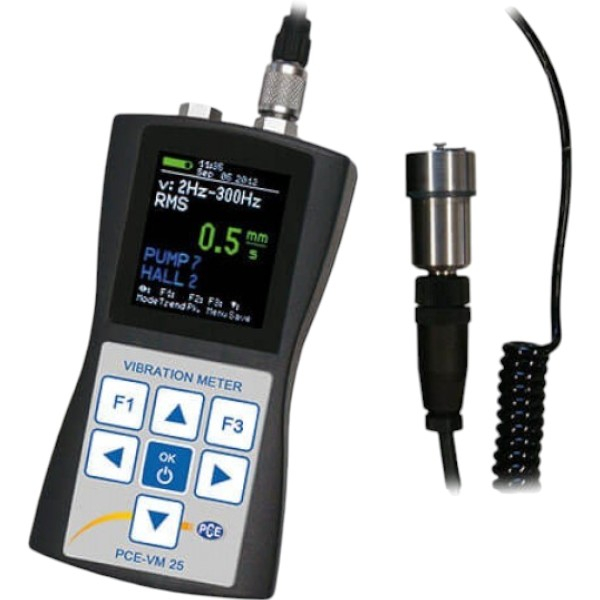

PCE Instruments PCE-VM 25 Vibration Meter with OLED-Color Display

Brand: PCE Instruments

Part #:

PCE-VM 25

Condition:

Brand New

Check availability

Manufacturer warranty

Description

PCE-VM 25 Includes Only:

1 x PCE-VM 25 Vibration Meter
1 x Vibration Meter Sensor with Magnet and Spiral Cable
1 x VMID Measurement Location
1 x USB cable
1 x Head Phone Adapter
1 x Calibration Certificate
1 x Instruction Manual
1 x Plastic case

Features:

Graphic diagram of tendency
Output for headphones
Multiple languages
OLED display
Automatic. recognition of measuring location due to sensor foot
Pocket design

The PCE-VM 25 Vibration Meter is designed for engine monitoring to assure a smooth operation of machines. Due to its simple application, the Vibration Meter can be used for the measurement of a large range of parameters including acceleration, velocity and displacement. The Vibration Meter not only shows the effective value but also the peak value and crest factor. The Vibration Meter delivers detailed information on the current state as well as past history of the measurement values due to a spectral analysis and a tendency prognosis. Measured data can be transferred to a computer via a USB connection in order to evaluate it there in an optionally purchasable software. This allows long-term measurements to be recorded and reviewed in detail. Even if the data is not transferred, the Vibration Meter has enough data storage capacity to save 16,000 measured values internally. There is also the option of purchasing VMID measurement slots.

Check availability

Technical details

Main features

Interface USB
Weight 140g / 0.3 lbs with batteries, without sensors, 53g / 1.8oz
Dimensions 125 mm x 65 mm x 27 mm / 4.9 in x 2.6 in x 1.1 in, Ø 21 mm / 0.8 in, height 34 mm / 1.3 in (without socket)
Output Low Power IEPE
Sensor Cable Spiral Cable, Stretched length approx. 1.6 m / 5.2 ft, Ø 4 mm / 0.15 in
Display OLED Graphic Display; Colored; 128 x 160 pixels
Operation Temperature -20 - +60 °C, <95 % air humidity without condensing, -20 - +80 °C / -4 - 176 °F
Nominal Sensitivity 3.5mV/ms-2
Voltage Supply 3 x LR03 / HR03 / AAA batteries or NiMH batteries, operation time 8 - 12h
Temperature measurement -40 - +125 °C / -40 - 257 °F ±2 K, infrared
Frequency Analysis 125 lines FFT; Acceleration / Speed 7 frequency ranges 2 to 11712 Hz
Vibration acceleration 0.1 - 240 m/s 2 , 0.2 Hz - 10 kHz, 3 Hz - 1 kHz, 1 kHz - 10 kHz
Vibration velocity 0.1 - 1000 mm/s, 2 - 300 Hz, 10 - 1000 Hz
Vibration displacement 0.01 - 60 mm, 2 - 300 Hz
Diagnosis Parameter K(t) for roller bearing 1 - 10 kHz, with data storage for 1600 initiation values (eff. / peak)
Effective Value Measurement Yes
Peak Value measurement Yes
Crest Factor Measurement Yes
Measurement Accuracy (oscillation) ±5%, ±2 digits
Revolution Measurement 1 - 9999 rpm, optical
Output for headphones 3.5mm via adapter VM2xHP, volume adjustable
Data storage for measured value 16000 values, opt. computer software to administer measured data and measurement slots
Piezo System Shear Principle
Sensitivity for Irrelevant Parameters <5%
VMID recognition of measuring slot digital, one-time 16-digit hexa decimal number, read-out via sensor foot, enclosure of stainless steel Ø 25 mm, height 15 mm, 45 g, montage: two-components epoxy adhesive
