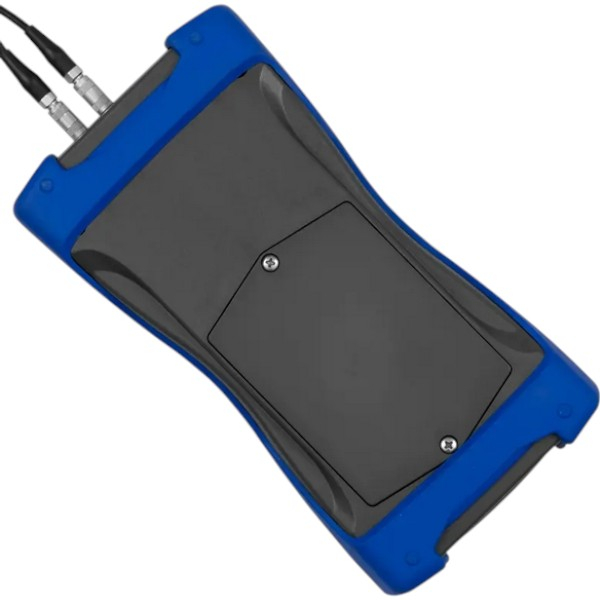

PCE Instruments PCE-TG 300-NO7 Material Thickness Meter
Brand New
Manufacturer warranty Description
PCE-TG 300-NO7 Includes Only:
- 1 x Condition monitoring device PCE-TG 300-NO7
- 1 x Sensor PCE-TG-NO7
- 1 x 100 ml coupling gel
- 1 x Transport case
- 4 x AA batteries
- 1 x User manual
Features:
- Large measuring range
- Battery operation
- Error and voids detection
- Internal measurement data memory
- Print via Bluetooth
The PCE-TG 300-NO7 is a condition monitoring device with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the thickness meter. An angled 90° sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the thickness meter and thus adapted to a wide variety of materials.
The measured values are displayed directly on the easy-to-read TFT color display. Due to the internal memory, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured (only with PCE-TG 300-P5EE sensor).
Technical details
- Weight 375 g / 13.2 oz
- Dimensions 185 x 97 x 40 mm / 7.2 x 3.8 x 1.5"
- Power Supply 4 x AA battery 1.5 V
- Frequency 7 MHz
- Accuracy ±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm)
- Calibration sound velocity calibration zero calibration two-point calibration
- Measuring Range 0.65 - 200 mm / 0.025 - 7.87" (steel)
- Diameter 6 mm / 0.23"
- Units mm / inch
- Display 320 x 240 pixels TFT LCD color display with brightness adjustment
- Resolution 0.1 mm / 0.01 mm / 0.001 mm (adjustable)
- Memory non-volatile memory with 100 data groups with 100 data sets each
- Description for thin-walled or strongly curved pipes
- Storage Conditions -20 - +70 °C / -4 - 158 °F, ≤80 % RH non-condensing
- Operating Conditions 0 - +50 °C / 32 - 122 °F, ≤80 % RH non-condensing
- Data Transfer printing via Bluetooth / USB 2.0
- Operating Time continuous operation 100 h automatic stand-by mode (adjustable) auto power off mode (adjustable)
- Measurable Materials metals plastics ceramics epoxy resin glass and all homogeneous materials
- Minimum diameter of pipes 15 x 2 mm / 0.59 x 0.07"
- Working modes Pulse-echo mode (fault and void detection)
- View Mode Normal Mode, Scan Mode, Difference Mode
