PCE Instruments PCE-T 240-ICA Tachometer with Temperature Measurement
Brand New
Manufacturer warranty Description

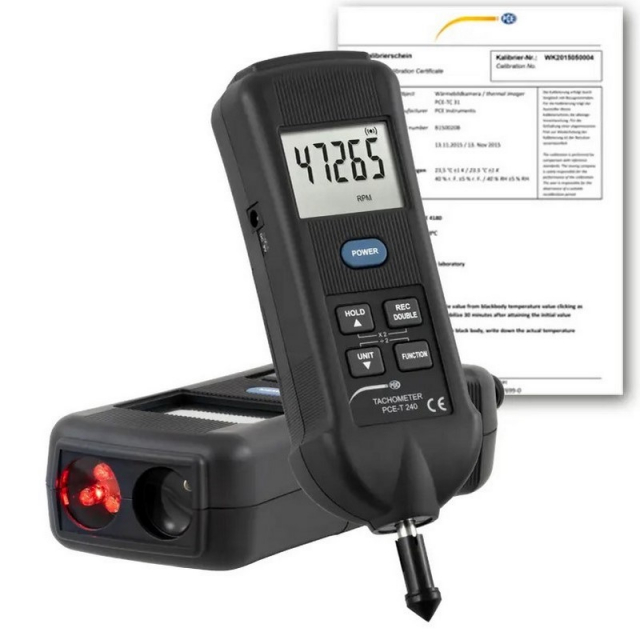

PCE Instruments, PCE-T 240-ICA, Handheld Tachometer incl. ISO Calibration Certificate
PCE-T 240-ICA Includes Only:
- 1 x Handheld Tachometer PCE-T 240
- 1 x Measuring tip (outer cone)
- 1 x Measuring hollow tip (inner cone)
- 1 x Measuring wheel
- 1 x Reflective contact strip (approx. 600 mm)
- 1 x Carrying case
- 4 x 1.5V AA batteries
- 1 x Instruction manual
- 1 x ISO Calibration Certificate
Features:
- Battery and mains power adapter
- Strobe for speed determination
- Contact and optical measurement
- Measuring range 0.5 - 99,999 RPM contact
- Temperature measurement in °C and °F
- Various attachments
Handheld tachometer with temperature measurement / Contact and optical speed measurement / RS232 interface / Battery and mains operation / Automatic switch-off / Strobe Measuring range 5 … 99,999 RPM / Speed measurement / Optional with ISO calibration certificate
The handheld tachometer has a contact speed measurement. The measuring range of the contact speed measurement with the handheld tachometer is 0.5 - 99,999 RPM. In order to transmit the speed to the handheld tachometer, the scope of delivery includes two rubber measuring tips with an inner and an outer cone. In the case of contact measurement with the handheld tachometer, the speed can also be determined in m/min, for example, using the measuring wheel.
In addition to the contact measurement, the speed can also be measured optically with the handheld tachometer. To do this, a piece of reflective tape measuring 1 x 1 cm is glued to the test object. The handheld tachometer can determine the speed through the reflection.
In addition, the speed can be determined from the handheld tachometer using the strobe function. With this function, many flashes follow one after the other from the handheld tachometer. The flash frequency can be doubled or halved for quick setting of the flash frequency on the handheld tachometer. The speed with the stroboscopic function on the handheld tachometer is then determined as soon as the test specimen can be seen continuously and standing upright through the flash.
In addition to measuring the number of revolutions and speed, the temperature can be determined with the handheld tachometer. Any type K thermocouple can be connected for this purpose. If required, a PT1000 resistance temperature sensor can also be connected.
Thanks to the many functions, the handheld tachometer can already be used in many areas. The handheld tachometer is used, for example, to determine the speed of conveyor belts and to determine the rotational speed of ventilation systems.
For more information, please see
Manual
Technical details
- Interface RS232
- Weight 230 g, 0.5 lb (without batteries)
- Dimensions 207 x 67 x 39 mm, 8.15 x 2.63 x 15.3 inch
- Accuracy ±(0.05 % of reading + 1 digit), ±(0.05% of reading + 1 digit), ±(0.1% of reading + 2 digits), ±(0.4 % of reading +0.5 °C), ±(0.4 % of reading +1 °C), ±(0.4 % of reading +1 °F), ±(0.4 % of reading +1.8 °F), ±1.2 °C, ± 2.2 °F
- Measuring Range 5 - 99,999 RPM, 0.5 - 19,999 RPM, 0.05 - 1,999.9 m/min, 0.2 - 6,561.4 ft/min, 2.0 - 78736.2 in/min, 100 - 99,990 RPM/FPM, -50.0 - 1300.0 °C, -100.0 - -50.1 °C, -58.0 - 2372.0 °F, -148.0 - -58.1 - °F, -10.0 - 70.0 °C, 14.0 - 158.0 °F
- Certification Yes
- Display LCD display, 43 x 33 mm, 5 digits
- Power Consumption DC 42 mA
- Resolution 0.1 °C, 0.1 °F, 0.1 °C, 0.1 °F, 0.5 RPM (< 1,000 RPM) 1 RPM (1,000 RPM), 0.5 RPM (<1,000 RPM) 1 RPM (1,000 RPM), 0.05 m/min (<100 m/min) 0.1 m/min (100 m/min), 0.1 ft/min (<1,000 ft/min) 1 ft/min (1,000 ft/min), 0.1 in/min (<1,000 in/min) 1 in/min (1,000 in/min), 0.1 RPM (<1,000 PRM) 1 RPM (1,000 - 30,000 RPM) 5 RPM (30,000 - 50,000 RPM) 10 RPM (50,000 - 99,990 RPM)
- Storage largest and smallest measured value
- LED three red LEDs
- Automatic Shutdown After 10 minutes of inactivity
- Detection distance 50 - 150 mm, 2 - 6 inch (typical) maximum 300 mm, 12 inch (depending on ambient lighting)
- Environmental Conditions 0 - 50 °C, 32 - 122 °F, <80 5 RH, (non-condensing); magnetic field <3 V/M, <30 MHz
- Power supply (battery) 4 x 1.5V AA batteries
- Power supply (mains power) 9 V DC, 100 mA
