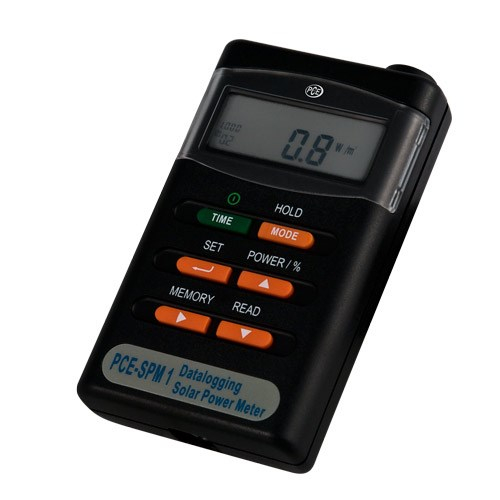

PCE Instruments PCE-SPM 1 Solar Mearsuing Device, 0 to 2000 W
Brand:
PCE Instruments
Part #:
PCE-SPM 1
Condition:
Brand New
Brand New $350.80 /Each
$459.00 You save $108.20 24%
Manufacturer warranty Description
PCE-SPM 1 Includes Only:
- 1 x PCE-SPM 1 solar measuring device with an internal sensor
- 4 x AAA Li-ion batteries
- 1 x CD-ROM with Windows-compatible software
- 1 x RS-232 cable
- 1 x Carrying case
- 1 x User manual
Features:
- Minimum, maximum, and data hold functions
- - Built-in data logging capability allows for long-term recording of measurements over time
- - Powered by 4 x AAA Li-ion batteries for approx. 16 days of continuous use at full charge
- - RS-232 data port for downloading measurement data to PC
- - Includes CD-ROM with Windows-compatible software for detailed data analysis

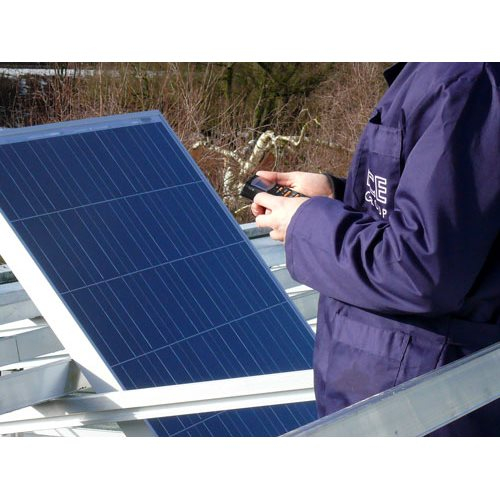

- - Ideal for solar panel site surveying, installation, inspection, and monitoring as well as for solar energy research and product development
PCE-SPM 1 is a photovoltaic (PV) light meter used to measure solar radiation, solar energy, or solar power. The meter's easy-to-read 4-digit LCD screen clearly displays Ptot in W/m2 or BTU/ (ft2 x h), while the device's auto data memory stores up to 43, 000 data sets.
Technical details
Main features
- Weight 158 g / < 1 lb
- Dimensions 111 x 64 x 34 mm or 4.37 x 2.52 x 1.34 in
- Power Supply 4 x AAA Li-ion batteries (approx. 16 days of continuous use at full charge)
- Accuracy ±10 W/m2 or ±3 BTU/ (ft2 x h) or ±5%; whichever is greatest in sunlight Additional temperature induced error ±0.38W/m2/C or ±0.12 BTU/ (ft2 x h) /°C from 25°C / 77°F
- Measurement Range 0 - 2000 W/m2 or 0 - 634 BTU/ (ft2 x h)
- Resolution 0.1 W/m2 or 0.1 BTU/ (ft2 x h)
- Internal Memory Auto data memory capacity: 43, 000 sets Manual data memory capacity: 99 sets
- Sampling Rate 4 times per second
- Operating Conditions 0 - 50°C / 32 - 122°F; < 80% RH
- Drift <± 2% per year
- Detector 1 x silicon photovoltaic sensor
- Angular Accuracy Cosine corrected < 5% for angles < 60°
