PCE Instruments PCE-SLT-TRM-24V Sound Sensor with Analogue Output
Brand:
PCE Instruments
Part #:
PCE-SLT-TRM-24V
Condition:
Brand New
Brand NewChoose Power Supply
$394.50 /Kit
$517.00 You save $122.50 24%
Manufacturer warranty Description
PCE-SLT-TRM-24V Includes Only:
- 1 x Decibel Meter PCE-SLT-TRM-24V

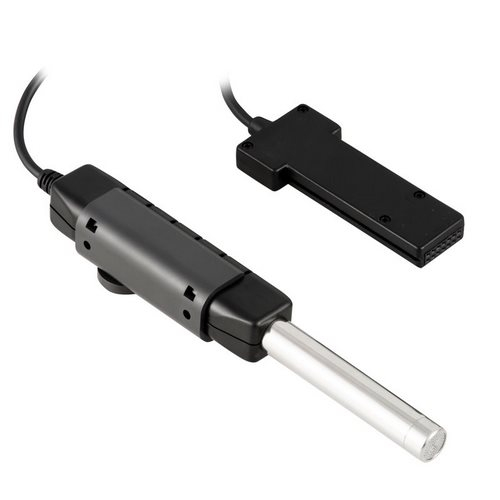

- 1 x sound sensor on 1.5 m cable

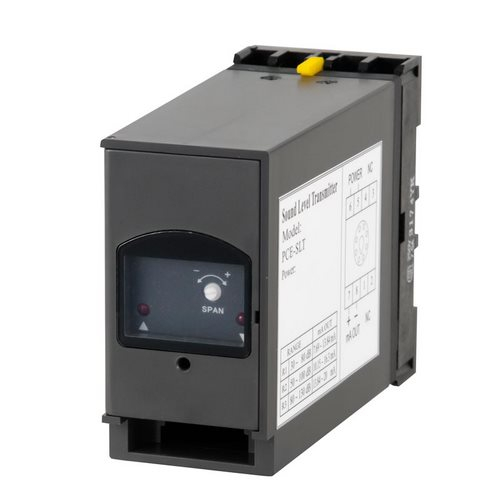

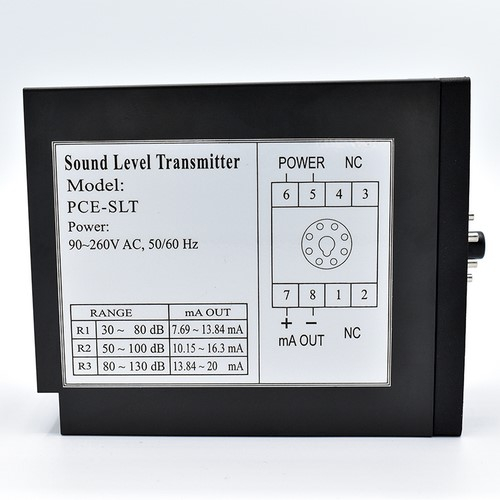

- 1 x sound transmitter
- 1 x sensor bracket for screwing on
- 1 x operating instructions
Features:
- IP 54 ingress protection rating on the transmitter offers limited protection against dust ingress (no harmful deposit) and protection against splashed water from any direction

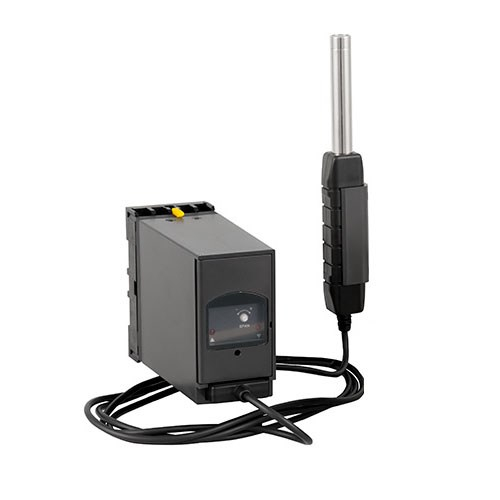

The sound sensor is a class II (type 2) sound level, sound pressure level (SPL), a decibel (dB), or noise meter with audible or visual alarm output capability. The sound sensor is used for long-term, continuous monitoring of occupational noise exposure limits in industrial environments such as foundries, factories, and manufacturing production floors. The measuring device consists of a wall-mountable acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter.
Technical details
Main features
- Power Supply 24 V DC, via transmitter
- Standard IEC 61 672 (Class II)
- Accuracy ±1.5 dB
- Output 4 - 20 mA
- Calibration Adjustable by set screw

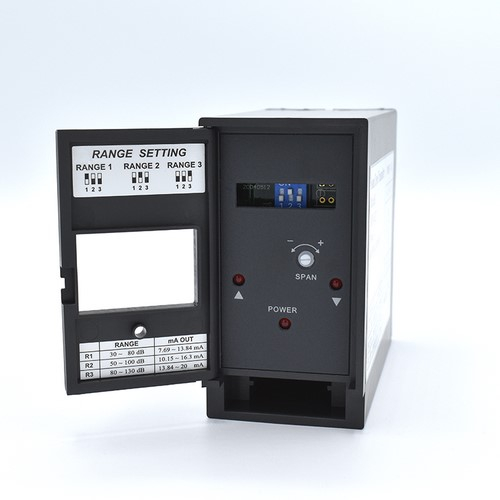

- Measuring Range 30 - 130 dB in 3 ranges: I. 30 - 80 dB (A) II. 50 - 100 dB (A) III. 80 - 130 dB (A)
- Protection Class IP 54 ingress protection rating
- Resolution 0.1 dB
- Housing ABS plastic
- Microphone 1/2" precision electret
- Operating Conditions 0 - +50 °C / +32 - +122 °F, max. 85 % RH
- Frequency weighting A
- Cable length (sensor to transmitter) 1.5 m / 4.92'
