PCE Instruments PCE-SLT Sound Sensor, 30 to 130 dBA
Brand:
PCE Instruments
Part #:
PCE-SLT
Condition:
Brand New
Brand New $652.00 /Kit
$870.00 You save $218.00 25%
Manufacturer warranty Description
PCE-SLT Includes Only:

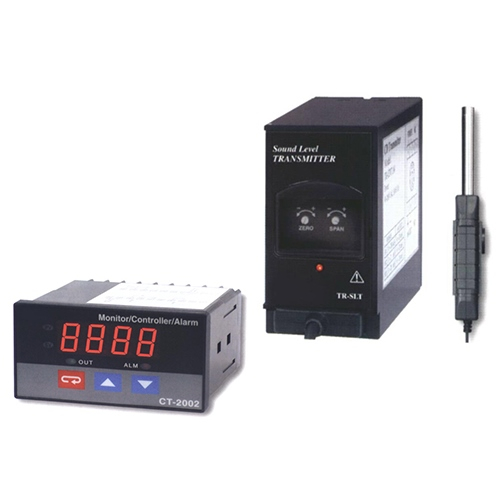

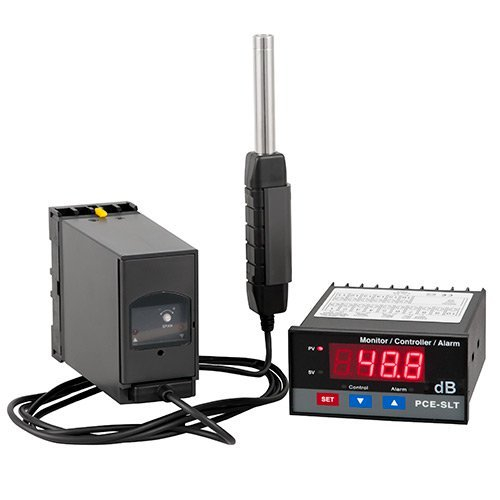

- 1 x Sound sensor PCE-SLT SPL (consisting of 1 x acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter)
- 1 x Wall-mounting bracket for the sensor
- 1 x Digital indicator
- 1 x User manual
Features:
- IP 54 ingress protection rating on the transmitter offers limited protection against dust ingress (no harmful deposit) and protection against splashed water from any direction
- IP 65 ingress protection rating on the digital indicator offers total protection against dust ingress and protection against low-pressure water jets from any direction. Limited ingress permitted.
The sound sensor is a class II (type 2) sound level, sound pressure level (SPL), a decibel (dB), or noise meter with audible or visual alarm output capability. The sound sensor is used for long-term, continuous monitoring of occupational noise exposure limits in industrial environments such as foundries, factories, and manufacturing production floors. The measuring device consists of a wall-mountable acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter.
Technical details
Main features
- Power 90 - 260 AC V / 50 - 60 Hz
- Weight Approx. 250 g / 0.56 lb
- Power Supply via transmitter, 90 - 260 AC V
- Standard IEC 61 672 (Class II)
- Accuracy ±1.5 dB
- Output 4 - 20-mA
- Calibration Adjustable by a set screw

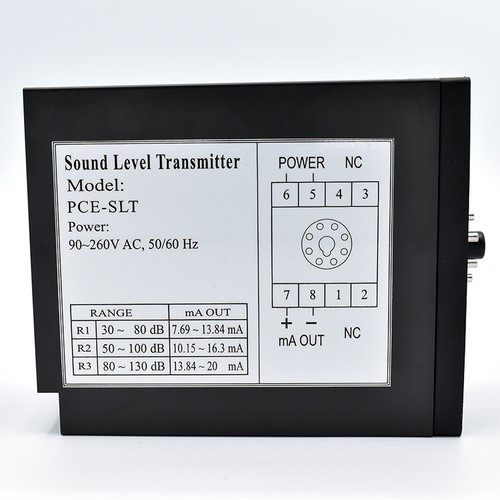

- Measuring Range 30 - 130 dB in 3 ranges: I. 30 - 80 dB (A) II. 50 - 100 dB (A) III. 80 - 130 dB (A)
- Protection Class IP 54 ingress protection rating, IP 65 ingress protection rating
- Resolution 0.1 dB
- Indicator - 1999 - 9999 (1 - 3 decimals, according to the measurement value / chosen by the user)
- Housing ABS plastic
- Alarm Output Relay output: 5 A / 240V AC
- Microphone 1/2" precision electret
- Operating Conditions 0 - 50°C / 32 - 122°F, max. 85% RH, 0 - 50°C / 32 - 122°F, max. 85 % RH, 0 -+50°C / 32 - 122°F, max. 85% RH
- Frequency weighting A
- Cable length (sensor to transmitter) 1.5 m / 4.92'
- Regulation output 3 points (Com, NO, NC)
- Dimensions / Switchboard according to DIN 92 (+ 0.8) mm x 45 (+ 0.5) mm
- Transmitter Input Signal 4 - 20-mA
- Programming Data (Decimals, Limit Value) saved in the unit
