PCE Instruments PCE-PDA 1000L Differential Pressure Gauge, 2000 kPa
Brand New
Manufacturer warranty Description
PCE Instruments, PCE-PDA 1000L, Differential Pressure Gauge, -100 to 2000 kPa Relative
PCE-PDA 1000L Includes Only:
- 1 x Pressure gauge PCE-PDA 1000L
- 2 x 1.2V NiMh batteries
- 1 x USB power adapter
- 1 x Micro USB cable
- 1 x User manual
Features:
Graphic LCD USB interface Data logger Relative pressure and vacuum measurementAdjustable measuring unitsMax / Min hold functions Measured value smoothing Integrated temperature measurement

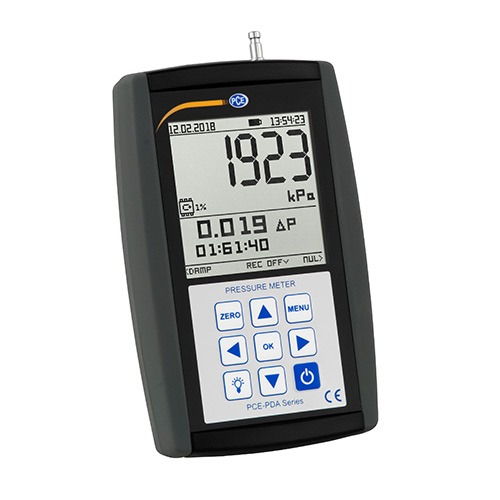

The relative pressure gauge PCE-PDA 1000L measures the relative pressure on machines and systems. The relative pressure is measured by this pressure gauge in the range between -100 - 2000 kPa. The relative pressure gauge has a quick coupling connection with which the air pressure or water pressure can be directly applied to the device. In addition to the measurement in kPa. The large LCD on the relative pressure gauge continuously visualizes the measured values. It is also possible to freeze the maximum or minimum measured value in the display via the Max-Min-Hold function.
The PCE-PDA 1000L relative pressure gauge has a data logger. The memory has 1024 memory locations. Recordings of up to 255h can be stored in each memory location. The pressure gauge for relative pressure is supplied by 2 AA batteries. Here the user can either use batteries or rechargeable batteries. In battery operation, the relative pressure gauge PCE-PDA 1000L can be charged via a micro USB port.
Technical details
- Weight Approx. 285 g / < 1 lb
- Dimensions 145 x 85 x 35 mm / 5.71 x 3.35 x 1.38 in
- Power Supply 2 x 1.2V NiMh batteries 5V / 500-mA USB power adapter
- Accuracy <± 0.5% of the measuring range
- Current Consumption 50-mA (with backlight) 10-mA (without backlight)
- Nominal Pressure 2000 kPa
- Display Graphic LCD with backlight
- Resolution 0.01 kPa, 0.1 kPa
- Operating Temperature 0 - 50°C / 32 - 122°F
- Storage Temperature 10 - 55°C / 50 - 131°F
- Media Liquids Air Non-explosive gasses
- Medium For air and non-explosive gases
- Measuring Rate 10 Hz
- Burst Pressure 3000 kPa
- Ingress Protection (IP) rating IP41
- Principle Relative pressure
- Overpressure 2000 kPa
- Data Logger 1024 memory slots 1 s - 255 h recording time per memory location 1 s - 24 h recording interval
- Pressure Connections 5 mm (0.2 in) nipple for quick connection
- Zero Correction Yes, with a zero key
- Averaging Yes, between 0.1 - 9.9 s
- Pressure Measuring Range -100 - 2000 kPa relative
- Measurement Units (Adjustable) Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm2, mm H2O, cm H2O, in H2O, mmHg, inHg, Torr, PSI, PSF
- Max, Min and hold Functions Yes
