PCE Instruments PCE-PA6000 Power Quality Analyzer, Interface RS-232
Brand New
Manufacturer warranty Description
PCE-PA6000 Includes Only:
- 1 x PCE-PA6000 power analyzer
- 1 x Set of test cables 1 x RS-232 cable
- 6 x Batteries
- 1 x User's manual
Features:
- Multimeter function
- Measurement of the direct current connecting a sensor head or current clamp
- Measures effective and apparent power
- Measures power factor
- Measures energy consumption (kWh)
- Data hold / Peak hold
- Function hold / Alarm function High / Low
- Interface RS-232
- Powered by mains adaptor or batteries

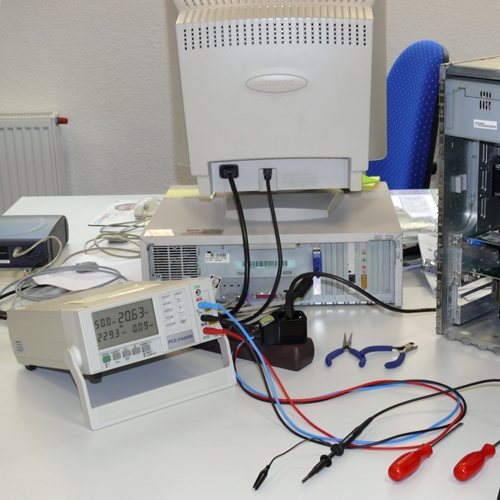

The PCE-PA6000 power analyzer is a tabletop device for measuring effective power, apparent power, power factor, energy consumption, current, continuous voltage, resistance, and frequency. The power analyzer also offers the possibility to connect industrial current converters with a transmission relation of 100/5A or 1000/5A. Its large 93 x 52mm LCD is easy to read and provides a variety of results, including Watts, cos φ, ACV, and ACA. Measurement of current and power can be done directly with test cables that come with the device or indirectly using the clamps. The device has an RS-232 interface, and software to analyze results and transfer data to a computer. This makes it the ideal device for any workshop or for measuring power to determine faults in devices.
Technical details
- Power 6 AA batteries or mains adaptor
- Weight 1, 600 g / 56.4 oz
- Dimensions 280 x 210 x 90 mm / 11 x 8.2 x 3.5 in
- Frequency 10.0 to 999Hz; 0.1Hz; 1% +1 digit
- Function Measurement range; Accuracy; Resolution
- Display 93 x 52mm multi functional LCD
- Operating Conditions max. 80% r.h. / 0 to 50°C / 32 to 122°F
- Ohms 1 Ω to 19.99kΩ; 1 / 10 Ω; ±1% +1 digit
- Measurement of Real Power (AC, Real Value of Power), Direct Measurement 1 W - 6 kW; 1 W; ±1.5 % + 5 dgt.
- Measurement of Real Power (AC, Real Value of Power), With Adaptor Ext. or Current Converter 1 W - 999.9 kW; 1 W; ±1.5 % + 5 dgt.
- Measurement of Apparent Power (AC) 0.01VA to 9.999kVA; 0.01VA; ±2% +2 digit
- Power Factor (Cos Φ) 0.00 to 1.00; 0.01; ±1.5% +2 digit
- Kwh Counter 0.001Wh to 9, 999kWh; 0.001Wh; ±1% +1 digit
- ACV / DCV 0.1V to 600V; 0.1 / 1V; ±1% +1 digit (101 - 600V)
- AC A Eff/Rms DC A Eff/Rms direct maximum 10A; 10mA, with induction head max. 1, 000A;1A; ±1% +3 digit
- Aca with Clamps up to 2, 000A (depending on clamps)
