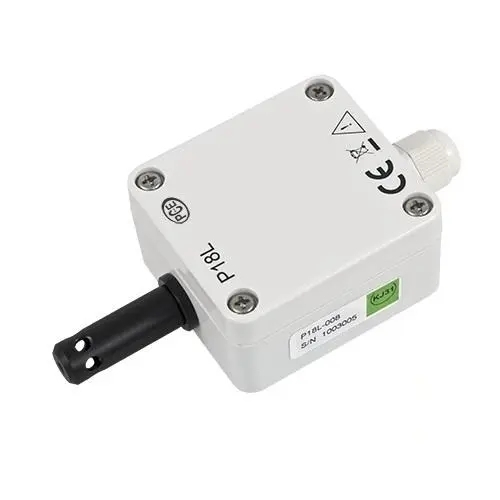

PCE Instruments PCE-P18L Relative Humidity Meter
Brand New
Manufacturer warranty Description
Features:
- Sensor for temperature and humidity
- 4 - 20 mA output
- Easy wall mounting
- For permanent monitoring
- Small size
The relative humidity meter was developed and constructed for the permanent monitoring of temperature or humidity. The compact dimensions of the relative humidity meter are the characteristics of this instrument. The measurement of the temperature and humidity is via a semiconductor component. Internally, the physical quantities to be measured are converted to a 4 - 20 mA standard signal. The power of this measuring instrument is connected to a DC voltage in a current loop and is thus ideally suited for displays with a transmitter power supply. But it can also be connected to the paperless recorder for long-term monitoring of environmental conditions.
Technical details
- Weight 125 g
- Accuracy ± 2 % (in the range 10% - . 90% RH) ± 3 % (remaining range), ± 0.5 % of measuring range
- Mounting Wall mounting
- Measuring Range 0 - 100 % RH, - 20 - 60 °C
- Supply Voltage 19 V - 30 V DC
- Ambient Temperature - 30 °C - 85 °C
- Hysteresis ± 1 % RH
- Performance < 1.5 W
- Dimensions (W x H x D) 35 x 58 x 118 mm
- Output Current 4 - 20 mA
- Temperature Effect ± 25 % / 10 °C
- Degree of protection IP 65
- max. humidity ≤ 95 % RH
- Max. connectable resistor at the output ≤ 500 Ω
- Setting the output size via DIP - switch
- Preheating 15 minutes
