Buy PCE Instruments PCE-MND 10, Noise Dosimeter

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

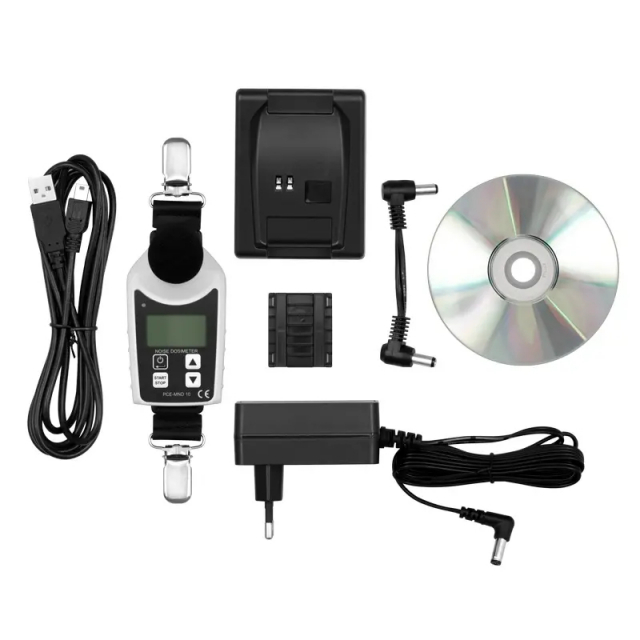

PCE-MND 10 Includes Only:

1 x Decibel meter (badge type) PCE-MND 10
1 x USB cable
1 x Charging station with power adapter
1 x Supply bridge
1 x Mounting bridge
1 x Carrying case
1 x Instruction manual

Features:

Frequency weighting A, B and Z
Battery life of >15 hours
Software for setting the parameters
Measuring range 70 ... 140 dB
IEC 61252:2002, ANSI S1.25-1991
Optional with ISO calibration certificate

Decibel meter (badge type) according to IEC 61252:2002 / Measuring range 70 ... 140 dB / Crocodile clips / For use in occupational safety / Battery life >15 hours / USB interface / Key lock / Frequency weighting A, B and Z / Optional with ISO calibration certificate

The decibel meter (badge type) was specially developed for measuring noise exposure in workplaces and complies with the IEC 61252:2002 standard. With a measuring range of 70 … 140 dB and a frequency weighting of A, B and Z, the noise dose meter is ideal for this. The time weighting on the noise dose meter can be selected between fast, slow and impulse. With the built-in 470 mAh battery, the noise dose meter has a runtime of >15 hours.

Up to three virtual noise dose meters can be set in a decibel meter (badge type). This has the advantage that up to three measurement standards can measure simultaneously. The display of the noise dose meter shows up to 14 measurement windows that can be set individually.

The data transfer from the decibel meter (badge type) to a PC takes place directly via the charging station. The recorded measurement data can be read out and analyzed with the software for the noise dose meter. In addition, all settings for the noise dose meter can be made via the software. Another special feature of the noise dose meter is that the charging stations can be coupled with each other. This has the advantage that several noise dose meters can be charged via one power pack. Up to four noise dose meters can be charged simultaneously per power supply.

For optimal support and positioning, the decibel meter (badge type) is attached to the work clothing of the respective employee with two crocodile clips. The distance between hearing and the noise dose meter should be between 10 and 15 cm (3.9 and 5.9").

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Measuring range

70 ... 140 dB (A, C)
90 ... 140 dB (Z)

Measuring range (peak value)

103 ... 143 dB PEAK

Resolution

0.1 dB

Accuracy

class 2

Frequency range

31.5 Hz ... 8 kHz

Frequency weightings

A, C and Z

Time weighting

fast, slow, impulse

Adjustable level increase

3, 4, 5, 6 dB

Threshold adjustment range

70 ... 90 dB

Threshold resolution

1 dB

Adjustment range of the criterion level

70 ... 90 dB

Resolution of the criterion level

1 dB

Display if the ambient condition is too loud

>115 dB

Memory

30 measurement runs with total
6101 measuring points

Timer

16 timers for an automatic
data logging and 99 timers

Warm-up time

10 seconds after power on

Microphone

1/2 inch electret condenser

Display

128 x 64 pixel LC display

For applications according to the standard

IEC 61252:2002, ANSI S1.25-1991

Number of virtual dosimeters

Dosimeter standards

OSHA-80, OSHA-90, MSHA-80, MSHA-90, DOD,
ACGIH, ISO-85, ISO-90, NR-15, NHO-01
In addition, up to 9 individual
standards can be stored

Measurement parameters for all

DOSE (Dose), PDOSE (Pdos), TWA (Twa),

virtual dosimeter

PTWA (PTwa), LAVG (Lavg), LEPd (Lepd),
PLEPd (PLepd), Exceed time
(Las>105 or Las >115), LEQ
(Laeq, Lceq, Lzeq), SEL (LaE, LCE or LZE),
SEpa2h (Ea, Ec, Ez), PEAK (Pka, Pkc or Pkz),
LEX8H (Lex8h), PLEX8H (PLex8h),
EXPHrs (Exph), EXPsec (Exps), NEN

Additional measurement parameters

MAX/MIN, L05, L10, L50,

for the first virtual dosimeter

L90 and L95 at a 20 ms interval
and a difference of 0.1 dB,
LAEQ05, LAEQ10, LAEQ50, LAEQ90,
LAEQ95 at a 1 s interval
and a difference of 0.1 dB

Interface

USB interface on the charging station

Power supply (battery)

3.7 V, 470 mAh, lithium polymer battery

Power supply (mains adapter)

primary: 100 ... 240 V AC, 50 ... 60 Hz, 0.7 A
secondary: 9 V DC, 2 A

Operating time

>15 hours at 23 °C / 73 °F

Operating conditions

0 ... 50 °C (32 ... 122 °F), 10 ... 95 % RH,
non-condensing

Storage conditions

-10 ... +60 °C (14 ... 140 °F), 10 ... 75 % RH,
non-condensing

Dimensions

84 x 49 x 55 mm / 3.3 x 1.9 x 2.2 inch

Weight

77 g / 2.7 oz

Product Details

Measuring range

70 ... 140 dB (A, C)
90 ... 140 dB (Z)

Measuring range (peak value)

103 ... 143 dB PEAK

Resolution

0.1 dB

Accuracy

class 2

Frequency range

31.5 Hz ... 8 kHz

Frequency weightings

A, C and Z

Time weighting

fast, slow, impulse

Adjustable level increase

3, 4, 5, 6 dB

Threshold adjustment range

70 ... 90 dB

Threshold resolution

1 dB

Adjustment range of the criterion level

70 ... 90 dB

Resolution of the criterion level

1 dB

Display if the ambient condition is too loud

>115 dB

Memory

30 measurement runs with total
6101 measuring points

Timer

16 timers for an automatic
data logging and 99 timers

Warm-up time

10 seconds after power on

Microphone

1/2 inch electret condenser

Display

128 x 64 pixel LC display

For applications according to the standard

IEC 61252:2002, ANSI S1.25-1991

Number of virtual dosimeters

Dosimeter standards

OSHA-80, OSHA-90, MSHA-80, MSHA-90, DOD,
ACGIH, ISO-85, ISO-90, NR-15, NHO-01
In addition, up to 9 individual
standards can be stored

Measurement parameters for all

DOSE (Dose), PDOSE (Pdos), TWA (Twa),

virtual dosimeter

PTWA (PTwa), LAVG (Lavg), LEPd (Lepd),
PLEPd (PLepd), Exceed time
(Las>105 or Las >115), LEQ
(Laeq, Lceq, Lzeq), SEL (LaE, LCE or LZE),
SEpa2h (Ea, Ec, Ez), PEAK (Pka, Pkc or Pkz),
LEX8H (Lex8h), PLEX8H (PLex8h),
EXPHrs (Exph), EXPsec (Exps), NEN

Additional measurement parameters

MAX/MIN, L05, L10, L50,

for the first virtual dosimeter

L90 and L95 at a 20 ms interval
and a difference of 0.1 dB,
LAEQ05, LAEQ10, LAEQ50, LAEQ90,
LAEQ95 at a 1 s interval
and a difference of 0.1 dB

Interface

USB interface on the charging station

Power supply (battery)

3.7 V, 470 mAh, lithium polymer battery

Power supply (mains adapter)

primary: 100 ... 240 V AC, 50 ... 60 Hz, 0.7 A
secondary: 9 V DC, 2 A

Operating time

>15 hours at 23 °C / 73 °F

Operating conditions

0 ... 50 °C (32 ... 122 °F), 10 ... 95 % RH,
non-condensing

Storage conditions

-10 ... +60 °C (14 ... 140 °F), 10 ... 75 % RH,
non-condensing

Dimensions

84 x 49 x 55 mm / 3.3 x 1.9 x 2.2 inch

Weight

77 g / 2.7 oz

Note

Note: Please read description carefully. Do not base your order on the picture presented.
