PCE Instruments PCE-MFM 4000-ICA Radioactivity Meter

PCE Instruments, PCE-MFM 4000-ICA, Radioactivity Meter incl. ISO Calibration Certificate

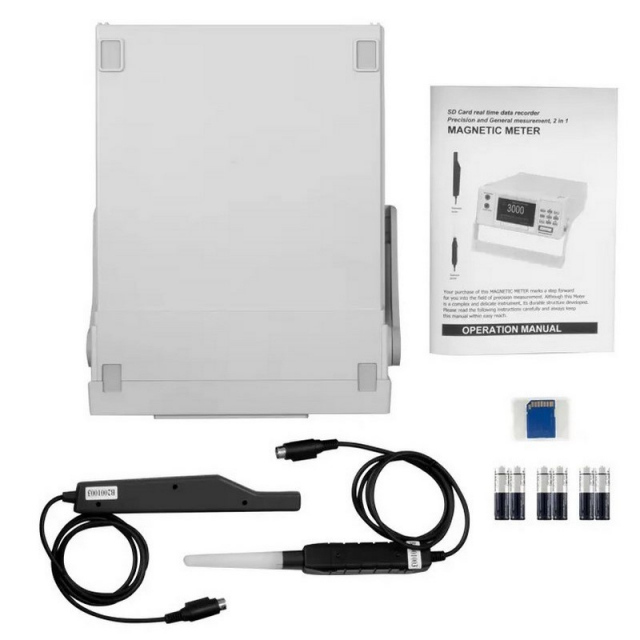

PCE-MFM 4000-ICA Includes Only:

• 1 x Radioactivity Meter PCE-MFM 4000
• 1 x Standard Sensor Range: 0-3000 milli-Tesla (0-30,000 Gauss)
• 1 x Precision Sensor Range: 0-300 micro-Tesla (0-3000 milli-Gauss)
• 1 x SD memory card
• 6 x 1.5V AA batteries
• 1 x Instruction manual

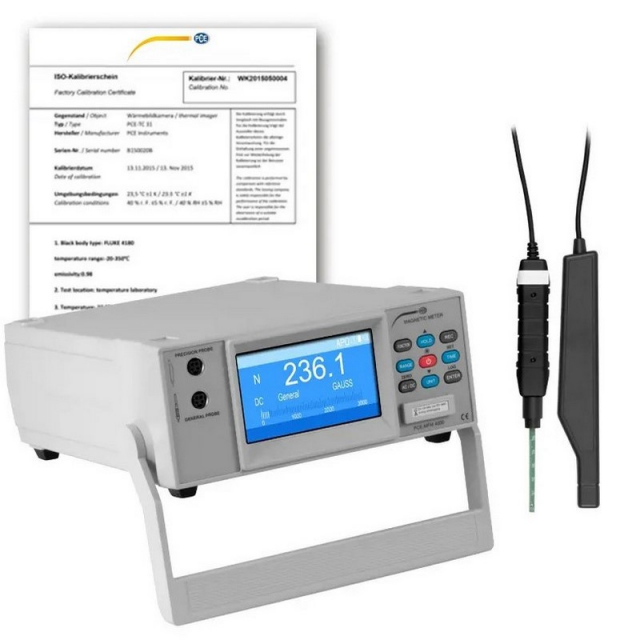

• 1 x ISO calibration certificate

Features:

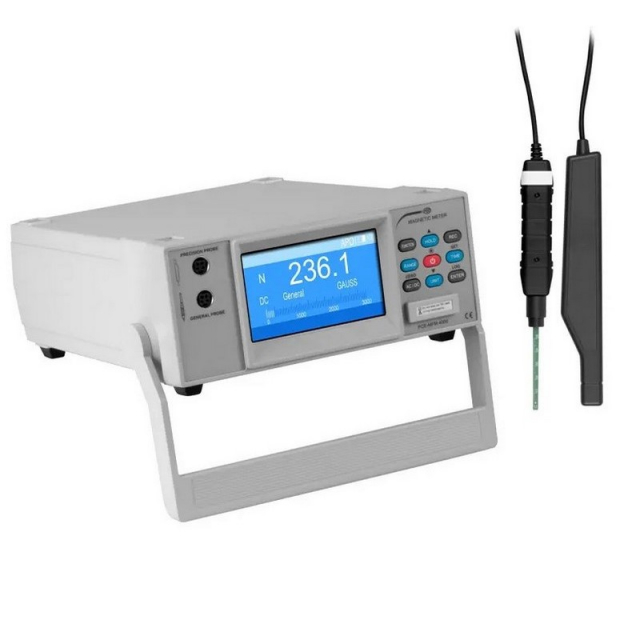

• Tabletop device with 2 sensors:
• General Probe Range: 0-3000 milli-Tesla (0-30,000 Gauss)
• Precision Probe Range: 0-300 micro-Tesla (0-3000 milli-Gauss)
• For static and changing magnetic fields

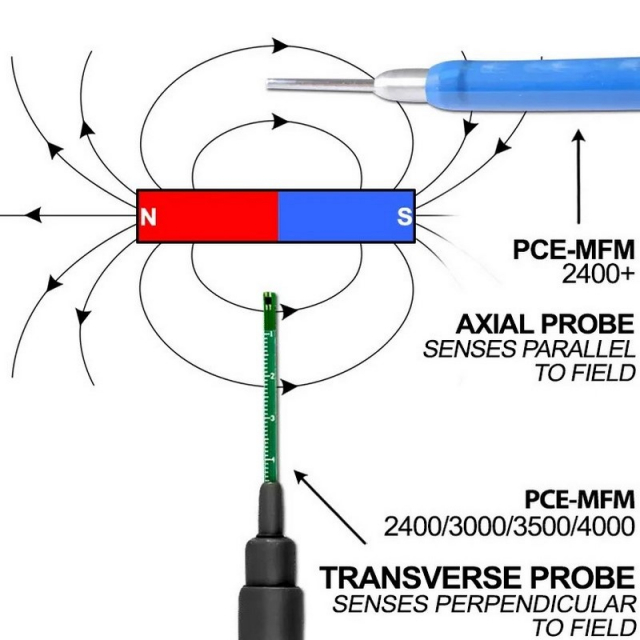

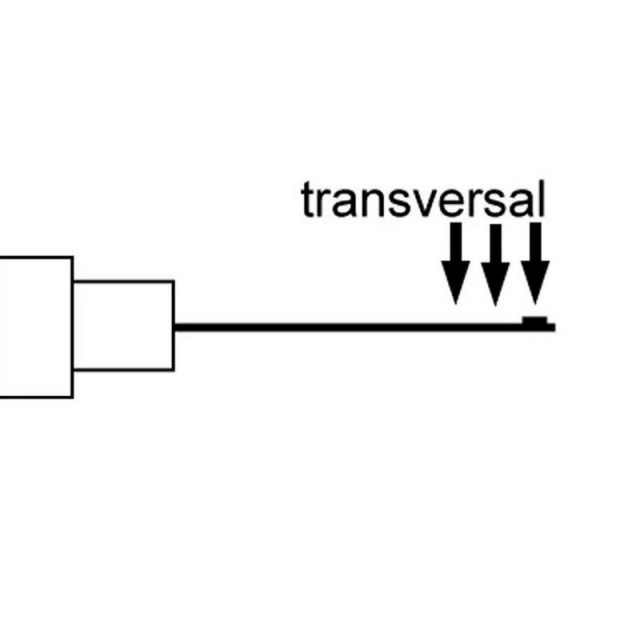

• Highly accurate Transverse Hall sensor
• Different units selectable (mG / µT)
• Data storage on SD memory card
• Automatic shutdown
• Serial interface
• Max.- min.- hold function

Radioactivity Meter for AC and DC magnetic fields / Precision and standard sensor / LCD display / SD data logger / Serial interface / Tabletop device

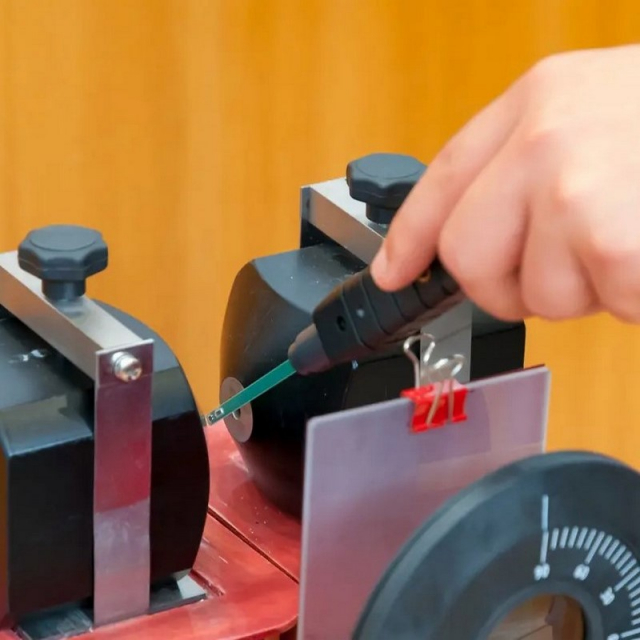

The radioactivity meter is used in the laboratory and quality assurance to measure the strength of magnetic fields. The radioactivity meter is delivered with two different sensors. There is a magnetic field sensor for general measurements in the Gauss and milli-Tesla range, as well as a precision sensor for measurements in the milli Gauss and micro-Tesla range. The radioactivity meter sensors have automatic temperature compensation. The radioactivity meter can be used for measurements of DC and AC magnetic fields. The radioactivity meter shows the polarity of the DC magnetic field on the display next to the measured value. This precise radioactivity meter can be connected to a PC via serial interface for measurement value analysis.

The radioactivity meter also has a data logging function. The radioactivity meter is able to save the measured values on an SD memory card at a preset interval during the measurement. In addition to interval storage, up to 99 individual measured values can be stored in the memory at the push of a button. The measurement data are stored by the radioactivity meter on the SD card in Excel format. This has the advantage that no additional software has to be used for the radioactivity meter.

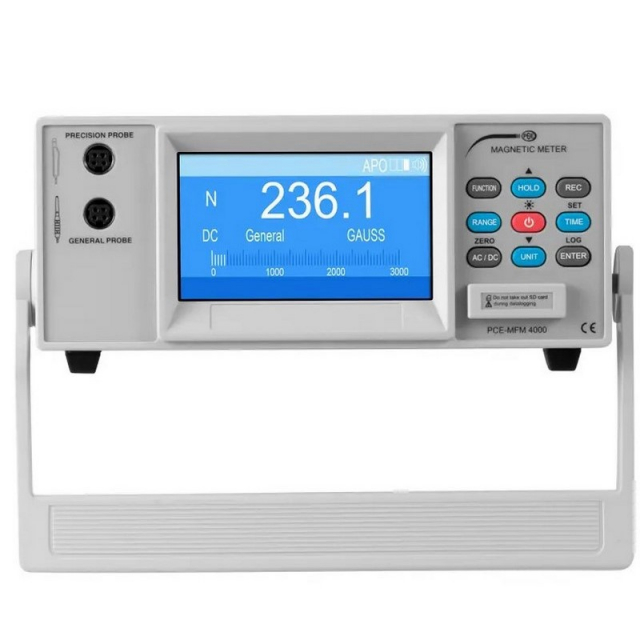

The radioactivity meter is supplied as a table device and is particularly suitable for stationary measurements in QA, the test laboratory or also in research and. The bright display of the radioactivity meter is easy to read at all times and shows all the necessary information about the magnetic field strength. The radioactivity meter also has an automatic switch-off. The radioactivity meter is supplied with 6 x 1.5V AA batteries or with a 9V plug-in power supply.

For more information, please see Manual and Data Sheet
