PCE Instruments PCE-LXT-ICA Illuminometer Permanent Installation

Brand: PCE Instruments

Part #:

PCE-LXT-ICA

Condition:

Brand New

Choose Certification

No Yes

Check availability

Manufacturer warranty

Description

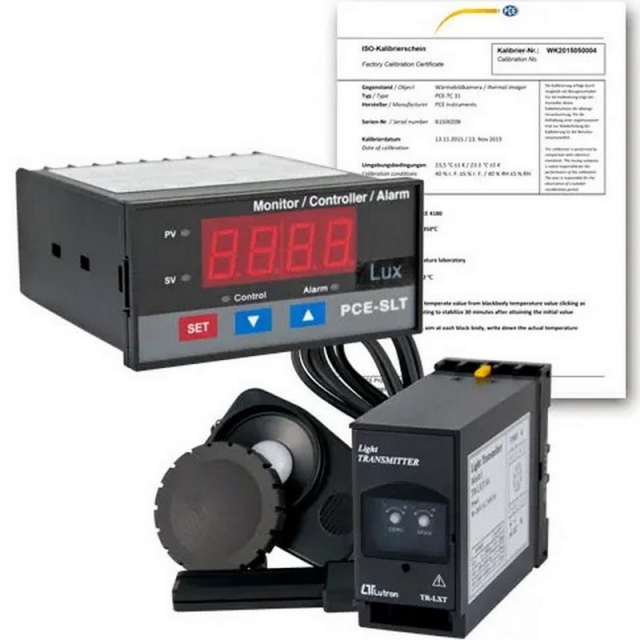

PCE-LXT-ICA Includes Only:

1 x Illuminometer PCE-LXT-ICA

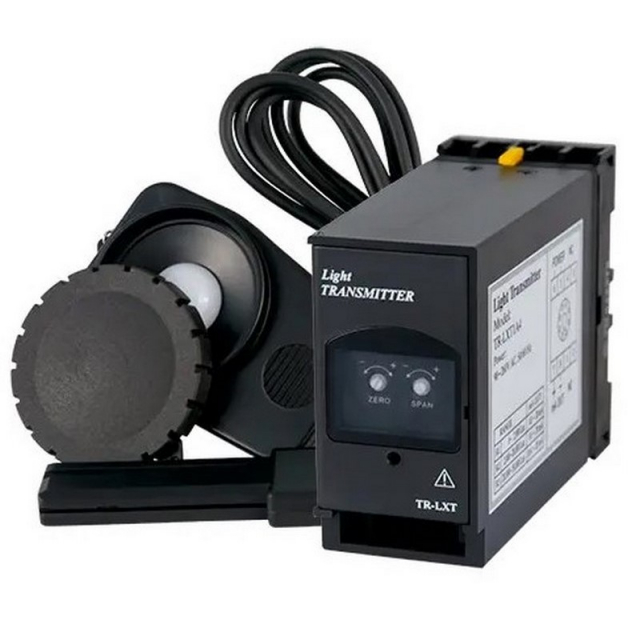

1 x Lux sensor on 1.5 m / 4.9 ft cable
1 x Light transmitter

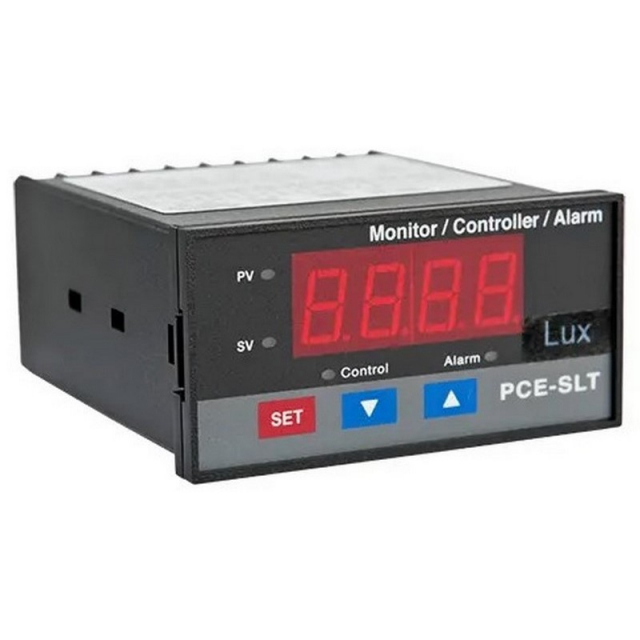

1 x Digital display unit
1 x Operating Instructions
1 x ISO calibration certificate

Features:

For permanent installation
Relay output
Control output
Light measurement and monitoring
Visual or audible warning
Limit value programming

PCE-LXT-ICA illuminometer incl. ISO calibration certificate. For permanent installation with relay output and control output.

The illuminometer consists of a measuring sensor with handle, a wall bracket with a 1.5 m / 4.9 ft cable, a light transmitter and a digital display. The main application of this illuminometer lies in the continuous light measurement and light monitoring of photo labs and production areas, such as in food or drug manufacturing.

The digital display has a relay output for controlling alarm horns or flashing lights for visual or audible warning and a control output. The limit value for the alarm output can be programmed on the display. Likewise, the analogue output signal can be used to control window flaps or the signals of the transmitter can be stored, evaluated and documented on a logger. The sound warning device is very easy to connect and can be operated via 240V mains current.

The illuminometer XLT is designed for continuous measurement of the light intensity. The light transmitter and the digital display have standard dimensions and therefore fit into every control cabinet that has standard plug-ins. The illuminometer is particularly suitable for monitoring in companies that manufacture or store photosensitive materials, such as photo labs, food production/storage, and pharmaceutical production/storage.

For more information, please see Manual

Check availability

Technical details

Main features

Weight ca. 250 g / 8.8 oz
Sensor Photo Diode with color correction filter according to C.I.E.
Accuracy ±5 % of reading
Output 4 to 20 mA
Calibration adjustable via grub screws
Measuring Range 0 to 50000 lux in three areas
Certification Yes
Housing Material ABS plastic
Display -1999 to 9999 (1 to 3 decimal places, depending on the measured value / selectable by the user)
Resolution 0.1 lx / 1 lx
Housing ABS plastic
Alarm Output Relay output: 5 A / 240 VAC
Supply via transmitter, 90 to 260 ACV, 90 to 260 ACV / 50 to 60 Hz
Degree of protection IP 54, IP 65
Ambient Conditions max. 80 % relative humidity / 0 to +50 °C (32 to 122 °F), max. 85 % relative humidity / 0 to +50 °C (32 to 122 °F)
Input signal from the transmitter 4 – 20 mA
Control output 3-point (Com, NO, NC)
Cable length (sensor to transmitter) 1.5 m / 4.9 ft
Programming data (decimal point, limit valueto) Are stored in the device
Dimensions / control panel cut-out according to DIN 92 (+0.8) mm x 45 (+0.5) mm
