PCE Instruments PCE-LES 103UV-365 UV-Stroboscope 3 UVA High-Power LED

PCE-LES 103UV-365 Includes Only:

• 1 x PCE-LES 103UV-365 UV-stroboscope
• 1 x USB-C cable
• 1 x Quick Start Guide
• 1 x Service bag

Features:

• 3 UVA high-performance LEDs
• Flash color: 365 ... 370 nm
• Flash frequency adjustable in FPM and Hz
• Intensity: 202 μW/cm² at 30 cm
• Digital pulse width modulation
• Phase shift: - 360 ° ... + 360 °
• Quick adjustment using x2 and ÷2 buttons
• Intuitive control buttons and clear display

UV stroboscope with 3 UVA high-power LEDs / 202 μW/cm² at 30 cm / pulse width in per cent, degrees or time / phase shift / simple, clear display / mains-independent thanks to battery operation

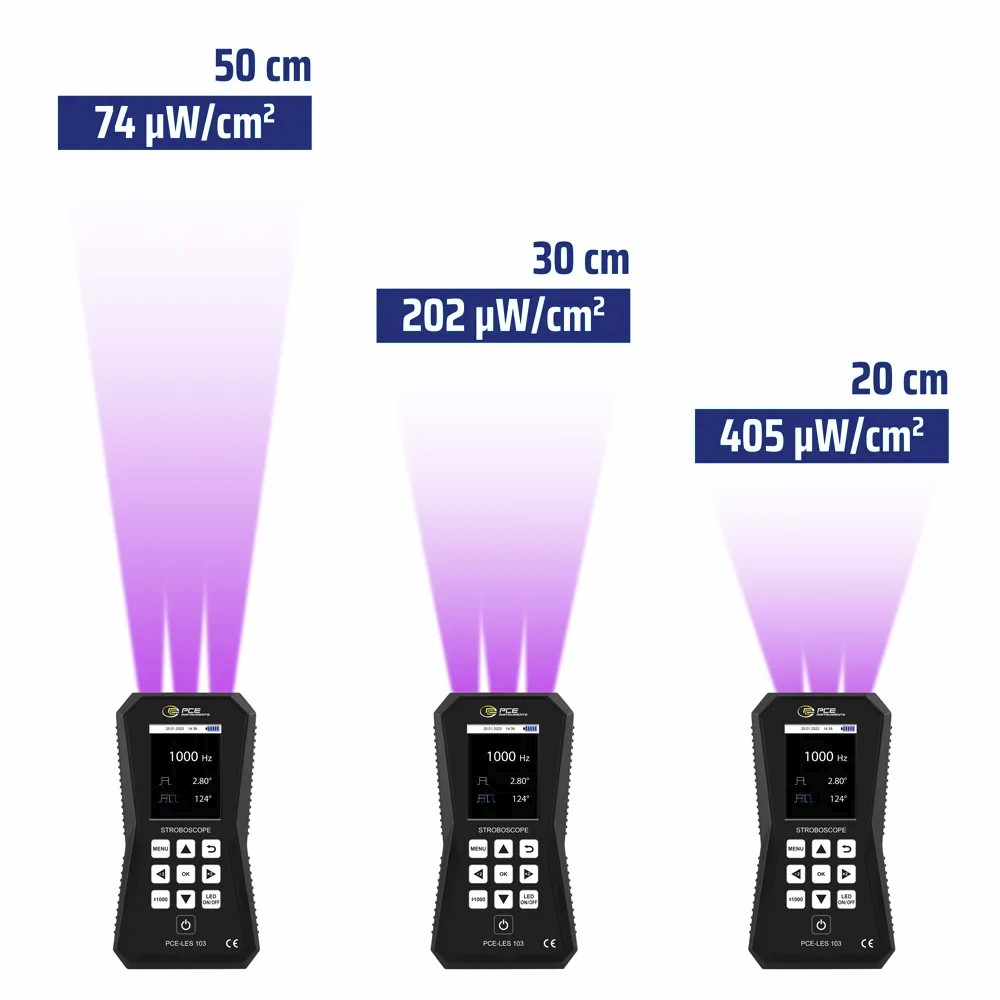

Motion analysis of rotating machines is quick and easy with UV stroboscope. The UV stroboscope is equipped with 3 UVA high-power LEDs, which together generate a light intensity of 202 μW/cm² at a distance of 30 cm. UV Stroboskop Skizze über die jeweilige Lichtstärke bei verschiedenen Abständen.With the UV stroboscope, you can set the flash frequency in both FPM and Hz. It is also small, handy and mains-independent thanks to the rechargeable battery.

The UV stroboscope is operated intuitively using the 10 buttons, allowing quick adjustments to be made. The phase shift allows the observation point to be moved variably. The pulse width can be used to set the duration and therefore also the intensity of the flash frequency. The display brightness can be selected in the settings menu and the display can also be switched off after a period of inactivity, which extends the battery life. The UV stroboscope is supplied with a USB-C charging cable in a service bag.

UV stroboscopes are indispensable tools for monitoring and inspecting production facilities, e.g. in the printing and textile industries. But also for general maintenance and inspection tasks in all industrial sectors. They also enable non-contact speed and vibration measurement: if the flash frequency of the UV stroboscope matches the movement frequency, the measured object appears stationary.
