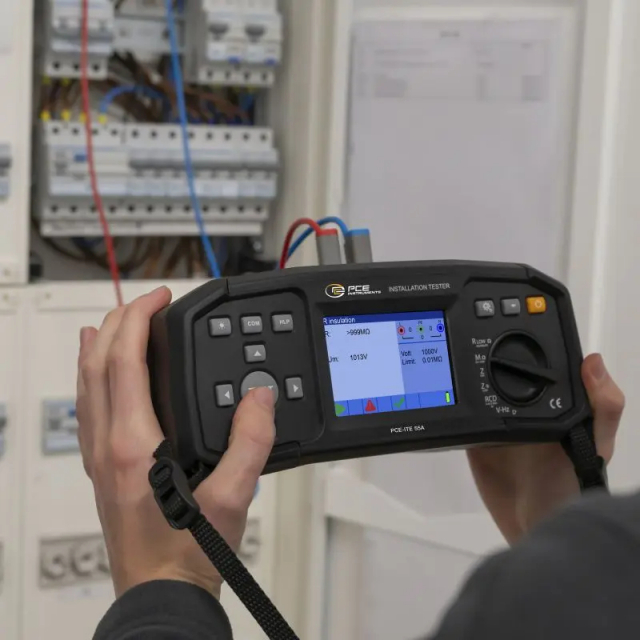

PCE Instruments PCE-ITE 55A Insulation Tester RCD Type A and AC

PCE-ITE 55A Includes Only:

• 1 x Insulation Tester PCE-ITE 55A
• 1 x Test Cable for EU Schuko Sockets
• 3 x Test Leads 1m
• 3 x Test Probes
• 3 x Crocodile Clips
• 1 x Carrying Strap
• 6 x 1.5V AA Batteries
• 1 x Factory Calibration Certificate
• 1 x User Manual

Features:

• Testing according to EN 61557 and DIN VDE0100
• Insulation resistance
• RCD Type A and AC
• Line and fault loop impedance
• Continuity test
• Voltage, phase sequence, and frequency
• Testing of EV charging stations with optional test adapter
• Includes test leads

Insulation Tester with Carrying Strap / Fast Testing for Fixed Installations / Insulation Resistance / Fault Loop Impedance / Switchable Test Voltages and Fault Currents / Menu Languages: German and English

The insulation tester is a multifunctional measuring device designed for testing electrical safety in accordance with the standards EN 61557 and DIN VDE 0100. It offers many functions specifically designed for the inspection and assessment of electrical installations. The insulation tester can perform precise measurements of insulation resistance between live parts and ground. With special functions for RCDs, both Type A and AC-controlled residual current circuit breakers can be efficiently tested, ensuring the proper functioning of these vital protective devices.

The insulation tester allows for the quick and accurate measurement of loop resistance to ensure that, in the event of a fault current, sufficient resistance is present to ensure a safe disconnection. Additionally, a measurement of the protective conductor resistance allows for checking the continuity of conductors and connections. A graphical representation of the wiring helps the operator perform measurements accurately.

The brightness of the display can be adjusted in 4 levels. An adjustable alarm tone warns of errors or exceeding the limit. The adjustable auto-off time of the insulation tester prevents unintentional battery discharge. The device comes with test leads that meet the specific requirements of CAT III / 600 V and CAT IV / 300V.

The insulation tester offers a user-friendly interface, clear display elements, and a robust construction to meet the requirements in various environments. By complying with international standards, it ensures a safe and reliable assessment of electrical installations according to the highest industry standards.With optional EVSE test adapters, tests can also be conducted on wall boxes and charging stations for electric vehicles.
