PCE Instruments PCE-HVAC 3S-ICA Multifunctional Thermometer

Brand: PCE Instruments

Part #:

PCE-HVAC 3S-ICA

Condition:

Brand New

Choose Certification

Yes No

Check availability

Manufacturer warranty

Description

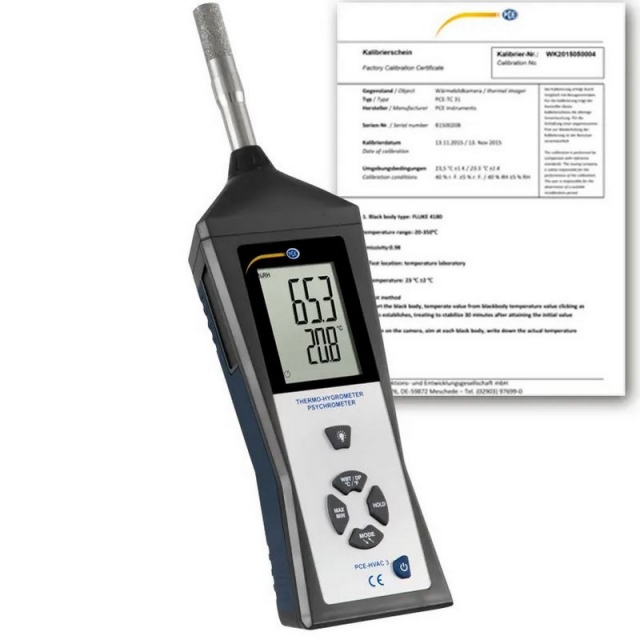

PCE Instruments, PCE-HVAC 3S-ICA, Thermometer incl. ISO Calibration Certificate

PCE-HVAC 3-ICA Includes Only:

1 x Thermometer PCE-HVAC 3S-ICA

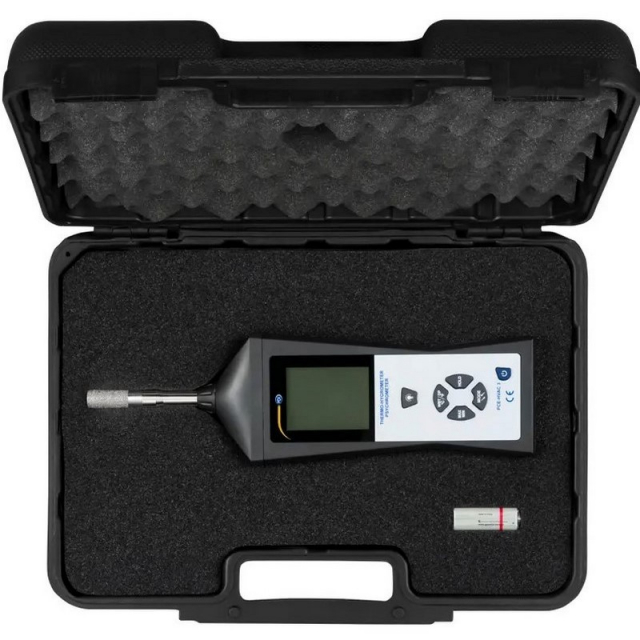

1 x Carrying case
1 x Battery
1 x Operating instructions

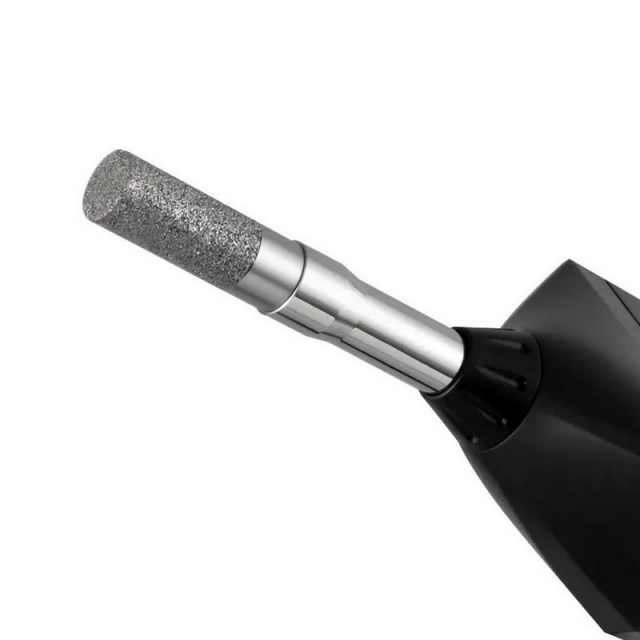

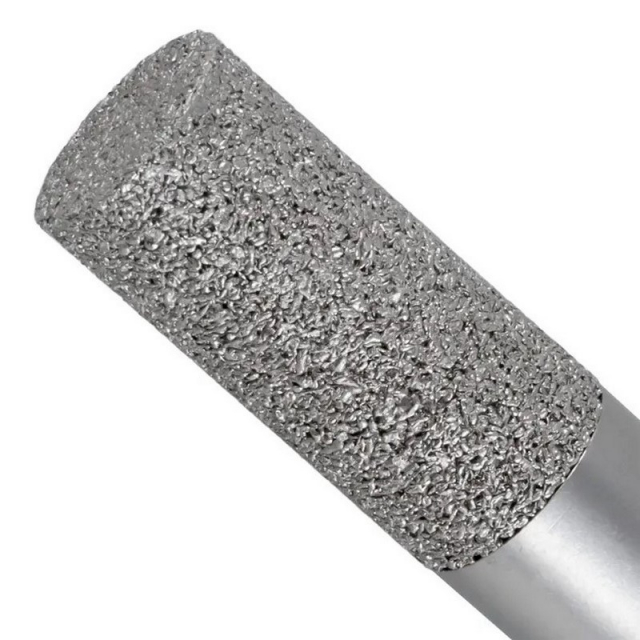

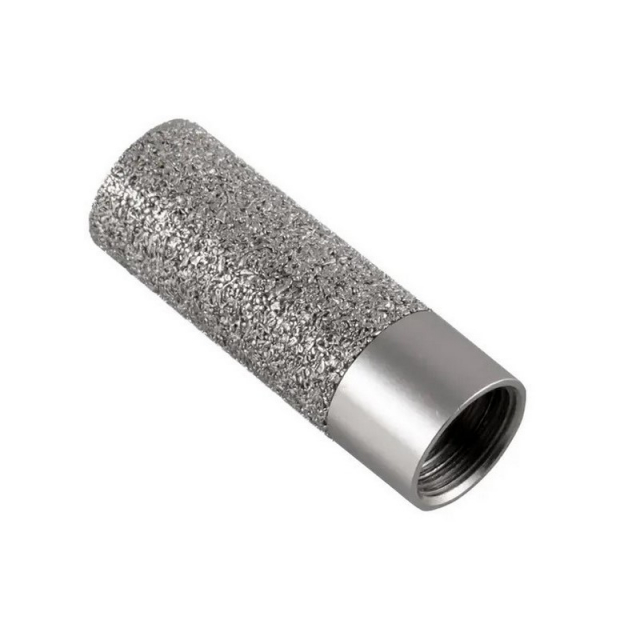

1 x Sintered filter
1 x ISO Calibration Certificate

Features:

Ergonomically shaped housing
One-hand operation
Background lighting
HOLD and extreme value display
Automatic switch-off can be deactivated
Measurement of dew point and wet bulb temperature

Environmental measuring device in an ergonomically shaped housing / Backlighting / For recording ambient humidity (% rH) and room temperature (°C / °F) / Calculation of dew point and wet bulb temperature in °C and °F / Extreme value measurement

The environmental measuring device PCE-HVAC 3 is a multifunctional diagnostic device for climate testing. In addition to the ambient humidity and room temperature, the environmental measuring device also determines the dew point and wet bulb temperature in °C and °F. The heat and climate measurement and installation is therefore one of the core areas of application of the PCE-HVAC 3 thermo hygrometer. The measurement of ambient humidity and temperature is determined directly via the built-in sensors. In addition, there is the option of showing the dew point temperature and wet bulb temperature on the display. The basis for the calculation are the values transmitted via the sensors.

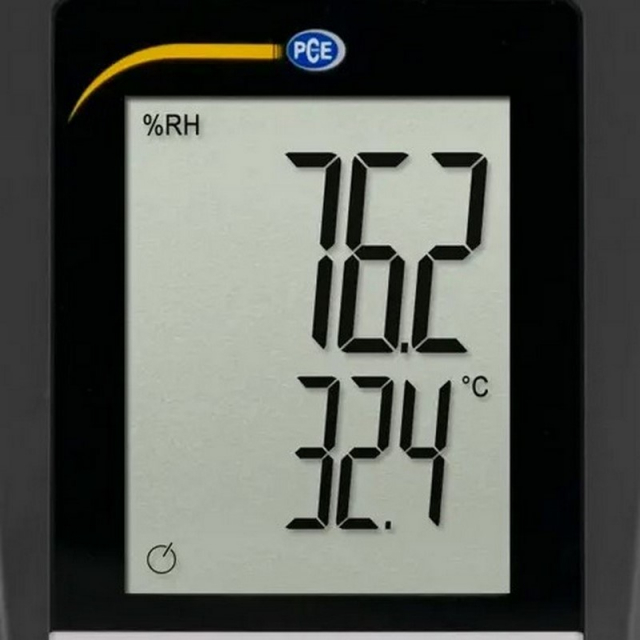

In addition to the large, easy-to-read dual display, which also offers the option of lighting, the environmental measuring device needs six buttons, which is the reason why it is an intuitively operated measuring instrument that performs extensive climate tests in private and professional Area in a simple way. In addition to the one-off measurement with the climate measuring device, condition monitoring can also be carried out over a long period of time. The thermo hygrometer is equipped accordingly.

For more information, please see Manual

Check availability

Technical details

Main features

Sensor Type Humidity: Precise capacitive Sensor Temperature: Thermistor
Weight 400 g / < 1 lb
Dimensions 300 x 75 x 50 mm / 11.8 x 3 x 2 in
Power Supply 9V block battery
Certification Yes
Measurement Parameters % RH, GPP (grains per pound), g / kg, g / m (absolute), gr / ft (absolute)
Display Dual LCD
Response Time < 15 seconds
Battery Life Approx. 48 hours
Storage Conditions -40 to 85°C / -40 to 185°F, < 99% RH (non-condensing)
Operating Conditions 0 to 50°C / 32 to 122°F, < 80% RH (non-condensing)
Measuring Range Temperature -30 to -19.9°C / -22 to -3.8°F (accuracy: ± 1.0°C / 1.8°F) -20 to 60°C / -4 to 140°F (accuracy: ± 0.5°C / 0.9°F) 60 to 100°C / 140 to 212°F (accuracy: ± 1.0°C / 1.8°F)
Resolution Temperature 0.1°C / 0.18°F
Humidity Measuring Range 0 to 20% (accuracy: ± 4% rh) 20 to 40% (accuracy: ± 3% rh) 40 to 60% (accuracy: ± 2% rh) 60 to 80% (accuracy : ± 3% RH) 80 to 100% (accuracy: ± 4% RH)
Measuring Range Dew Point Temperature -30 to 100°C / -22 to 212°F
Units of measurement °C °F Dew point (°C / °F) Wet bulb temperature (°C / °F)
Absolute humidity 0 to 500 g / m 0 to 218.5 g / ft
Resolution air humidity 0.1%
Wet bulb temperature measurement range 0 to 80°C / 32 to 176°F
