PCE Instruments PCE-G1A Panel Meter with Large Display

PCE-G1A Includes Only:

• 1 x Panel Meter PCE-G1A
• 1 x Sensor for temperature and humidity with connection cable (in selected configuration)
• 1 x Mains power cable
• 1 x 4 pin DIN connector
• 1 x Instruction manual

Features:

• Ingress protection type: IP 54 rating
• Large, easy-to-read 100 mm / 3.9 in tall LED digits
• Analog output: 4 - 20-mA external sensors
• Temperature and relative humidity values are displayed every 5 seconds (in 5-second intervals)
• Displays temperature in degrees Celsius (°C) only
• Ready for wall mounting
• Long life
• Excellent readability
• High accuracy

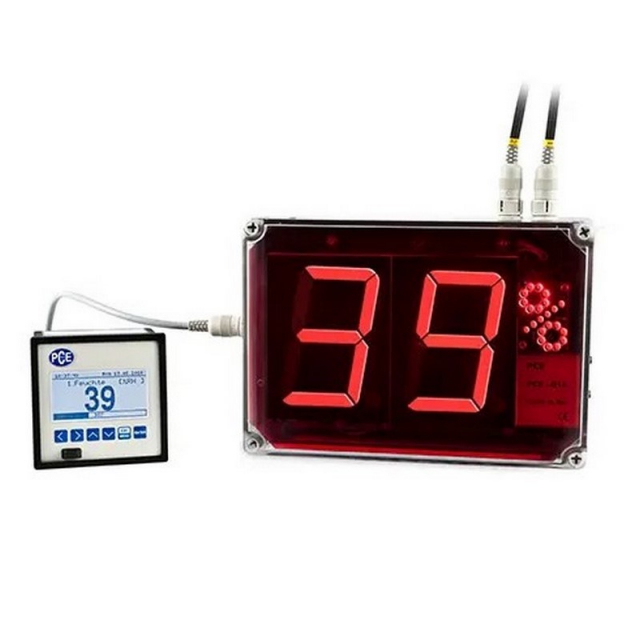

PCE-G1A is a panel meter with a large display. This IP54-rated wall-mountable device measures both relative humidity (%RH) and temperature (°C only). The panel meter has a large LED display with a number height of 100 mm / 3.9 in, so measurement values can be seen at a distance of up to 50 m / 164 ft away.

Relative humidity and temperature measurements are displayed every 5 seconds (in 5-second intervals). Sensors are mounted by means of connectors with 1 m long cable to measure relative humidity and temperature when sensors and display are in different places.

The panel meter also has a 2-channel analog output of 4 - 20-mA. The two channels convert relative humidity and temperature values into 4 - 20-mA signals before displaying them. This means that measurements can be recorded, controlled and regulated by means of the analog output.

For more information, please see Manual
