PCE Instruments PCE-EPT 1.5-ICA Pallet Scale with Electric Drive
Brand New
Manufacturer warranty Description
PCE Instruments, PCE-EPT 1.5-ICA, Pallet Scale PCE-EPT 1.5-ICA with electric drive inc ISO Calibration Cert
PCE-EPT 1.5-ICA Includes Only:
- 1 x Pallet Scale PCE-EPT 1.5-ICA
- 2 x Mains power adapters
- 3 x 1.5V AA batteries
- 1 x 24V battery pack
- 1 x Instruction manual
- 1 x ISO calibration certificate
Features:
- Weighing range 0 - 1500 kg / 3306 lb
- Resolution 0.1 kg / 0.22 lb
- Quickly replaceable battery with a long service life
- Fork height 86 - 196 mm / 3.3 x 7.7"
- Rubber wheels
- With electric drive
Pallet Scale / Weighing range 0 - 1500 kg / Fork height 86 - 196 mm / Quickly exchangeable battery / Faster and slower running / "Hold" and "tare" function /Backlight / Rubber wheels / Incl. ISO calibration certificate / Electric drive

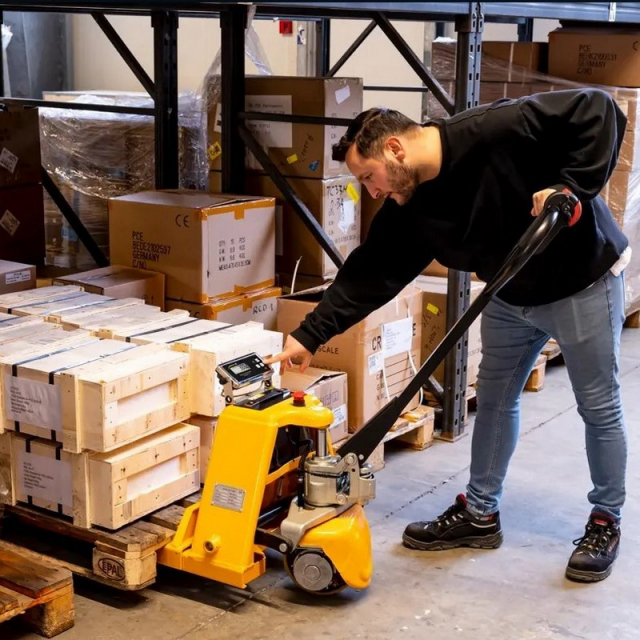

The pallet scale is a lift truck with an integrated electric motor drive. The pallet scale's 20 Ah battery can be recharged using the supplied power pack. If necessary, the battery in the pallet scale can be replaced with a fully charged battery in just a few steps. This ensures an almost uninterrupted workflow in, for example, 24/7 operation with the pallet scale.
In addition, the pallet scale has a weighing function. This allows pallets to be weighed with the scale. The weight on the pallet scale is measured using four built-in load cells with a total measuring range of 0 - 1500 kg. To facilitate weighing, a zero point and taring can be carried out.
Thanks to the electric drive and the integrated weighing device, the pallet scale is the ideal support for every logistics or forwarding employee. This increases productivity and at the same time reduces the burden on employees. The pallet scale is equipped with an ISO calibration certificate.
Technical details
- Weight 160 kg / 352 lb
- Dimensions dimensions can be found in the instructions
- Accuracy ±0.2% of measuring range
- Functions horn, slow and fast drive mode, drive with a vertical tiller
- Motor Power 450 W
- Resolution 0.1 kg / 0.22 lb
- Digit Height 20 mm / 0.78"
- Ambient Conditions -10 to 40 °C / 14 to 104 °F; <85 % RH, non-condensing
- Power Supply Battery 3 x 1.5 V AA batteries
- Power Supply Mains Adapter primary: 100 to 240 V AC, 50/60 Hz, 0.3 A secondary: 6 V DC, 500 mA
- Power supply (mains adapter) primary: 100 to 240 V AC, 50/60 Hz, 1.6 A secondary: 29.4 V DC, 4 A
- Power supply (battery) 24 V, 20 Ah
- Weighing range 0 to 1500 kg / 3306 lb
- Taring range over the entire weighing range
- Zero point (automatic) to 10% of measuring range
- Zero point (manual) to 2% of measuring range
- Battery life with backlight ca. 30 hours
- Battery life without backlight ca. 100 hours
- Weight battery 5 kg / 10 lbs
- Speed(loaded) 4 km/h / 2.5 mph
- Speed (unladen) 4.5 km/h / 2.8 mph
- Maximum gradeability (loaded) 3%
- Maximum gradeability (unladen) 18%
- Parking brake Electromagnetic
- Tyres PU
- Tyre size (drive) 150 x 70 mm / Ø5.9 x 2.75"
- Tyre size (loading area) 4 x 80 x 60 mm / Ø3.15" x 2.36"
