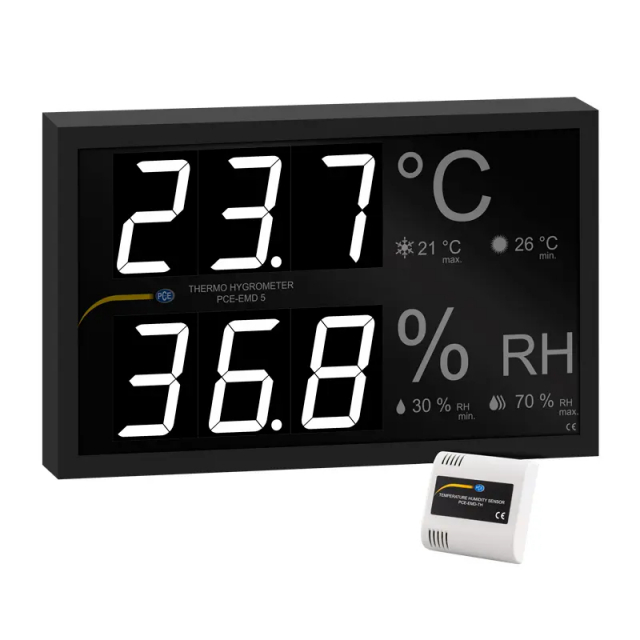

PCE Instruments PCE-EMD 5 Temperature and Humidity Indicator

PCE-EMD 5 Includes Only:

• 1 x Temperature indicator PCE-EMD 5
• 2 x Wall mounting brackets

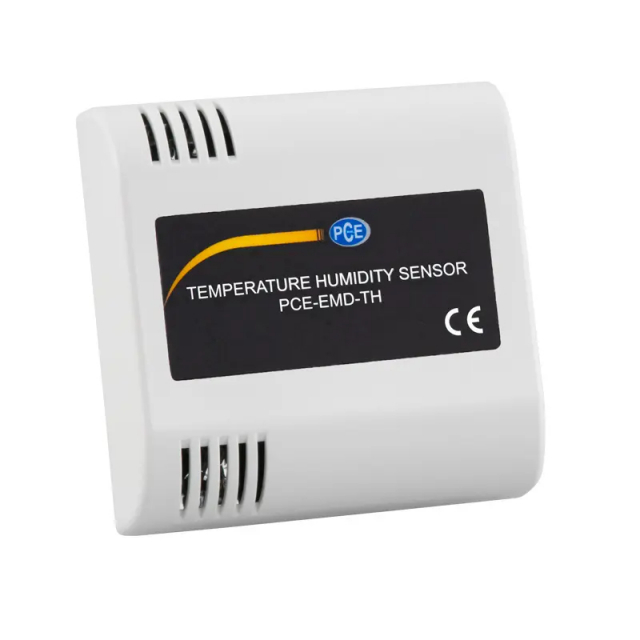

• 1 x Sensor module PCE-EMD-TH
• 1 x Instruction manual

Features:

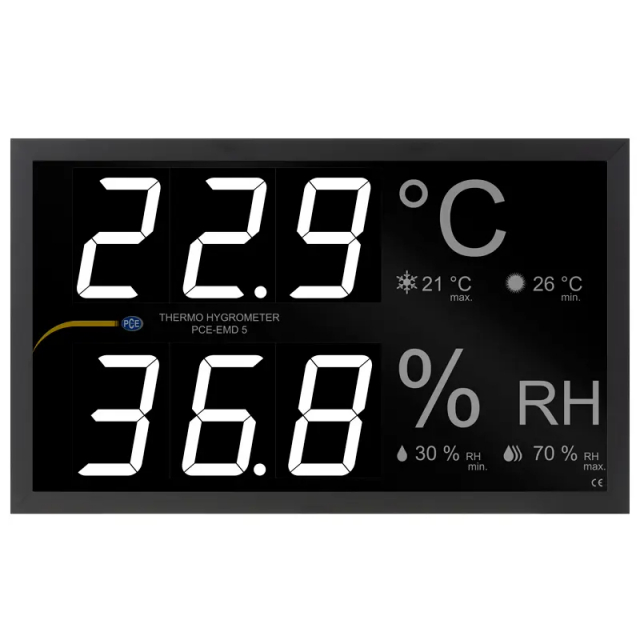

• Digit height of 100 mm (3.9")
• Measuring ranges: 0.0 … 50.0 °C
• Wall mounting
• Connection of up to four external sensors
• Analog 4 ... 20 mA input signal
• Optionally with ISO calibration certificate

Temperature indicator with robust aluminium frame / Digit height 100 mm (3.9") / Temperature measuring range 0 ... 50 °C / Humidity measuring range 0.0 ... 99.9% RH / Connection of up to four sensors at the same time / Optionally with ISO calibration certificate

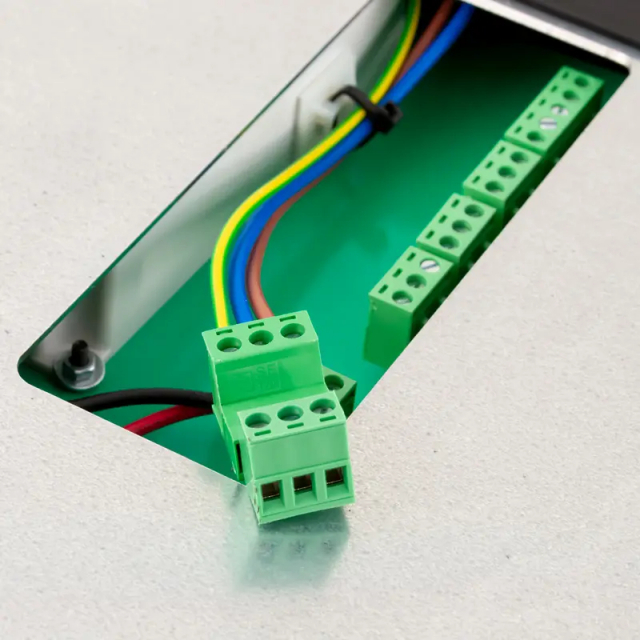

The temperature indicator can be connected to up to four external temperature and humidity modules. The temperature measuring range for the sensors of the thermo-hygrometer is 0.0 … 50.0 °C and the humidity measuring range is 0.0 … 99.9% RH. The power supply of the thermo-hygrometer is via a mains connection of 110 ... 220 V AC. The integrated sensor supply can supply the connected sensors from the thermo-hygrometer with 12 or 24 V DC.

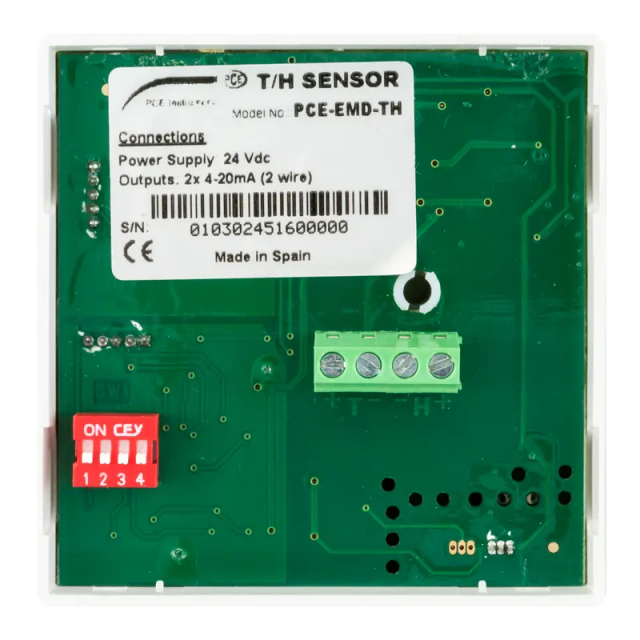

As soon as the sensors are connected, they are automatically recognized by the temperature indicator. The communication between the sensor modules and the thermo-hygrometer takes place via an analog 4 … 20 mA signal. If several sensors are connected, the average reading of all sensors is displayed on the thermo-hygrometer. Thus, the thermo-hygrometer is used, for example, in event halls, restaurants or in public buildings to monitor the ambient conditions.

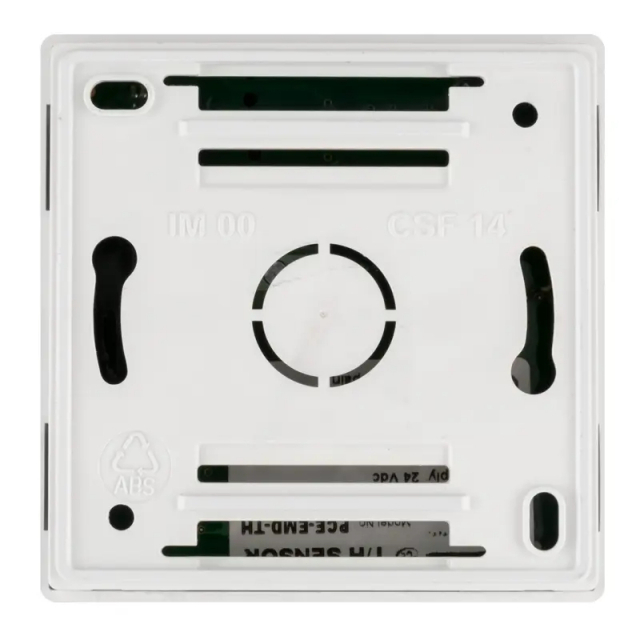

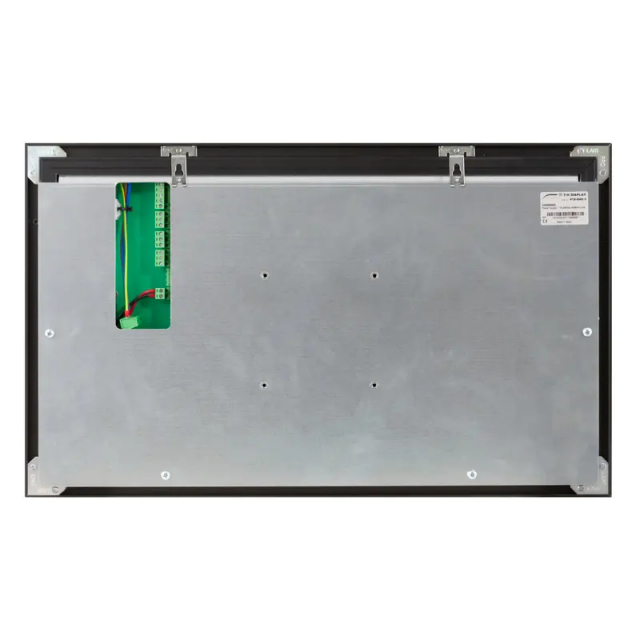

Both the temperature indicator and the sensor module are mounted on a wall. If necessary, the thermo-hygrometer can be mounted on a monitor bracket with the mounting dimensions 75 x 75 mm (2.95 x 2.95"). This allows the thermo-hygrometer to be ideally aligned. The thermo-hygrometer can optionally be equipped with an ISO calibration certificate.
