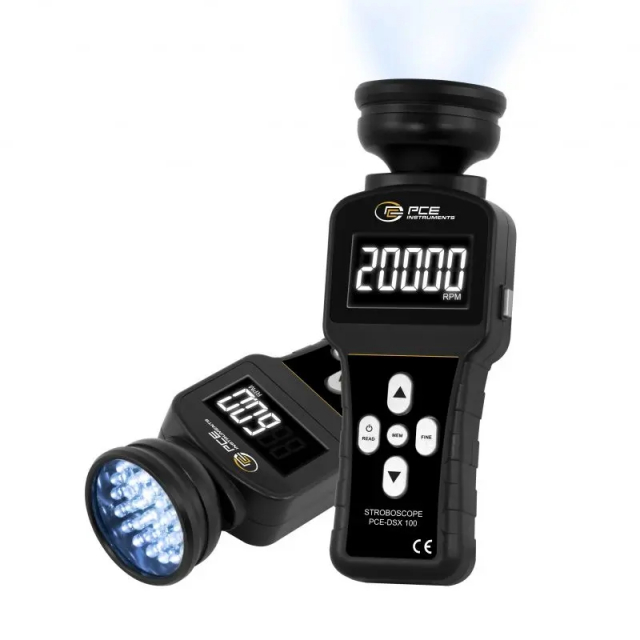

PCE Instruments PCE-DSX 100 Stroboscope with 36 Bright LEDs

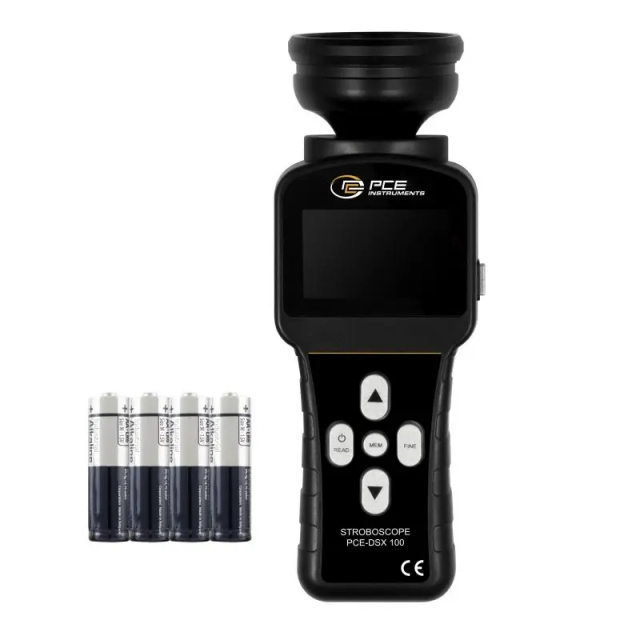

PCE-DSX 100 Includes Only:

• 1 x stroboscope PCE-DSX 100
• 4 x 1.5 V AA batteries
• 1 x operating instructions

Features:

• Measuring range from 60 - 20000 RPM
• Automatic switch-off
• 2.1" LC display with illumination
• Data storage function for up to 10 values
• Coarse adjustment in steps, +10, +100 RPM
• Fine adjustment in steps, +0.1, +1 RPM
• The stroboscope with coarse and fine adjustment

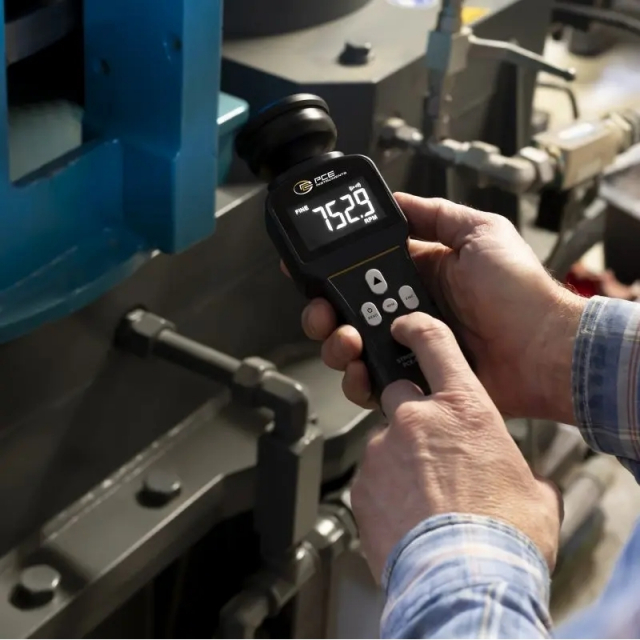

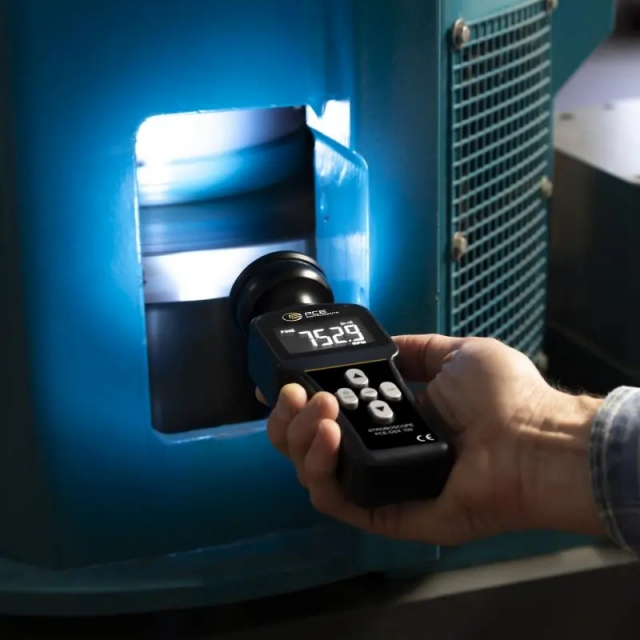

The stroboscope is a handy device for measuring the speed of objects with a measuring range of 60 to 20,000 RPM. The stroboscope is suitable for inspecting objects with periodic movements and for detecting faults. The stroboscope enables precise measurements through fine and coarse adjustments. With the fine adjustment, the speed can be changed in small steps: +0.1 RPM for speeds below 1000 RPM and +1 RPM for speeds above 1000 RPM. The coarse setting allows larger changes: +10 RPM for speeds below 1000 RPM and +100 RPM for speeds above 1000 RPM.

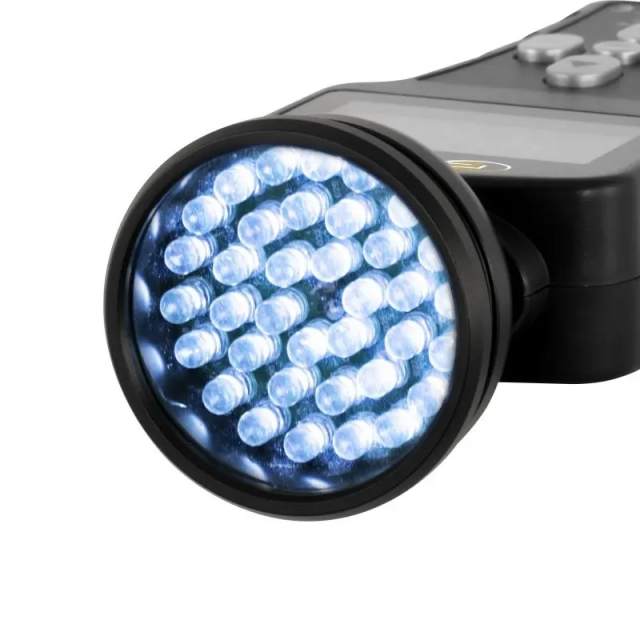

Equipped with an illuminated LC display and a digit height of 16 mm, the stroboscope provides a clear display even in poor lighting conditions. The flashlight source with over 36 LEDs generates bright flashes of light for optimum measurements. The automatic switch-off after 5 minutes of inactivity saves energy and extends battery life. The stroboscope has a memory for up to 10 flash frequencies to enable a quick change to different frequencies. The stroboscope automatically warns when the supply voltage is too low to ensure trouble-free operation.
