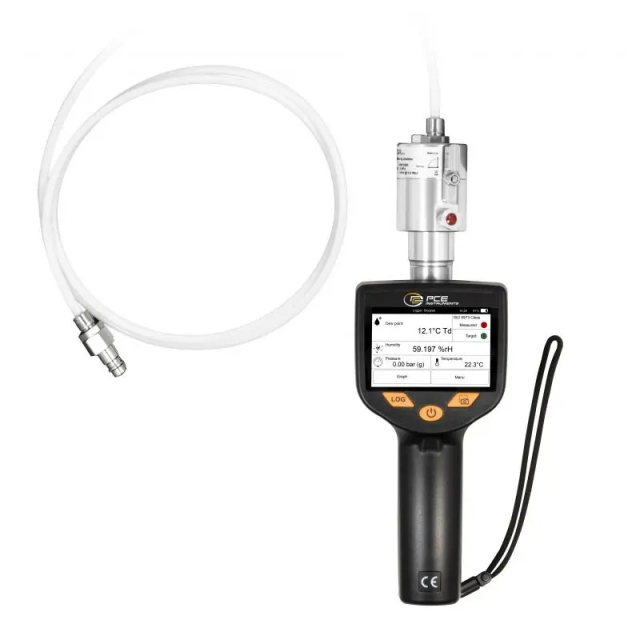

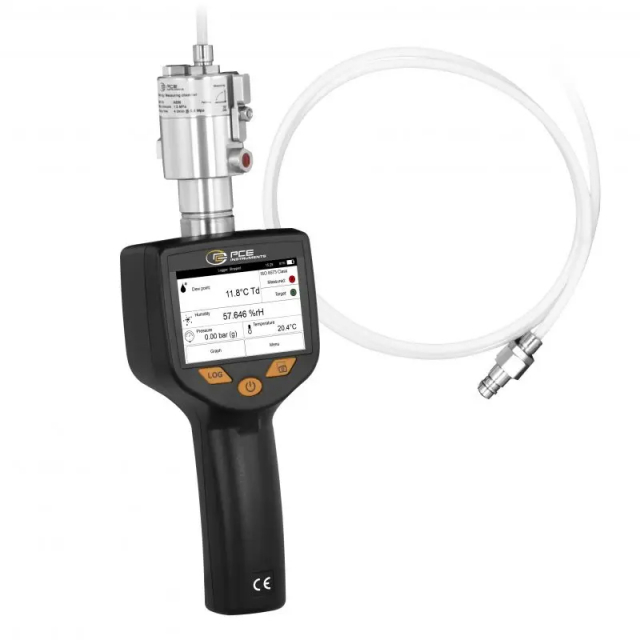

PCE Instruments PCE-DPM 10 Dew Point Meter for Compressed Air

Brand: PCE Instruments

Part #:

PCE-DPM 10

Condition:

Brand New

Check availability

Manufacturer warranty

Description

PCE-DPM 10 Includes Only:

1x Dew Point Data Logger PCE-DPM 10
1x PTFE hose with quick coupling

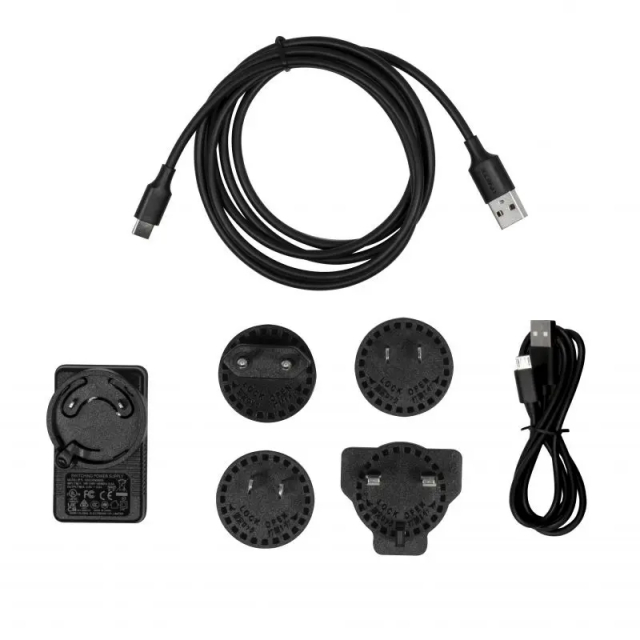

1x USB power supply with adapters
1x USB-C cable
1x USB-C stick

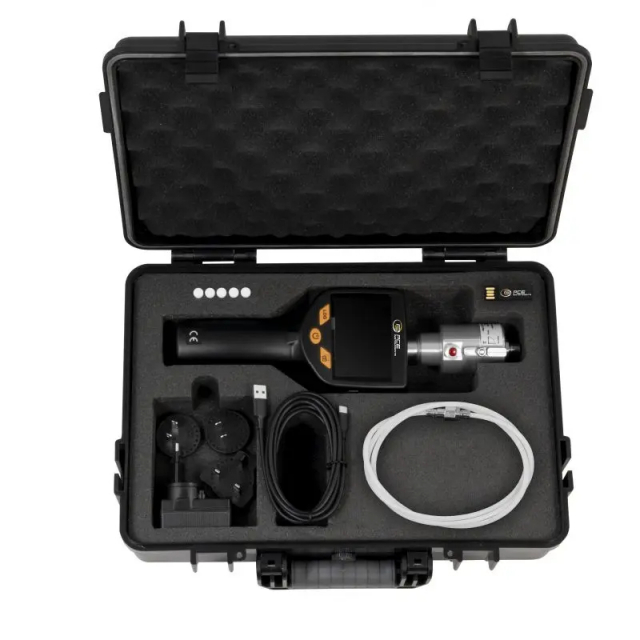

1x Transport case
1x Software (download)
1x Operating instructions

Features:

Taupunkt Messbereich von -100 ... +50 °C
Druckbereich bis 15 bar Differenzdruck
Datenlogger für bis zu 100 Millionen Messwerte
Alarmgrenzen einstellbar.
Touch LC Display

Climate Meter for pressure systems / precise measurement / alarm limits / battery-operated handheld device / touch display

The precise climate meter from PCE Instruments enables the reliable measurement of humidity and temperature in a measuring range of up to 15 bar. The climate meter is versatile and provides accurate results for air and various gases.

The climate meter offers a robust and handy design, the housing of the climate meter was specially developed for industrial applications.

The operation of the climate meter is particularly easy thanks to the touch display, which further emphasises the user-friendliness of the climate meter. The climate meter offers the option of storing your own calibration data, e.g. to quickly adjust the pressure to the current atmosphere.

In addition, the climate meter is able to display the humidity in many different units of measurement, saving the user the hassle of converting the values. The quick coupling included in the scope of delivery enables the climate meter to be used quickly and also saves time during measurement.

In addition, the climate meter has a climate meter function for up to 100 million measured values. These can be conveniently read out and processed via the USB C interface and the USB-C stick supplied.

When the optional Smart Features are purchased, the climate meter can not only measure the current dew point, but also create a forecast for the final value of the dew point. In addition, it enables the climate meter to document the measurement location using the integrated camera.

Check availability

Technical details

Main features

Display Type LC Touch Display

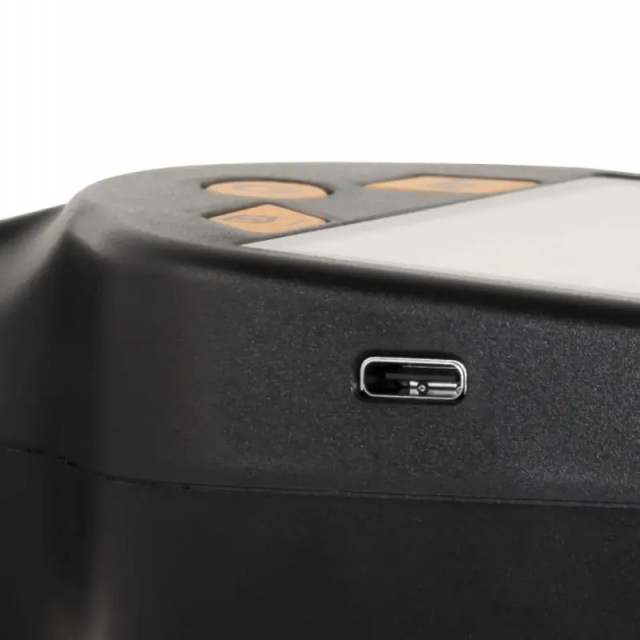

Interface USB-C
Capacity 3500 mAh
Weight 55 g, 775 g
Sensor QCM (quartz crystal microbalance)
Power Supply 5V DC 3 A (via USB-C)
Voltage 3.7 V
Accuracy 0.5 % v. Mb., ± 1°C, ± 2°C, ± 3°C, ± 0.3 °C
Measuring Range 0 bar ... +15 bar, 0 °C ... +20 °C, -60 °C ... +50 °C, -100 °C ... -60 °C, -30 °C ... +50 °C
System Secondary: Rechargeable battery / rechargeable battery
Units °C, °F, bar, psi, MPa, °C Td, %rH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm.
Type Lithium-Ion battery
Resolution 0.1 °C, 0.01 bar

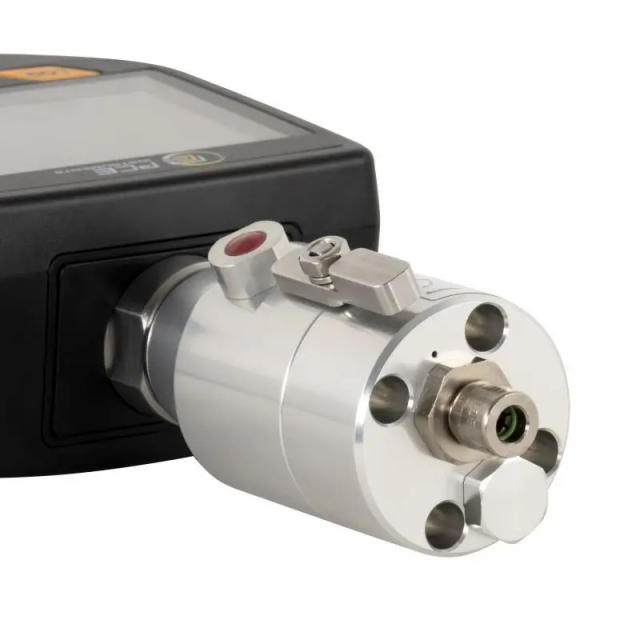

Connections G1/2" with 6mm quick coupling
Housing ABS
Response Time 1 s
Memory Capacity 100 million values
Display Size 3.5 inches
Dimensions (L x W x H) 310 x 100 x 60 mm
Storage Conditions 0 ... 40 °C , 0 ... 80 % r.H
Operating Conditions 0 ... 40 °C , 0 ... 80 % RH
Number 1
Menu Language English, German, French, Spanish, Chinese, Korean, Japanese
Measurement functions Average value
Display Refresh Rate 1 x per second
Storage Medium Internal memory
Protection class (device) IP30
Automatic switch-off can be deactivated Yes
Standard(s) ISO8573-1
Weight Class Class 05 (51 - 150g)
Measuring Medium Air, nitrogen, argon, carbon dioxide, oxygen
Messbereich -100 °C ... +50 °C
Auflösung 0,1 °C
Memory interval of 1 s
Memory interval up to 60 s
Standard(s) Additional information Evaluation according to ISO8573-1 only possible when purchasing the additional functions! Order no. No. PCE-DPM 10-SF
Automatic switch-off adjustable 10 ... 60 min.
Other dimensions PTFE hose 1.5 m with 6mm quick coupling
Instruction languages German
Lithium info Lithium in product (built-in or enclosed)
