PCE-DFG N 20 Includes Only:
- 1 x PCE-DFG N 20 Force Gauge

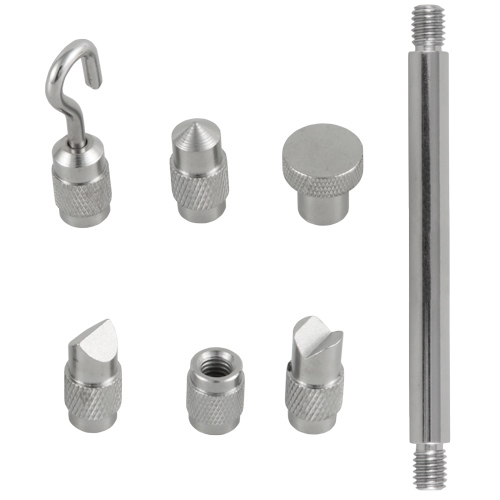

- 1 x Chisel head adapter
- 1 x Flathead adapter
- 1 x Pointed head adapter
- 1 x Hook adapter
- 1 x Notched head adapter
- 1 x Extension bar (90 mm / 3.5 in)
- 1 x PC software
- 1 x USB data cable
- 1 x Power supply
- 1 x Carrying case
- 1 x User manual
Features:
- Pull and pressure force measurement
- 1600 Hz sampling rate
- Error limit 0.1% of the measuring range
- PEAK function (MIN / MAX)
- Limit value function
- Different measuring units
- Automatic or manual storage
- Graphical analysis
- Automatic orientation display
- Time date
- Control and evaluation software
- Automatic shutdown adjustable
- Battery status indicator
- Network operation possible
- Save 100 readings internally or unlimited to PC

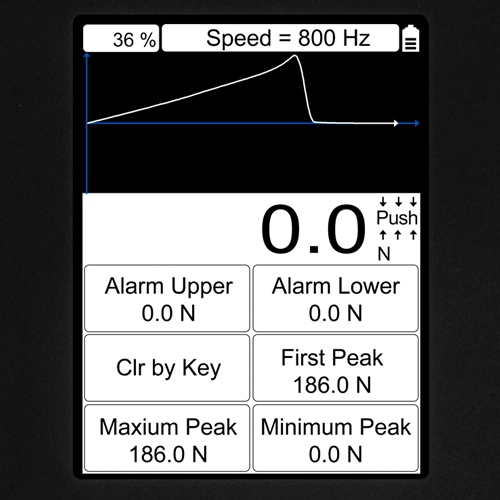

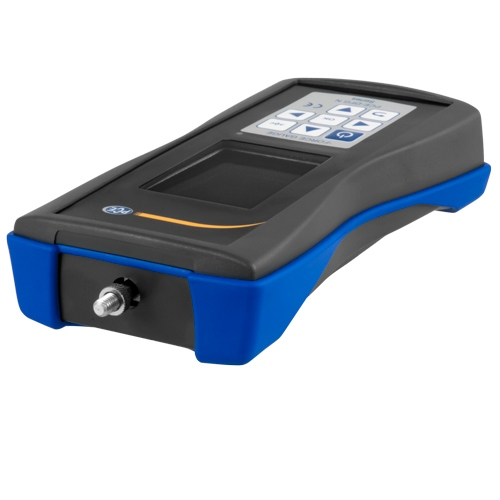

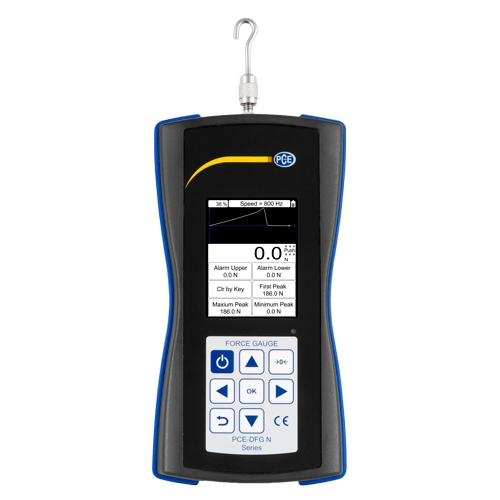

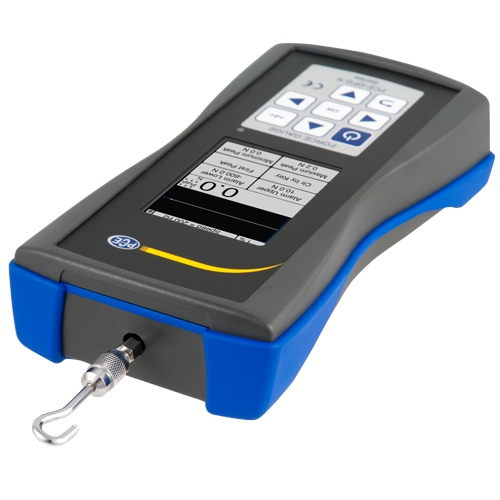

The PCE-DFG N 20 is a digital force meter for precise measurements with a resolution of 0.01 N. The measured values are displayed on a large, illuminated, 180° rotatable display, a correct reading of the measured values is thus guaranteed at all times, with an outstanding accuracy of ± 0.1%. In addition to the internal storage option of 100 measured values. With the software, the measured values can be saved on a computer for later evaluation. Due to its robust housing, sensible menu navigation, and simple operation via 8 keys, the digital force meter PCE-DFG N 20 is characterized by a high degree of user-friendliness. With these characteristics, the digital force gauge is suitable for quality control in the production area, for incoming and outgoing inspection as well as for the development of components or for testing safety-relevant components.
