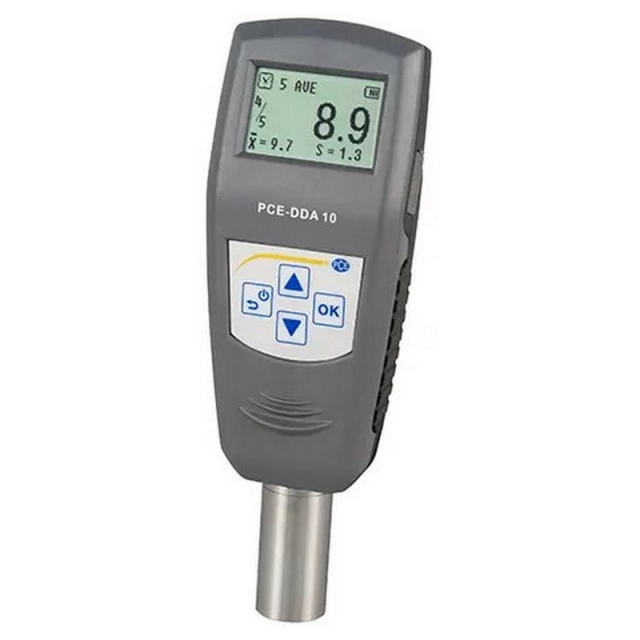

PCE Instruments PCE-DDA 10-ICA Digital Material Tester
Brand New
Manufacturer warranty Description

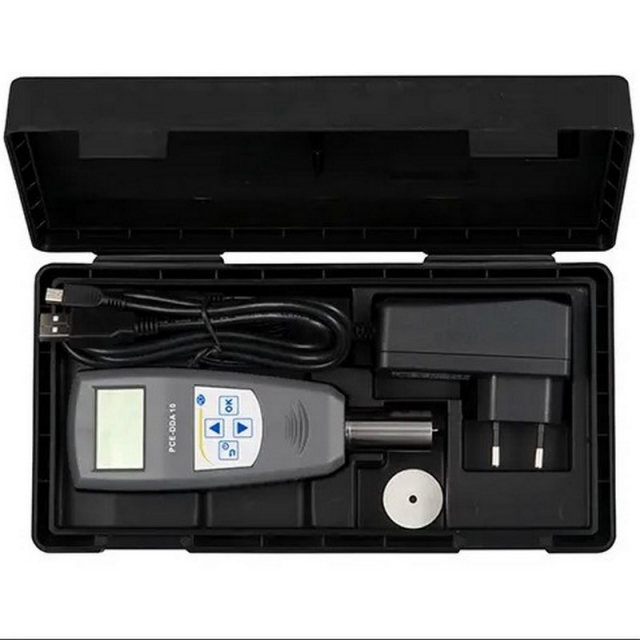

PCE-DDA 10-ICA Includes Only:
- 1 x PCE-DDA 10 Material Tester
- 1 x Power Supply
- 1 x Standard calibration plate
- 1 x Case
- 1 x Battery
- 1 x User's manual
- 1 x ISO Calibration Certificate
Features:
- Handheld device
- Digital display
- Plastic case included
- For Shore A measurements
- Large display
- Single and Serial Measurements
- Data transfer to pc
Digital Material Tester to measure Shore A hardness in shoft gums, rubber and elastomers with USB-Port and downloadable software
The PCE-DDA 10 Material Tester is an ergonomic device to check Shore hardness in gum, plastic and other non-metallic materials. It has been designed with a very high quality. The PCE-DDA 10 Material Tester is mainly used for soft gums, elastomers, natural rubber, neoprenes, casting resin, white PVC, leather, etc. If the material thickness is not enough, it should be layered and tightened on the back with the same material in order to increase its thickness.
For more information, please see
Manual
Technical details
- Weight Approx. 300 g / < 1 lb
- Dimensions 153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (main body)
- Power Supply 3.6V rechargeable Ni-MH battery
- Accuracy < ± 1
- Standards GB/T 531.1, ISO 7619-1, ASTM D 2240
- Measurement Range 0 to 100 Shore A
- Type of Shore A
- Resolution 0.1
- Memory Saves up to 500 measurements
- Charging Time Approx. 3 h
- Indenter 35°± 0.25°
- Max. Operating Time Up to 20 h continuous use at full charge
