PCE Instruments PCE-DAT 500 Digital Adhesion Tester

PCE-DAT 500 Includes Only:

• 1 x Adhesion Tester PCE-DAT 500
• 1 x 20 mm base for measuring heads
• 20 x 20 mm measuring heads
• 2 x cutting tool for 20 mm measuring heads

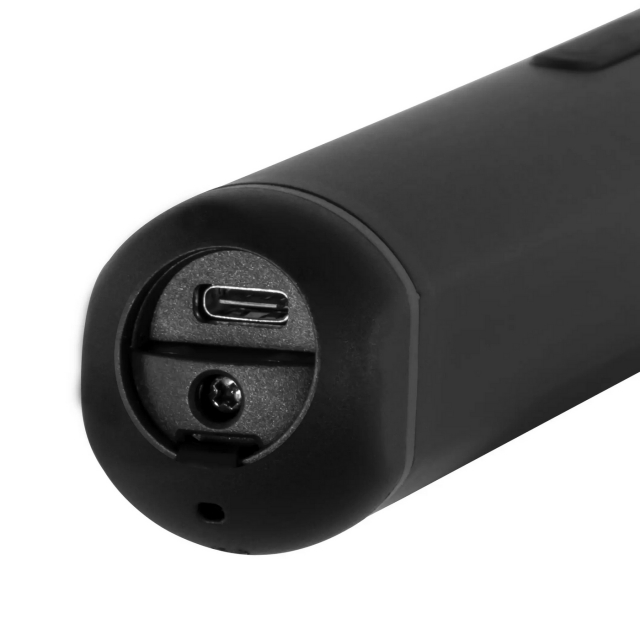

• 1 x electric cutting tool
• 1 x two-component adhesive
• 1 x manual gun for dual cartridges
• 1 x 5 V / 1 A mains adaptor
• 1 x USB-C cable
• 1 x mini USB cable
• 1 x shoulder strap
• 1 x sealing set
• 1 x user manual
• 1 x carrying case

Features:

• Various measuring head sizes selectable
• Mini USB port
• Memory in CSV file format
• Battery operated
• Automatic power off
• Robust and dust-tight housing
• Self-aligning measuring head
• Complies with ISO 4624/16276-1, GB/T 5210, and ASTM D4541/D7234

The Adhesion Tester is a portable, hand-operated device that measures the force required to pull a specific test diameter of coating from a substrate using hydraulic force. The measured force is shown on the LCD and represents the adhesion strength of the coating to the substrate. This device is used to evaluate the adhesion (peel strength) of a coating by determining the maximum tensile force it can withstand before it peels off. Breakage points, which appear as cracks along the weakest layer in the system of carrier, adhesive, coating layers and substrate, are visualised by the Adhesion Tester.

Equipped with a hand-operated hydraulic pump, Adhesion Tester enables precise and repeatable application of the required tensile force. Thanks to a selection of different dolly sizes, the device can be flexibly adapted to different test requirements, making it particularly versatile.

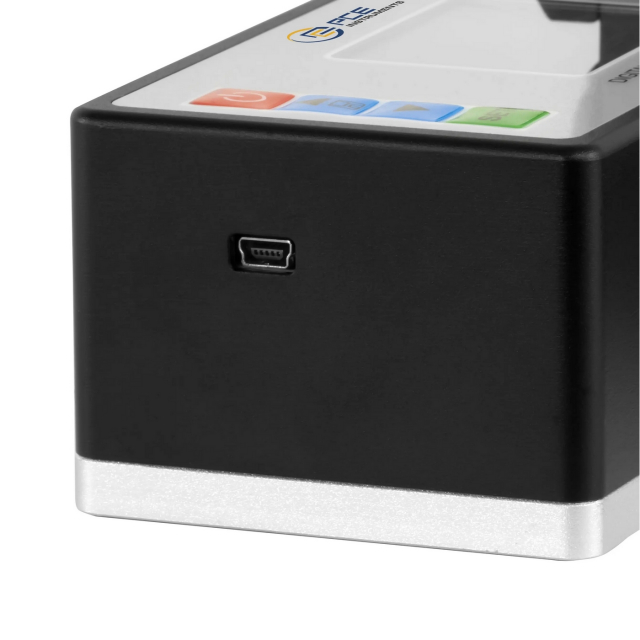

In addition, the Adhesion Tester offers a mini-USB interface for easy transfer of measurement data to external devices. The data can be saved in a practical CSV format, which enables easy processing and analysis. You can find some additional as well as replacement, measuring heads, as well as the right base for your needs in the accessories.
