PCE Instruments PCE-CT 5000H Coating Thickness Gauge with Type F
Brand NewChoose Package Included
Manufacturer warranty Description
PCE Instruments, PCE-CT 5000H, Coating Thickness Gauge with Type F and Type N Probe

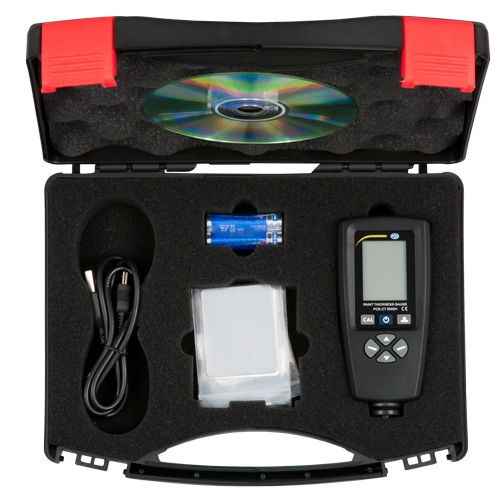

PCE-CT 5000H Includes Only:
- 1 x PCE-CT 5000H thickness gauge
- 2 x Zero calibration plates (ferrous and non-ferrous)
- 5 x Calibration plates
- 2 x 1.5V AAA batteries
- 1 x USB cable
- 1 x PC-compatible software
- 1 x User manual
- 1 x Carrying case
Features:
- Designed for non-destructive testing and inspection
- Measures coating thickness on Fe and nFe metals
- Displays measuring units in μm, mm or mils
- Saves up to 2000 measurements to internal memory
- Practical V-groove on the measuring head
- One- to four-point and zero calibration
- Comfortable one-handed operation
- Programmable alarm limits
- High measuring range
- High measuring accuracy
- Automatic shutdown

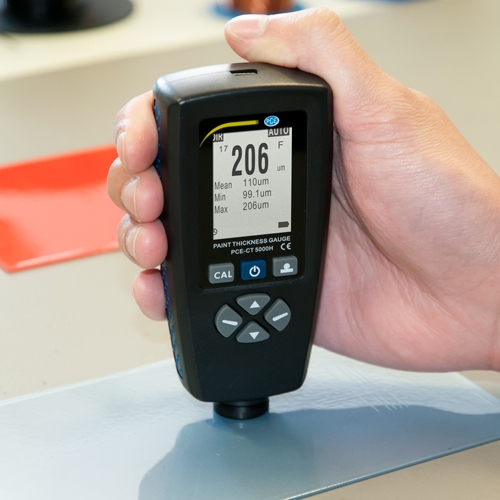

PCE-CT 5000H is a thickness measuring instrument used for the rapid determination of coating thicknesses on ferrous (Type F) and non-ferrous (Type N) metals. The coating thickness gauge automatically detects the type of metal to be measured. The PCE-CT 5000H coating thickness gauge uses magnetic induction (ferrous) or eddies current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum. This thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications. Alarm limits can be set in the coating thickness gauge to notify the user when a coating is too thick or too thin. If a coating thickness measurement falls outside the established limits, a message appears on the display to alert the user.
Technical details
- Weight 92 g / < 1 lb
- Dimensions 110 x 53 x 24 mm / 4.33 x 2.09 x 0.95 in
- Power Supply 2 x 1.5V AAA batteries
- Calibration One-point to four-point calibration, zero calibration
- Standards CE ROHS FCC
- Package Included Type F and Type N Probe
- Data Interface Data transfer via USB
- Probe Type F and Type N
- Data Storage Direct measurement (no measurement data storage), four data groups (automatic measurement data storage of up to 2000 measured values)
- Storage Conditions -10 - 60°C / 14 - 140°F
- Operating Conditions 0 - 50°C / 32 - 122°F, 20 - 90% RH
- Alarm Alarm limits are adjustable, the alarm symbol is displayed when limits are exceeded
- Measurement Units µm, mm, mils
- Material housing ABS plastic
- Measuring Range Type F 0 - 5000 µm / 0 - 5 mm / 0 - 196 mils
- Measuring Accuracy Type F ± (2% + 1 µm)
- Resolution Type F 0 - 99.9 µm: 0.1 µm, 100 - 999 µm: 1 µm 1000 µm: 0.01 mm
- Measuring Principle Type F Magnetic induction
- Smallest Thickness of The Base Material 0.02 mm, 0.05 mm
- Measuring Range Type N 0 - 3000 µm / 0 - 3 mm / 0 - 118 mils
- Measuring Accuracy Type N ± (2% + 1 µm)
- Resolution Type N 0 - 99.9 µm: 0.1 µm, 100 - 999 µm: 1 µm > 1000 µm: 0.01 mm
- Measuring Principle Type N Eddy current

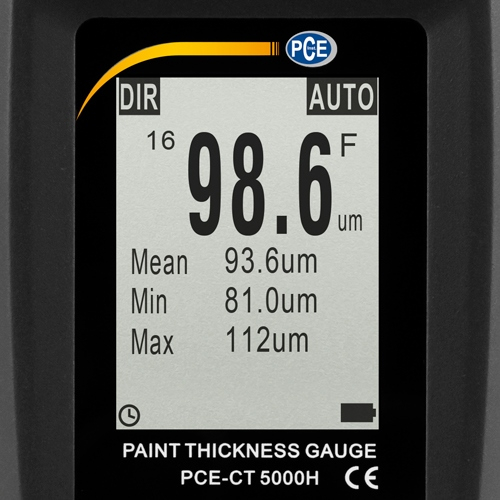

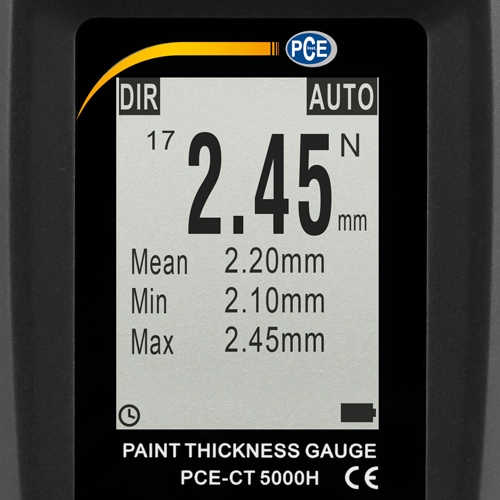

- Statistical Functions Number of measurements, average, minimum, maximum, standard deviation
- Minimum Radius of Curvature (Convex) 5 mm / 0.2 in
- Minimum Radius Of Curvature (Concave) 25 mm / 1 in
- Smallest Measuring Surface Diameter of 20 mm / 0.8 in
- Maximum Measuring Rate 2 x per second
- Menu LanGauges German, English, Russian, Chinese
