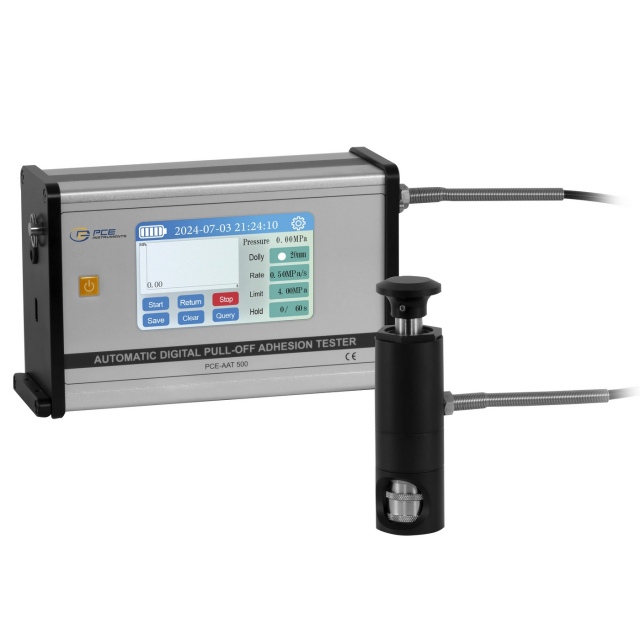

PCE Instruments PCE-AAT 500 Automatic Digital Adhesion Tester

PCE-AAT 500 Includes Only:

• 1 x Adhesion Tester PCE-AAT 500
• 1 x 20 mm base for measuring heads
• 20 x 20 mm measuring heads
• 2 x cutting tool for 20 mm measuring heads

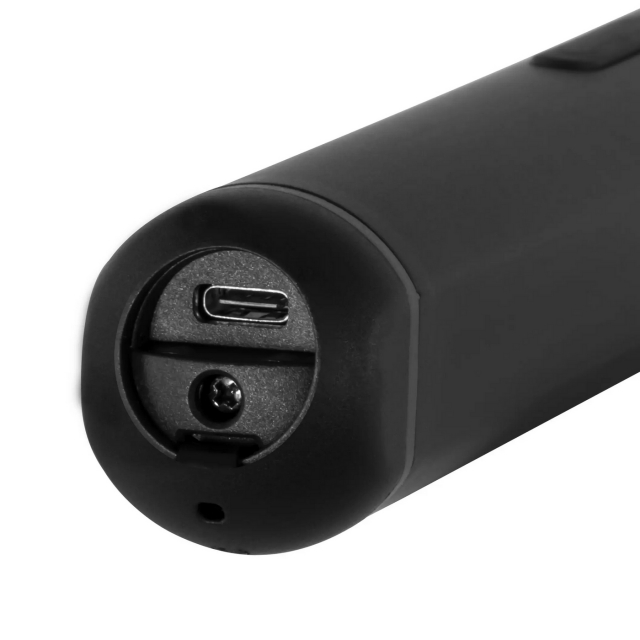

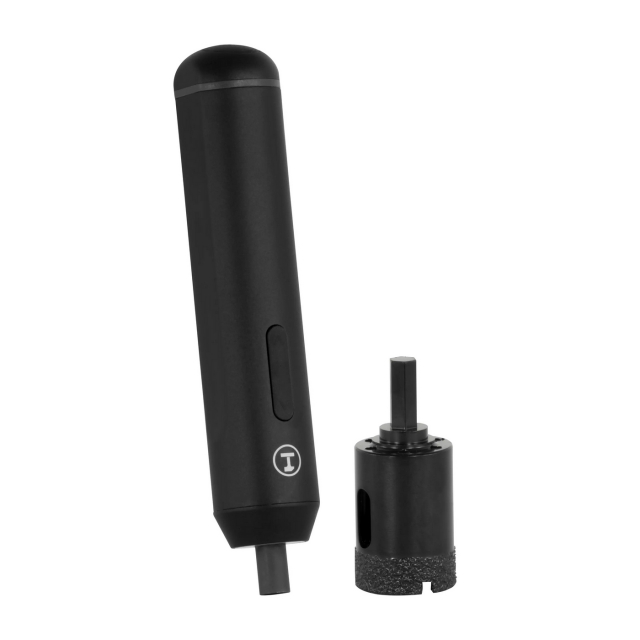

• 1 x electric cutting tool

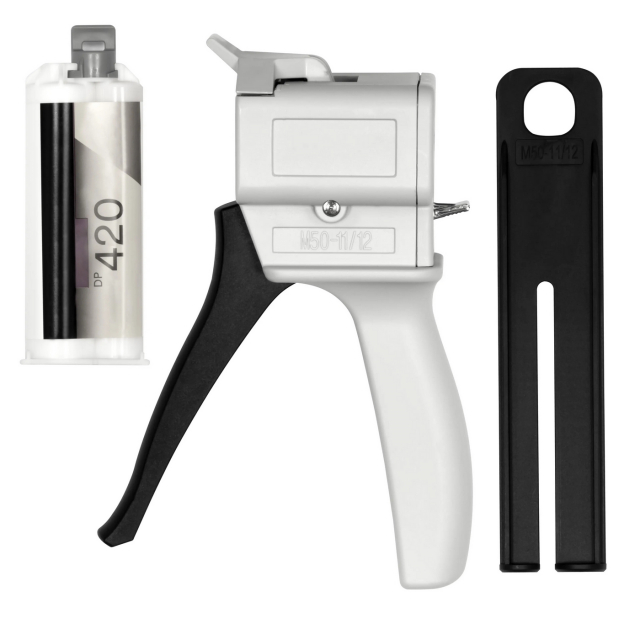

• 1 x two-component adhesive

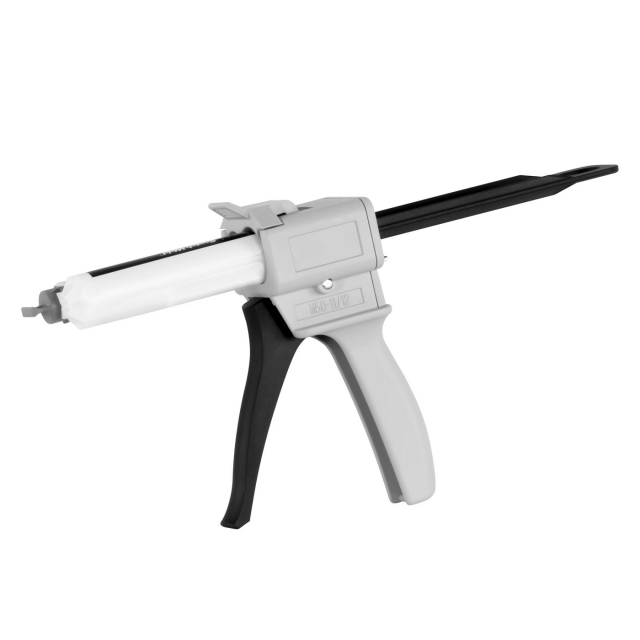

• 1 x manual gun for dual cartridges
• 1 x 12.6 V / 1.5 A mains adaptor
• 1 x 5 V / 1 A mains adaptor (for electric cutting tool)
• 1 x micro USB cable
• 1 x USB-A cable
• 1 x shoulder strap
• 1 x 3 mm Allen key
• 1 x user manual
• 1 x carrying case

Features:

• Electronically controlled hydraulic pump
• Adjustable pulling speed, limit and holding time
• Graphical measuring process
• 5-inch touch screen
• USB interface
• Storage in CSV file format
• Adhesion Tester with accessories
• Robust and dust-tight housing

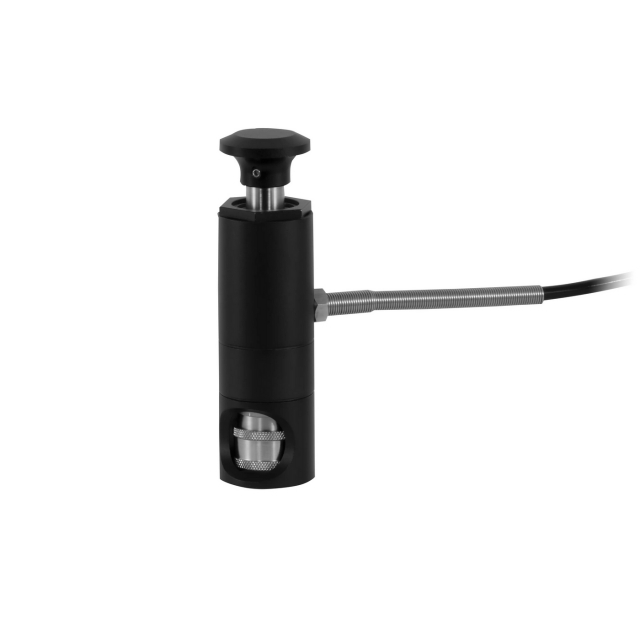

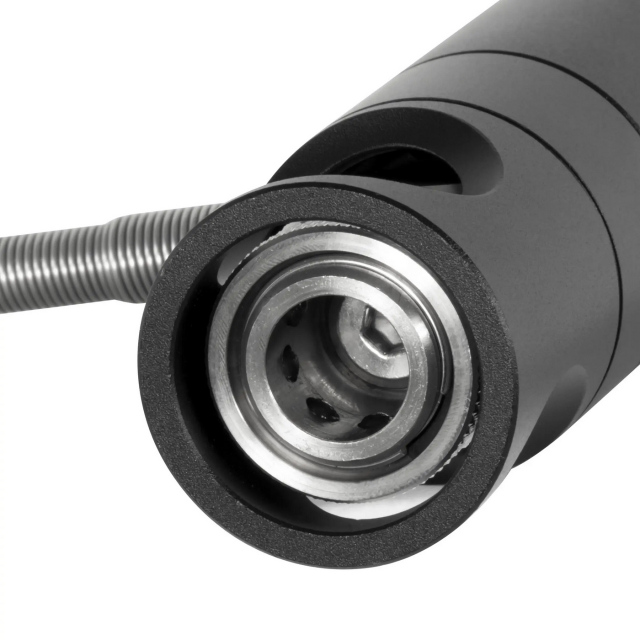

• Self-aligning measuring head
• Complies with ISO 4624/16276-1, GB/T 5210 and ASTM D4541/D7234

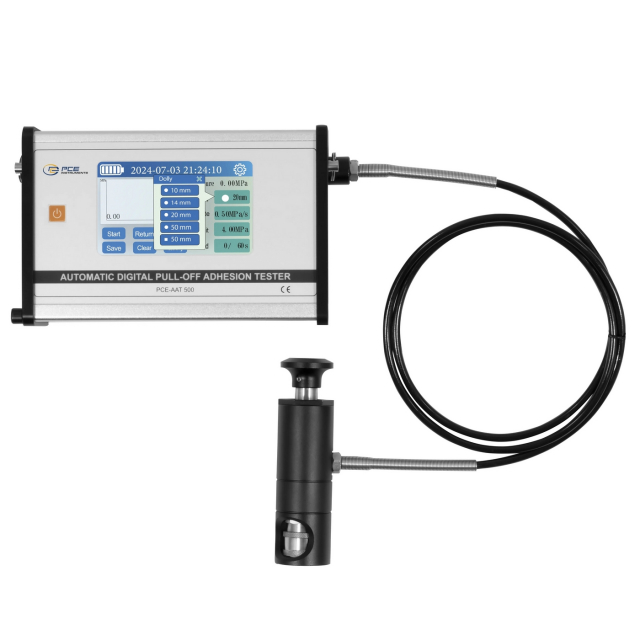

The Adhesion Tester is a portable, hand-operated device that measures the force required to pull a specific test diameter of coating from the substrate using hydraulic pressure. The measured pressure is displayed on the 5-inch touch screen and represents the adhesion strength of the coating to the substrate. This device evaluates the adhesion (peel strength) of a coating by determining the maximum tensile force it can withstand before it peels off. The Adhesion Tester visualises fractures caused by cracks along the weakest layer in the system of carrier, adhesive, coating layers, and substrate.

Equipped with an electronically controlled hydraulic pump, Adhesion Tester enables precise and repeatable application of the required tensile force. Thanks to the selection of different dolly sizes, the device can be flexibly adapted to different test requirements, making it particularly versatile. The pulling speed, load limit and holding time can be customised to meet specific requirements for different materials and applications.

In addition, the Adhesion Tester offers a USB interface for easy transfer of measurement data to external devices. The data can be saved in a practical CSV format for easy further processing and analysis. You can find additional and replacement measuring heads as well as the right base for your needs in the accessories.
