PCE Instruments PCE-3500 Ultrasonic Hardness Tester 50N Probe

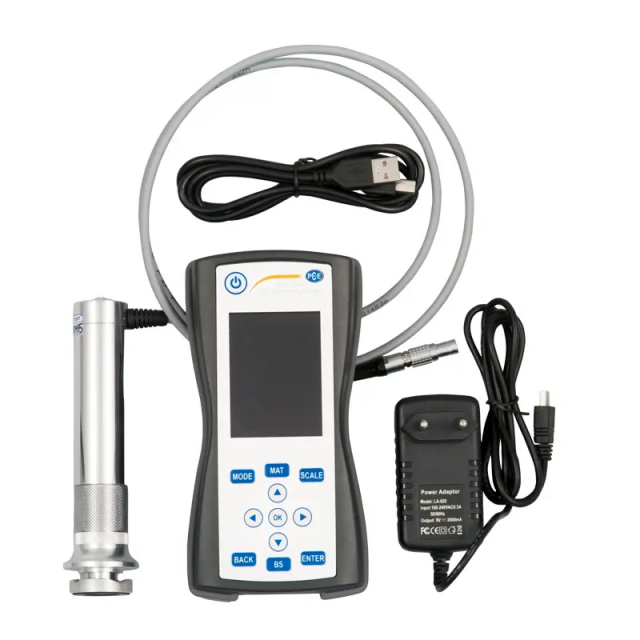

PCE-3500 Includes Only:

• 1 x UCI hardness tester PCE-3500

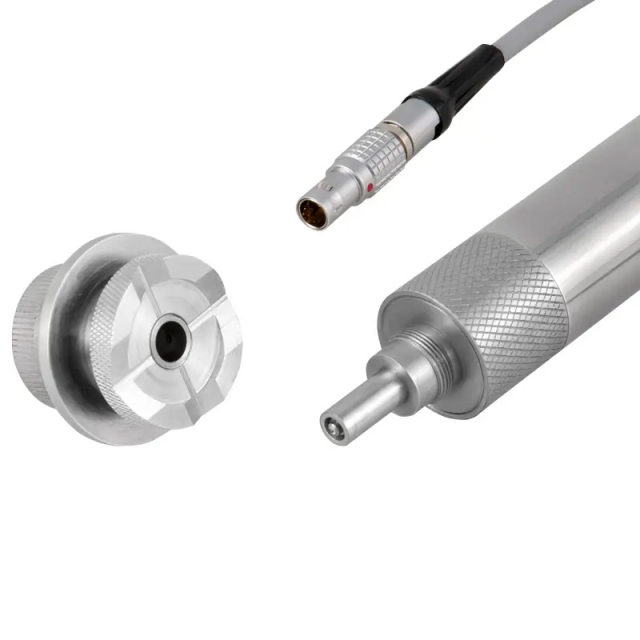

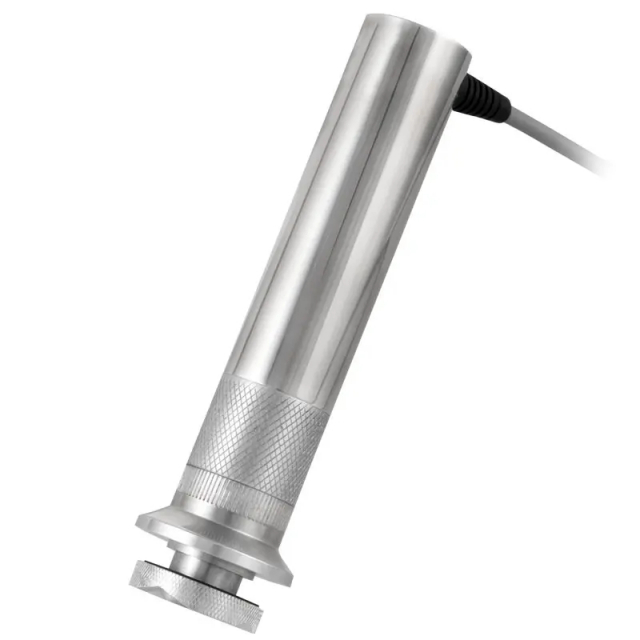

• 1 x 50 N UCI probe
• 1 x 2 GB SD card
• 1 x USB cable
• 1 x PC software
• 1 x Instruction manual

Features:

• Measurement in line with UCI procedure
• Tests HRC, HRB, HV, HB, MPa
• Measurement direction 360°
• Large color LC display
• Memory function via SD card
• Different probes can be attached
• Characteristic curve of material pre-calibrated
• Evaluation via software possible

UCI hardness tester PCE-3500 for non-destructive hardness measurement / Large color LC display / Including software / HV, HRC, HRB, HB and MPa scale /With memory function / Probes interchangeable / 136 ° Vickers crystal

The UCI hardness tester PCE-3500 has been designed for the non-destructive hardness measurement of metallic components. The UCI hardness tester works on the basis of the Ultrasonic Contact Impedance test procedure. This UCI procedure works as follows: a Vickers crystal at the probe is stimulated with its self-resonance. By pushing the probe, the vibration frequency is reduced depending on the hardness of the surface and on the e module of the material and of the contact surface. The hardness of the surface can be determined on the basis of the frequency shift, taking the characteristic curve of the material into consideration.

The UCI hardness tester works non-destructively. There is a microscopically slight pressure against the surface, however, this is normally not visible. Due to the low penetration depth of the Vickers crystal, this UCI hardness tester is especially suitable for edge layer hardened components such as, for example, those that emerge when nitriding or induction hardening. It is typically used for punching tools, presses, thin-walled components, cog wheels, turbine blades, camshafts or weld seams. The UCI hardness tester is also suitable for many other hardness testing applications. It has exchangeable probes with different pressure forces and can therefore cover diverse applications.

After measuring the hardness of a component, the UCI hardness tester PCE-3500 shows different statistical values such as the MAX / MIN values and average values. Moreover, the standard deviation and further coefficients can be determined. A bar chart can be indicated. Since the UCI hardness tester is equipped with an internal memory, the measured data can be evaluated by means of a software.
