PCE Instruments PCE-2900 Durometer, USB / Wifi for Data Transmission
Brand New
Manufacturer warranty Description
PCE Instruments, PCE-2900, Durometer, USB and Wifi for Data Transmission
PCE-2900 Includes Only:
- 1 x Durometer PCE-2900
- 1 x Impactor D
- 1 x Test block
- 2 x 1.5V AA batteries
- 1 x User manual
- 1 x Carry case
Features:
- USB and WiFi for data transmission
- Large, bright touch-screen LCD display
- Large measuring range
- Measurement is possible in every position
- Hardness scales (HRC, HRB, HV, HB, HS)
- For all metallic materials

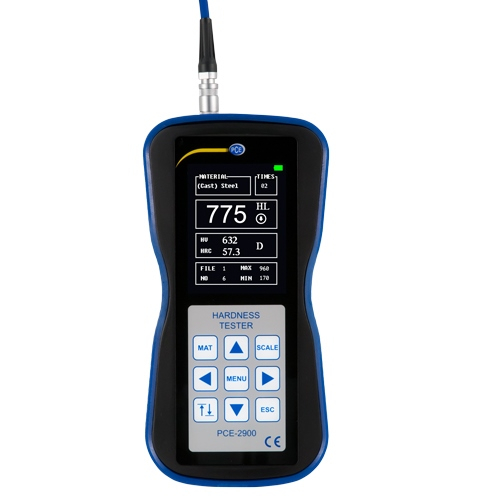

The durometer PCE-2900 has been developed for hardness measurements on metallic materials. The durometer measures the material hardness in Vickers, Brinell, Rockwell, Leeb, and Shore. The durometer PCE-2900 measures the hardness according to the Leeb rebound principle. An impactor bounces on the workpiece via a firing pin and the metal hardness is measured via the rebound. The PCE-2900 durometer is equipped with a backlit color display. Likewise, the buttons on the PCE-2900 are illuminated. Thus, the display can be read well even in low light conditions. The impact device is connected to the hardness tester via a cable. The durometer PCE-2900 has an internal memory of 6 x 100 measurement sets. The memory thus allows documentation of the measured values. Via the integrated USB and WiFi interface, the measured values can be transferred from the durometer via software to a PC. The durometer is powered by 1.5V AA batteries and has a battery life of about 50 hours.
Technical details
- Interface USB, WiFi
- Weight 350 g / < 1 lb
- Dimensions 160 x 80 x 35 mm / 6.3 x 3.1 x 1.3 in
- Power Supply 2 x 1.5V AA batteries
- Measuring Range 170 - 960 HLD
- Display Colour LCD
- Storage Conditions -30 - 60°C / -22 - 140°F max. 90% r.H.
- Operating Conditions 10 - 50°C / 50 - 122°F max. 90% r.H.
- Operating Time ca. 50 hours
- Reproducibility ± 6 HLD
- Measuring direction 360°
- Minimum weight of the workpiece Direct measurement: 5 kg / 11 lbs Tied measurement: 2 - 5 kg / 4.4 - 11 lbs With coupling gel: 0.05 - 2 kg / 0.1 - 4.4 lbs
- Minimum thickness of the workpiece Direct measurement: > 5mm / > 0.19 in With coupling gel: 0.8 - 5 mm / 0.03 - 0.19 in
- Internal measured value memory 600 records in 6 files
- Impactor Type D
- Adjustable Scales Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore
- Surface Quality Ra of the Workpiece 2 µm
