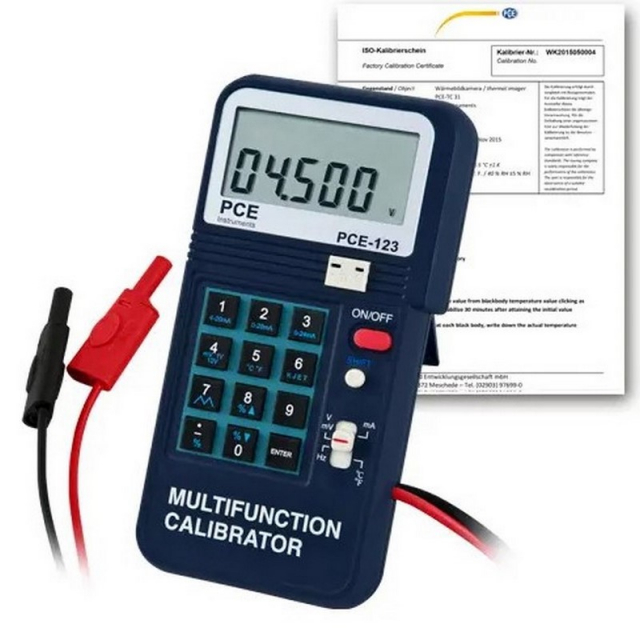

PCE Instruments PCE-123-ICA Multifunction Current Calibrator

Brand: PCE Instruments

Part #:

PCE-123-ICA

Condition:

Brand New

Check availability

Manufacturer warranty

Description

PCE Instruments, PCE-123-ICA, Current Calibrator incl. ISO Calibration Certificate

PCE-123-ICA Includes Only:

1 x PCE-123-ICA Current Calibrator
1 x Carrying case
1 x Type-k adaptor
6 x Batteries
1 x Test cables with alligator clips
1 x User's manual
1 x ISO Calibration Certificate

Features:

4 to 20mA (1kΩ, 24V power)
0 to 100.00 mV / 0 to 1,0000V / 0 to 12,000V
Type-K, J, E, T temperature thermocouple sensors (°C or °F)
Frequency range 1 to 62,500Hz
Basic accuracy 0.025 %
Easy operation via keypad
Automatic ramp function
Selectable between 0 to 20mA/ 0 to 24mA
Input 0 to 100% (mA, mV, V )
Alarm beep 'open' (mA) or 'short circuit' (mV, V)

Digital, electrical, current, voltage or process calibrator, tester or multimeter for simulation and measurement of standardized electrical signals / Control signals as well as frequencies and temperature / Incl. ISO Calibration Certificate

The PCE-123 is a network-independent multifunction calibrator used to test and calibrate a variety of parameters of controllers and measuring instruments. Offering a high level of accuracy for an affordable price, this easy-to-use calibrator provides electrical (mA, mV, V and frequency in Hz) and temperature (in °C or °F) output signals, making the calibrator useful in a wide range of applications.

The calibrator also has automatic step and ramp functions as well as the possibility to pre-select the output signal steps (0 … 100 %) by using the arrow keys and to directly specify an output value (e. g. 13.8 mA). Operation via the keypad is very easy and intuitive. The PCE-123 multifunctional calibrator is an important tool in any electronics workshop as well as in any measuring and control department in trade, industry and automation.

For more information, please see Manual

Check availability

Technical details

Main features

Power 1 9V battery or 6 x 1.5V batteries
Weight 330 g / 11.6 oz
Dimensions 88 x 168 x 26 mm / 3.4 x 6.6 x 1 in
Accuracy +-0.025% +-3uA, +- 0.05% +-30 uV+- 0.05% +-3 mV+- 0.05% +-300 uV, K: +- 1.1°C / 2°F and +- 0.8°C / 1.4°F J: +- 0.9°C / 1.6°F and +- 0.7°C / 1.3°F E: +- 0.9°C / 1.6°F and +- 0.7°C / 1.3°F T: +- 1.0°C / 1.8°F and +- 0.8°C / 1.4°F, +-0.04Hz
Range 1 to 125Hz and 126 to 62.5kHz, 4 to 20-mA / 0 to 20-mA / 0 to 24-mA
Display 5 position LCD
Resolution 1 to 125Hz / 1Hz 126 to 62.5kHz / 604 readings, 1uA, 10 uV1 mV1.0000 V, 1°C / 1.8°F (across entire range)
Storage Conditions -20 - 60°C / -4 - 140 °F; <85% r.h.
Operating Conditions 0 - 50°C / 32 - 122°F, <85% r.h.
Consumption 60-mA to 180-mA (depending on output)
Ranges 0 to 100.00 mV0 to 10.000 V0 to 1.0000 V, K: -200 - 0°C / -328 - 32°F and 0 - 1370°C / 32 - 2498°F J: -100 - 0°C / -148 - 32°F and 0 - 760°C / 32 - 1400°F E: -10 - 0°C / 14 - 32°F and 0 - 700°C / 32 - 1292°F T: -200 - 0°C / -328 - 32°F and T: 0 - 400°C / 32 - 752°F
Selection 604 frequencies
Battery Indicator 5.5V for 150-mA
Alert Beeps when there is a short circuit or ouput current >1mA ., Beeps when there is a short circuit or ouput current >10mV.
