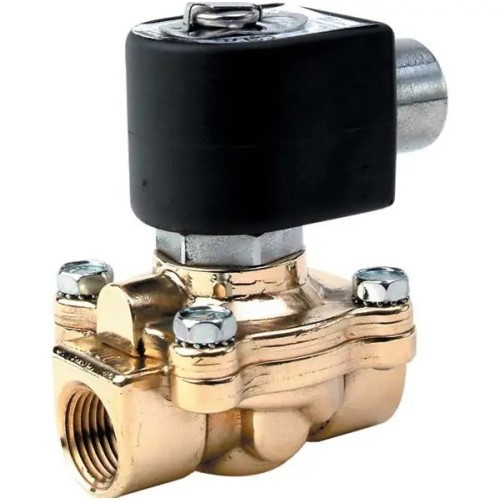

Parker Hannifin, 70249131, 24 VDC 3/4" NPT Port Brass Two-Way Internally Piloted Diaphragm Solenoid Valve

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Valve Type	Two-Way Internally Piloted Diaphragm
Port Size	3/4 NPT
Maximum Working Pressure (psi)	40.00
Valve Unactuated State	Normally Closed
Body Material	Brass
Seal Material	NBR
Voltage	24 VDC
CV Factor NC	5.00
Minimum Working Pressure (psi)	5.0
Maximum Working Pressure (psi)	40
Special Item Information	Complete Assembly Pressure Vessel & Coil
Height (Inch)	4.34
Length (Decimal Inch)	2.910
Orifice Size	3/4

Valve Type	Two-Way Internally Piloted Diaphragm
Port Size	3/4 NPT
Maximum Working Pressure (psi)	40.00
Valve Unactuated State	Normally Closed
Body Material	Brass
Seal Material	NBR
Voltage	24 VDC
CV Factor NC	5.00
Minimum Working Pressure (psi)	5.0
Maximum Working Pressure (psi)	40
Special Item Information	Complete Assembly Pressure Vessel & Coil
Height (Inch)	4.34
Length (Decimal Inch)	2.910
Orifice Size	3/4

Note: Please read description carefully. Do not base your order on the picture presented.
