Stroke Length:: Stroke Length: 1"

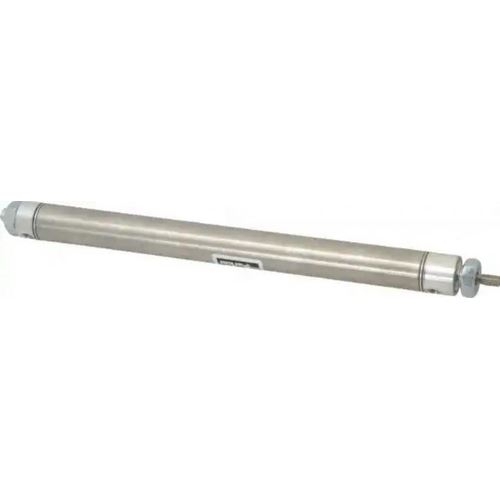

Parker Hannifin, .56NLPR91.00, 1" Stroke x 9/16" Bore Single Acting Air Cylinder

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type	Single Acting
Bore Size (Inch)	9/16
Bore Size (Decimal Inch)	0.56
Rod Diameter (Decimal Inch)	0.250
Stroke Length (Inch)	1
Mounting Style	Head or Cap
Port Size	10-32
Port Type	UNF
Length (Decimal Inch)	2.125
Material	Steel/Aluminum
Seal Material	Buna-N
Rod Thread Size	8-32
Style	Female

Product Details

Type	Single Acting
Bore Size (Inch)	9/16
Bore Size (Decimal Inch)	0.56
Rod Diameter (Decimal Inch)	0.250
Stroke Length (Inch)	1
Mounting Style	Head or Cap
Port Size	10-32
Port Type	UNF
Length (Decimal Inch)	2.125
Material	Steel/Aluminum
Seal Material	Buna-N
Rod Thread Size	8-32
Style	Female

Note: Please read description carefully. Do not base your order on the picture presented.
