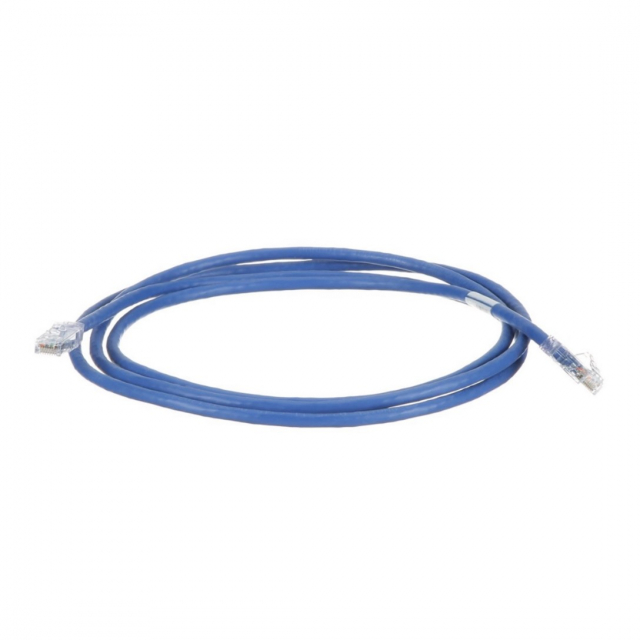

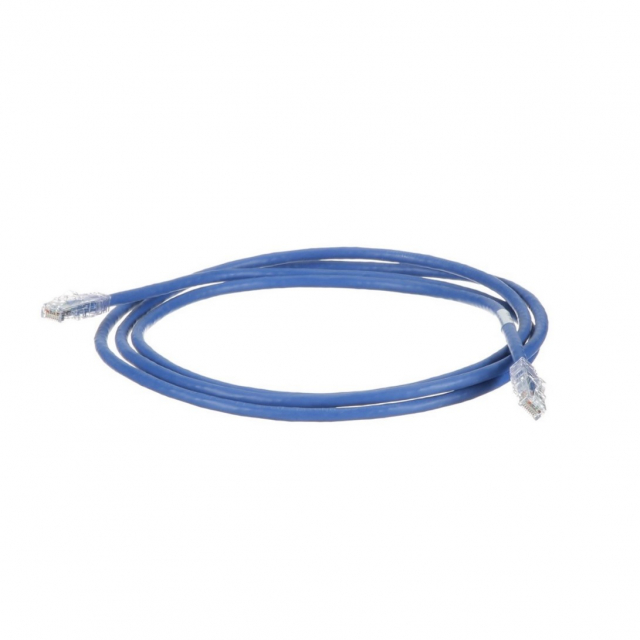

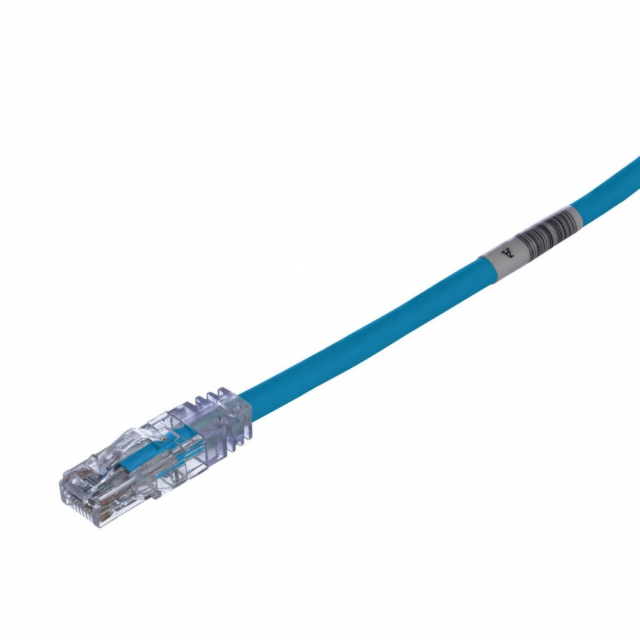

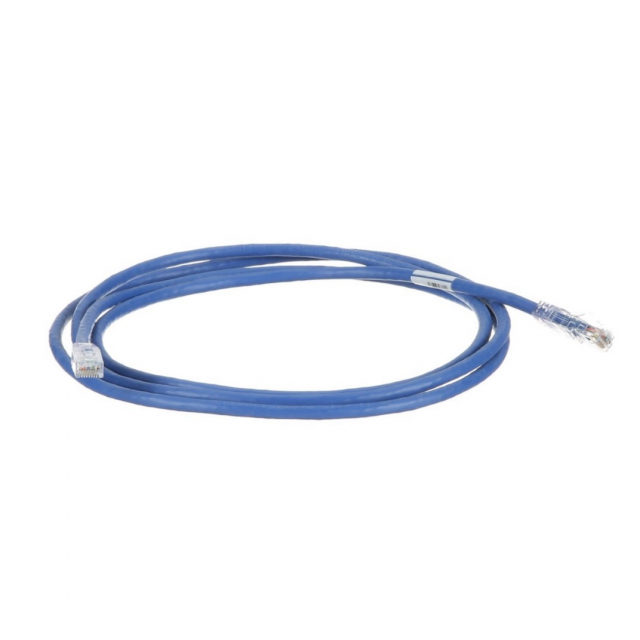

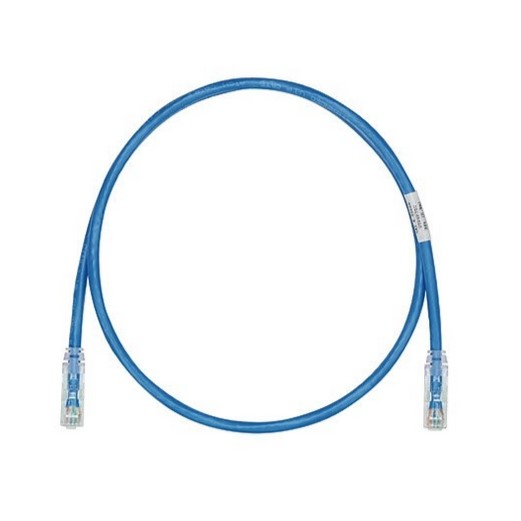

Buy Panduit UTPSP7BUY, TX6 Cat 6 24 AWG UTP Copper Patch Cord 7 ft Blue

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Configuration:: Configuration: Overall Length: 7 ft / Color: Blue

Boost your network's speed and reliability with durable Category 6A UTP patch cord. Features easy installation and efficient cable management when used with identification system.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Product Type	Patch Cord
Sub Brand	Pan-Net
Application	(1) Ethernet 10BASE-T (2) 100BASE-T (Fast Ethernet) (3) 1000BASE-T (Gigabit Ethernet) (4) 10GBASE-T (10 Gigabit Ethernet over limited distances as specified in industry 10GBASE-T standards) (5) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM (6) Token Ring 4/16 (7) Digital video and broadband/baseband analog video (8) Voice over Internet Protocol (VoIP)
Conductor Gauge	24 AWG
Performance Level	Category 6
Conductor Type	Stranded
Cable Construction	U/UTP
Shield Type	Unshielded (UTP)
Plug Housing Material	Polycarbonate
Jacket Material	PVC
Connector 1 Type	Modular Plug
Connector 2 Type	Modular Plug
Overall Length (ft.)	7
Overall Length (m)	2.13
Nominal Cable Outside Diameter (In.)	0.235
Nominal Cable Outside Diameter (mm)	6
Wiring Scheme	T568B
Maximum Operating Temperature (°C)	60
Maximum Operating Temperature (°F)	140
Minimum Operating Temperature (°C)	-10
Minimum Operating Temperature (°F)	14
Maximum Storage Temperature (°C)	70
Maximum Storage Temperature (°F)	158
Minimum Storage Temperature (°C)	-40
Minimum Storage Temperature (°F)	-40
Boot Color	Clear
Color	Blue
Flammability Rating	CM
Standards Met	Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E standards; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863 approved; Rated for 2500 cycles; Supports IEEE 802.3af, 802.3at and 802.3bt Type 3 and Type 4 PoE applications; CE Compliant; RoHS Compliant
IEC Variant	60603-7
PoE Compatibility	PoE / PoE+ / PoE++
Plug Type	8 Position
RapidID Enabled	Yes
Part Features	100% performance tested for wire map, NEXT and return loss; Centered de-embedded plug; Integral pair manager; Patented tangle-free latch

Product Details

Product Type	Patch Cord
Sub Brand	Pan-Net
Application	(1) Ethernet 10BASE-T (2) 100BASE-T (Fast Ethernet) (3) 1000BASE-T (Gigabit Ethernet) (4) 10GBASE-T (10 Gigabit Ethernet over limited distances as specified in industry 10GBASE-T standards) (5) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM (6) Token Ring 4/16 (7) Digital video and broadband/baseband analog video (8) Voice over Internet Protocol (VoIP)
Conductor Gauge	24 AWG
Performance Level	Category 6
Conductor Type	Stranded
Cable Construction	U/UTP
Shield Type	Unshielded (UTP)
Plug Housing Material	Polycarbonate
Jacket Material	PVC
Connector 1 Type	Modular Plug
Connector 2 Type	Modular Plug
Overall Length (ft.)	7
Overall Length (m)	2.13
Nominal Cable Outside Diameter (In.)	0.235
Nominal Cable Outside Diameter (mm)	6
Wiring Scheme	T568B
Maximum Operating Temperature (°C)	60
Maximum Operating Temperature (°F)	140
Minimum Operating Temperature (°C)	-10
Minimum Operating Temperature (°F)	14
Maximum Storage Temperature (°C)	70
Maximum Storage Temperature (°F)	158
Minimum Storage Temperature (°C)	-40
Minimum Storage Temperature (°F)	-40
Boot Color	Clear
Color	Blue
Flammability Rating	CM
Standards Met	Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E standards; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863 approved; Rated for 2500 cycles; Supports IEEE 802.3af, 802.3at and 802.3bt Type 3 and Type 4 PoE applications; CE Compliant; RoHS Compliant
IEC Variant	60603-7
PoE Compatibility	PoE / PoE+ / PoE++
Plug Type	8 Position
RapidID Enabled	Yes
Part Features	100% performance tested for wire map, NEXT and return loss; Centered de-embedded plug; Integral pair manager; Patented tangle-free latch

Note

Note: Please read description carefully. Do not base your order on the picture presented.
