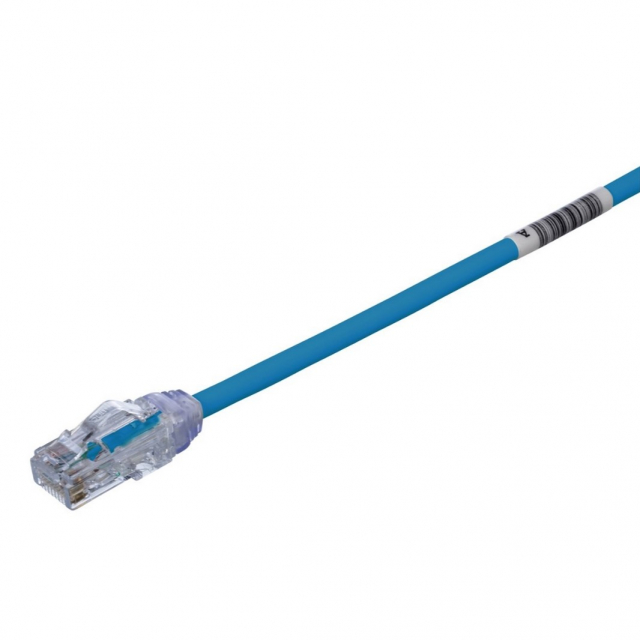

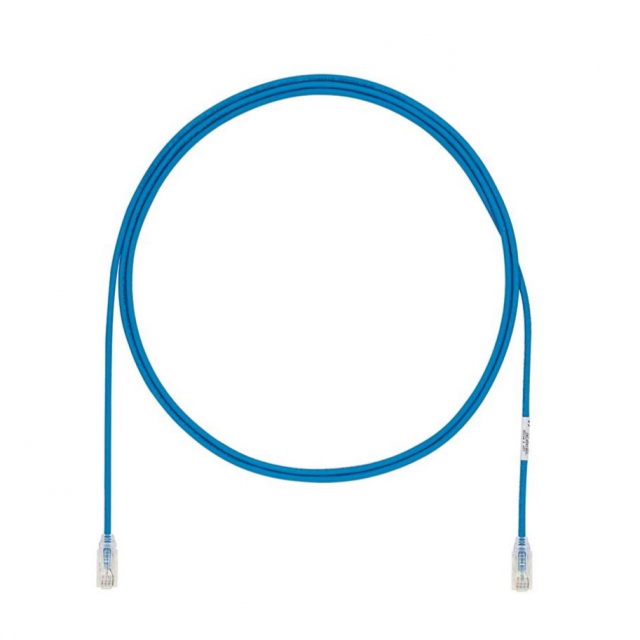

Panduit UTP28X25BU TX6A Cat 6A 28 AWG Copper Patch Cord 25 ft Blue

Configuration: Overall Length: 25 ft / Color: Blue
  • Brand Panduit
  • Part # UTP28X25BU
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Configuration:
Configuration: Overall Length: 25 ft / Color: Blue

Boost your network's speed and reliability with Category 6 UTP patch cord. Features easy installation and efficient cable management when used with identification system.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller

Technical Details

Reviews
Product TypePatch Cord
Sub BrandPan-Net
Application(1) 10GBASE-T Ethernet
(2) Data center I/O Consolidation
(3) Data center server virtualization
(4) Backbone aggregation
(5) Parallel processing and high speed computing
Conductor Gauge28 AWG
Performance LevelCategory 6A
Conductor TypeSolid
Cable ConstructionU/UTP
Shield TypeUnshielded (UTP)
Plug Housing MaterialPolycarbonate
Jacket MaterialLSZH Material
Connector 1 TypeModular Plug
Connector 2 TypeModular Plug
Overall Length (ft.)25
Overall Length (m)7.62
Nominal Cable Outside Diameter (In.)0.185
Nominal Cable Outside Diameter (mm)4.7
Wiring SchemeT568B
Maximum Operating Temperature (°C)60
Maximum Operating Temperature (°F)140
Minimum Operating Temperature (°C)-10
Minimum Operating Temperature (°F)14
Maximum Storage Temperature (°C)70
Maximum Storage Temperature (°F)158
Minimum Storage Temperature (°C)-40
Minimum Storage Temperature (°F)-40
Boot ColorClear
ColorBlue
Flammability RatingCM/LSZH
Standards MetExceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886); RoHS Compliant; Supports IEEE 802.3af/802.3at and 802.3bt Type 3 and Type 4 PoE applications; wired to be compatible with both T568A and T568B wiring schemes
IEC Variant60603-7
PoE CompatibilityPoE / PoE+ / PoE++
Plug Type8 Position
RapidID EnabledYes
Part Features100% performance tested for wire map, NEXT and return loss; Centered de-embedded plug; Integral pair manager; Patented tangle-free latch
Product Details
Product TypePatch Cord
Sub BrandPan-Net
Application(1) 10GBASE-T Ethernet
(2) Data center I/O Consolidation
(3) Data center server virtualization
(4) Backbone aggregation
(5) Parallel processing and high speed computing
Conductor Gauge28 AWG
Performance LevelCategory 6A
Conductor TypeSolid
Cable ConstructionU/UTP
Shield TypeUnshielded (UTP)
Plug Housing MaterialPolycarbonate
Jacket MaterialLSZH Material
Connector 1 TypeModular Plug
Connector 2 TypeModular Plug
Overall Length (ft.)25
Overall Length (m)7.62
Nominal Cable Outside Diameter (In.)0.185
Nominal Cable Outside Diameter (mm)4.7
Wiring SchemeT568B
Maximum Operating Temperature (°C)60
Maximum Operating Temperature (°F)140
Minimum Operating Temperature (°C)-10
Minimum Operating Temperature (°F)14
Maximum Storage Temperature (°C)70
Maximum Storage Temperature (°F)158
Minimum Storage Temperature (°C)-40
Minimum Storage Temperature (°F)-40
Boot ColorClear
ColorBlue
Flammability RatingCM/LSZH
Standards MetExceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886); RoHS Compliant; Supports IEEE 802.3af/802.3at and 802.3bt Type 3 and Type 4 PoE applications; wired to be compatible with both T568A and T568B wiring schemes
IEC Variant60603-7
PoE CompatibilityPoE / PoE+ / PoE++
Plug Type8 Position
RapidID EnabledYes
Part Features100% performance tested for wire map, NEXT and return loss; Centered de-embedded plug; Integral pair manager; Patented tangle-free latch
Note

Note: Please read description carefully. Do not base your order on the picture presented.
