Buy Panduit P06B50M, Basic Power Distribution Unit

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

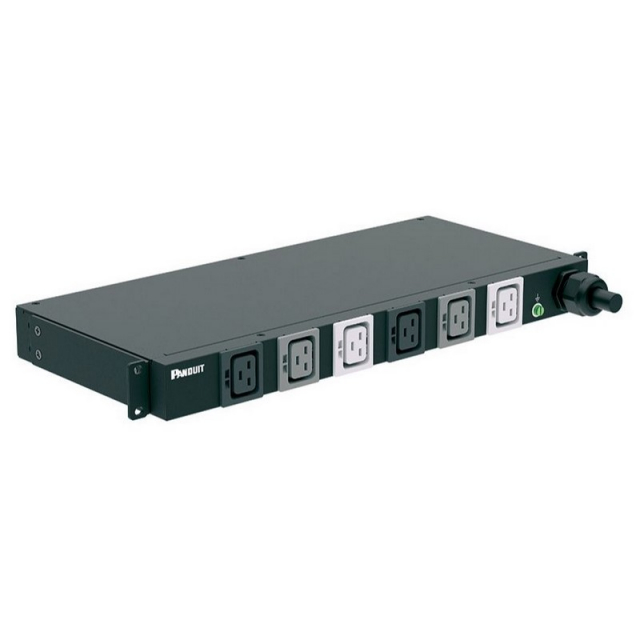

Basic PDU - 30A, 208V horizontal 3 Phase WYE PDU has (6) C19 receptacles, a 10' (3m) power cord with a NEMA L21-30P plug, and measures 1.7"H x 17.5"W x 7.8"D (43.2mm x 444.5mm x 198.1mm). UL Listed. Color: Black.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Mount Orientation	Horizontal
Plug Type	NEMA L21-30P
Input Voltage (V)	208
Amperage (A)	30
Number of Outlets	(6)C19
Output Voltage (V)	208
Phase	3 Phase
Cable Length (ft.)	9.84
Cable Length (m)	3
Overall Depth (In.)	7.8
Overall Depth (mm)	198.1
Overall Height (In.)	1.7
Overall Height (mm)	43.2
Overall Width (In.)	17.5
Overall Width (mm)	444.5
Overall Length (In.)	1.7
Overall Length (mm)	43.2
Power Rating (kW)	10
Standards Met	UL Listed
Rack PDU Type	Basic

Product Details

Mount Orientation	Horizontal
Plug Type	NEMA L21-30P
Input Voltage (V)	208
Amperage (A)	30
Number of Outlets	(6)C19
Output Voltage (V)	208
Phase	3 Phase
Cable Length (ft.)	9.84
Cable Length (m)	3
Overall Depth (In.)	7.8
Overall Depth (mm)	198.1
Overall Height (In.)	1.7
Overall Height (mm)	43.2
Overall Width (In.)	17.5
Overall Width (mm)	444.5
Overall Length (In.)	1.7
Overall Length (mm)	43.2
Power Rating (kW)	10
Standards Met	UL Listed
Rack PDU Type	Basic

Note

Note: Please read description carefully. Do not base your order on the picture presented.
