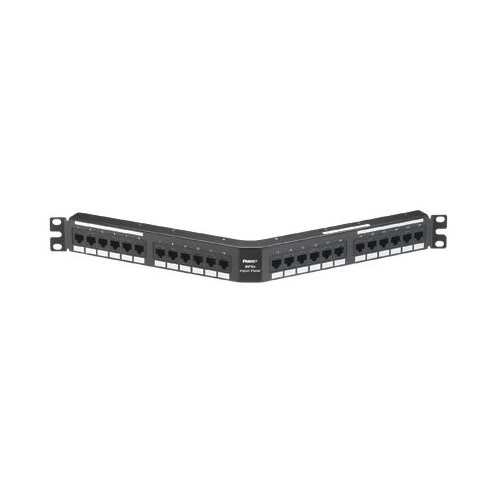

Panduit NKA6PPG24Y Angled Punchdown Patch Panel, 24 Ports

  • Brand Panduit
  • Part # NKA6PPG24Y
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

The Cat 6 UTP Angled Punchdown Patch Panel terminates 4-pair, 22-26 AWG, twisted pair cable. These Cat 6 patch panels mount to 19 inch and 23 inch racks and has 24 ports. Each module is 100% factory tested to exceed industry standard performance requirements, and are individually serialized for traceability. The angled design facilitates proper bend radius control and minimizes the need for horizontal cable managers. This punchdown patch panel is 1 RU, made of steel, and is black.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller

Technical Details

Reviews
Termination StylePunchdown
Patch Panel StyleAngled
Performance LevelCategory 6
MaterialCRS
Wiring SchemeT568A/T568B
Number of Ports24
Module TypeRJ45
Number of Rack Units1
Overall Width (In.)19
Overall Width (mm)482.6
Overall Depth (In.)4.75
Overall Depth (mm)120.6
Overall Height (In.)1.72
Overall Height (mm)43.7
Identification TypeAdhesive Label
ColorBlack
Standards MetMeets all TIA/EIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel requirements at swept frequencies up to 250 MHz, Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6 component requirements at swept frequencies up to 250 MHz, Complies with ANSI/TIA-1096A (formerly FCC Part 68); Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, UL 1863 approved, and RoHS Complaint
Maximum Operating Temperature (°C)65
Maximum Operating Temperature (°F)149
Minimum Operating Temperature (°C)-10
Minimum Operating Temperature (°F)-14
Overall Length (In.)4.75
Overall Length (mm)120.6
Product Details
Termination StylePunchdown
Patch Panel StyleAngled
Performance LevelCategory 6
MaterialCRS
Wiring SchemeT568A/T568B
Number of Ports24
Module TypeRJ45
Number of Rack Units1
Overall Width (In.)19
Overall Width (mm)482.6
Overall Depth (In.)4.75
Overall Depth (mm)120.6
Overall Height (In.)1.72
Overall Height (mm)43.7
Identification TypeAdhesive Label
ColorBlack
Standards MetMeets all TIA/EIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel requirements at swept frequencies up to 250 MHz, Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6 component requirements at swept frequencies up to 250 MHz, Complies with ANSI/TIA-1096A (formerly FCC Part 68); Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, UL 1863 approved, and RoHS Complaint
Maximum Operating Temperature (°C)65
Maximum Operating Temperature (°F)149
Minimum Operating Temperature (°C)-10
Minimum Operating Temperature (°F)-14
Overall Length (In.)4.75
Overall Length (mm)120.6
Note

Note: Please read description carefully. Do not base your order on the picture presented.
