Features:

2:1 shrink ratio for dry applications
Provides excellent abrasion protection and color coding
Flexible

The Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications has insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Flame retardant, cross-linked polyolefin. 1.50" Diameter x 100' Long (38.1 mm x 30.5 m). Color Black. Application: For Dry Locations; Insulating and protecting wires and cables.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Adhesive Lined	No
Color	Black
Material	Cross-Linked Polyolefin
Maximum Operating Temperature (°C)	135
Maximum Operating Temperature (°F)	275
Minimum Operating Temperature (°C)	-55
Minimum Operating Temperature (°F)	-67
Nominal Diameter (In.)	1.5
Nominal Diameter (mm)	38.1
Nominal Recovered Wall Thickness (In.)	0.04
Nominal Recovered Wall Thickness (mm)	1
Overall Length (In.)	1200
Overall Length (ft.)	100
Overall Length (m)	30.5
Overall Length (mm)	30500
Resistance Properties	Flame Retardant
Standards Met	UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
Shrink Ratio	2:1
Shrink Temperature (°C)	90
Shrink Temperature (°F)	194
Maximum Recovered Inside Diameter (In.)	0.75
Maximum Recovered Inside Diameter (mm)	19.1
Minimum Expanded Inside Diameter (In.)	1.5
Minimum Expanded Inside Diameter (mm)	38.1

Product Details

Adhesive Lined	No
Color	Black
Material	Cross-Linked Polyolefin
Maximum Operating Temperature (°C)	135
Maximum Operating Temperature (°F)	275
Minimum Operating Temperature (°C)	-55
Minimum Operating Temperature (°F)	-67
Nominal Diameter (In.)	1.5
Nominal Diameter (mm)	38.1
Nominal Recovered Wall Thickness (In.)	0.04
Nominal Recovered Wall Thickness (mm)	1
Overall Length (In.)	1200
Overall Length (ft.)	100
Overall Length (m)	30.5
Overall Length (mm)	30500
Resistance Properties	Flame Retardant
Standards Met	UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
Shrink Ratio	2:1
Shrink Temperature (°C)	90
Shrink Temperature (°F)	194
Maximum Recovered Inside Diameter (In.)	0.75
Maximum Recovered Inside Diameter (mm)	19.1
Minimum Expanded Inside Diameter (In.)	1.5
Minimum Expanded Inside Diameter (mm)	38.1

Note

Note: Please read description carefully. Do not base your order on the picture presented.

Reviews

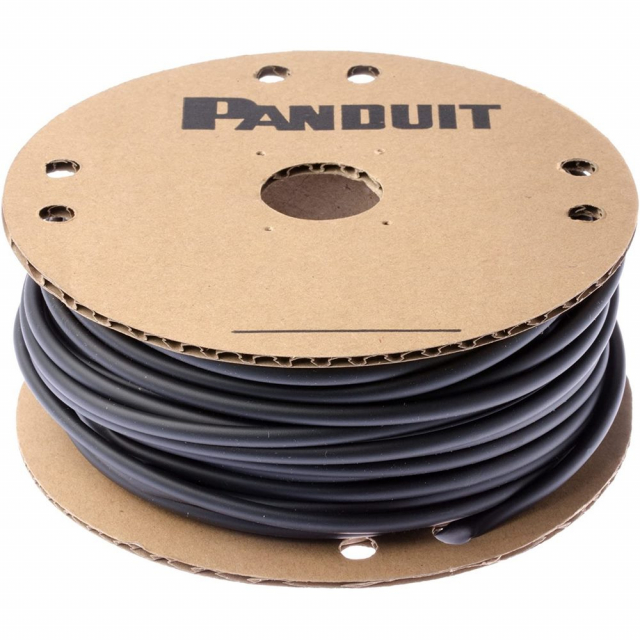

Panduit HSTT150-C Thin Wall Heat Shrink Tubing
