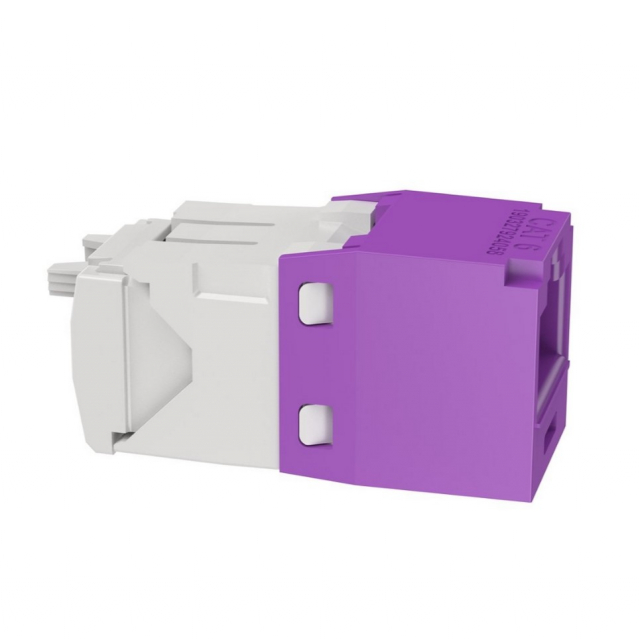

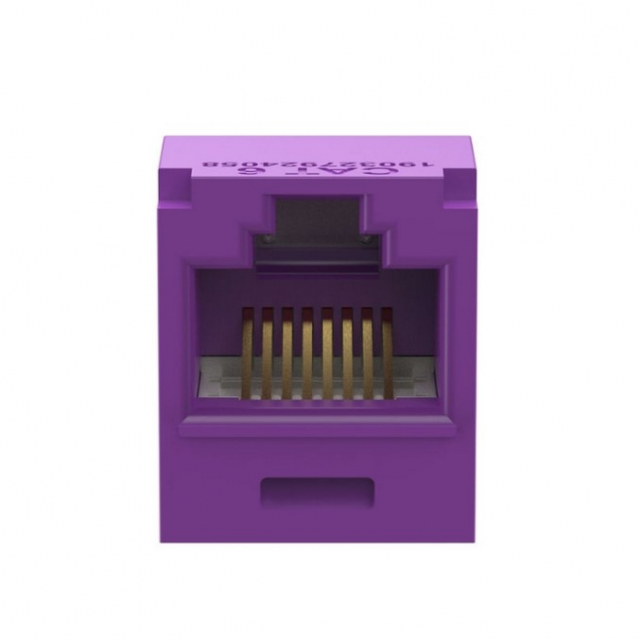

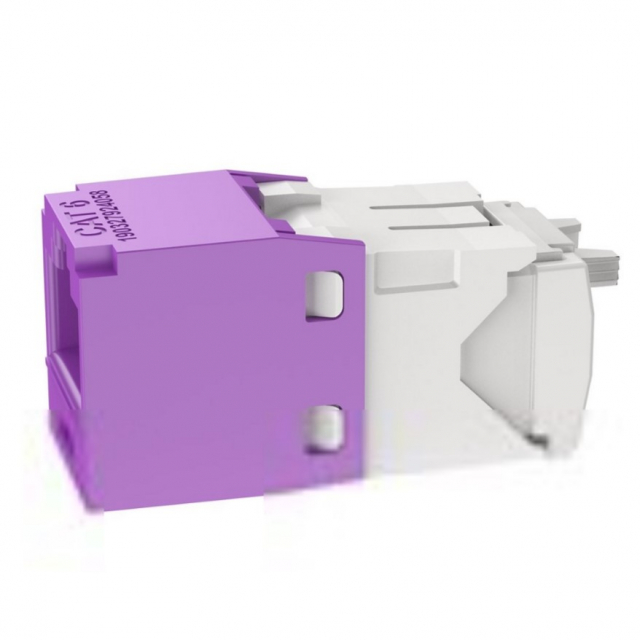

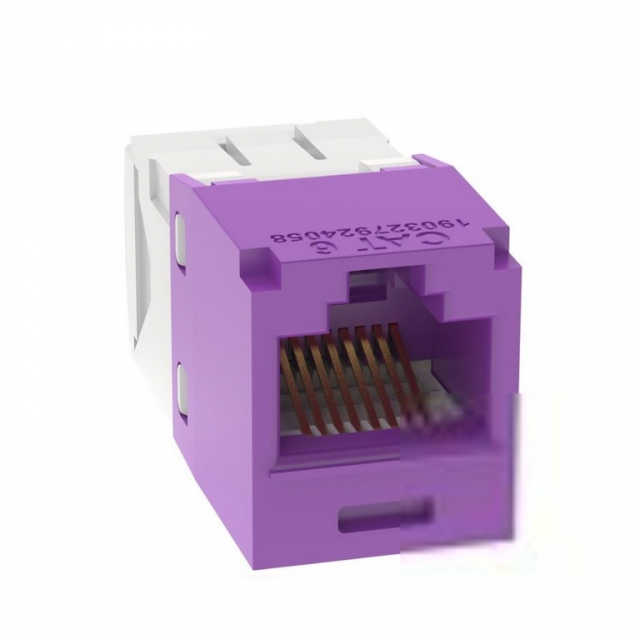

Panduit CJ688TGVL Mini-Com RJ45 Cat 6 TG Jack Module Violet
Condition:
Brand New
Brand New $15.27 /Each
$18.42 You save $3.15 17%
Handling Purchases under $100.00 are subject to $15.00 handling fee.
Free shipping
$15.27 /Each
$18.42 You save $3.15 17%
Handling Purchases under $100.00 are subject to $15.00 handling fee.
Manufacturer warranty Description
Panduit, CJ688TGVL, Mini-Com UTP RJ45 Cat 6 TG Jack Module Violet
Jack module offers a toolless solution for reliable network installations. Factory-tested modules deliver performance that exceeds standard industry requirements.
Technical details
Main features
- Color Violet
- Product Type Jack Module
- Connector Type Jack Module - Standard
- Body Material Polycarbonate
- Overall Length (mm) 38.1
- Module Type Mini-Com
- Overall Width (In.) 0.62
- Contact Material Plated Phosphor Bronze
- Maximum Operating Temperature (°F) 167
- Standards Met Exceeds component and channel requirements of ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz Supports 10GBASE-T transmission over twisted pair cabling systems (4-connector configuration up to 100 meters) Exceeds component requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards Meets ANSI/TIA-1096-A Meets IEC 60603-7 Meets IEC 60512-99-001 Rated for 2500 cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4 UL 1863 UL 2043 RoHS Compliant
- Overall Height (mm) 18
- Overall Width (mm) 15.7
- Shield Type Unshielded (UTP)
- Overall Length (In.) 1.5
- Termination Style TG Style
- Performance Level Category 6
- Wiring Scheme T568A/T568B
- Overall Depth (In.) 1.5
- Overall Depth (mm) 38.1
- Overall Height (In.) 0.71
- Maximum Operating Temperature (°C) 75
- Minimum Operating Temperature (°C) -10
- Minimum Operating Temperature (°F) 14
- Resistance Properties Heat-Resistant
- Sub Brand Pan-Net
- Maximum Storage Temperature (°F) 167
- Minimum Storage Temperature (°F) -40
- Maximum Storage Temperature (°C) 75
- Minimum Storage Temperature (°C) -40
