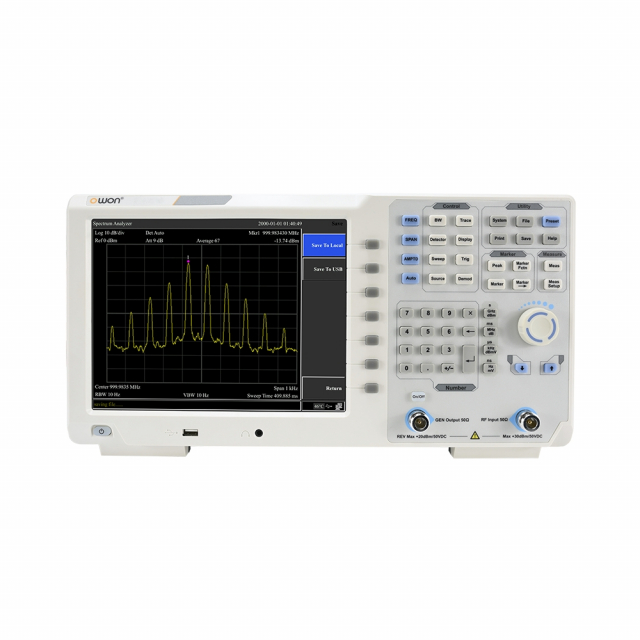

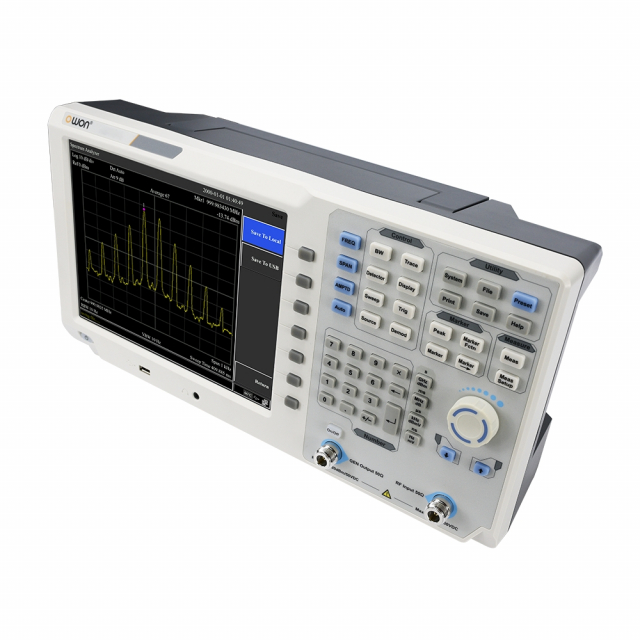

Owon XSA1075-TG XSA1000TG Series Spectrum Analyzer

Brand: Owon
Part #:
XSA1075-TG
Model #:
XSA1000TG Series
Condition:
Brand New
$7,504.00 /Each
$7,967.70 You save $463.70 6%
Free shipping
Typically In Stock
Check availability
$7,504.00 /Each
$7,967.70 You save $463.70 6%
Manufacturer warranty

Description

$7,504.00 /Each
$7,967.70 You save $463.70 6%
Free shipping
Typically In Stock
Check availability

Technical details

Main features
  • Mode Continue, single
  • Power 100V~240V 50/60Hz
  • Accuracy ± span /(swept points -1), ±(marker freq x freq reference uncertainty + counter resolution), <5% nominal
  • Range 9kHz-7.5 GHz, 0 Hz,100 Hz to maximum frequency of device
  • Frequency Response 20°C ~30°C,30%~70% relative humidity, 20 dB input attenuation, reference 50 MHz

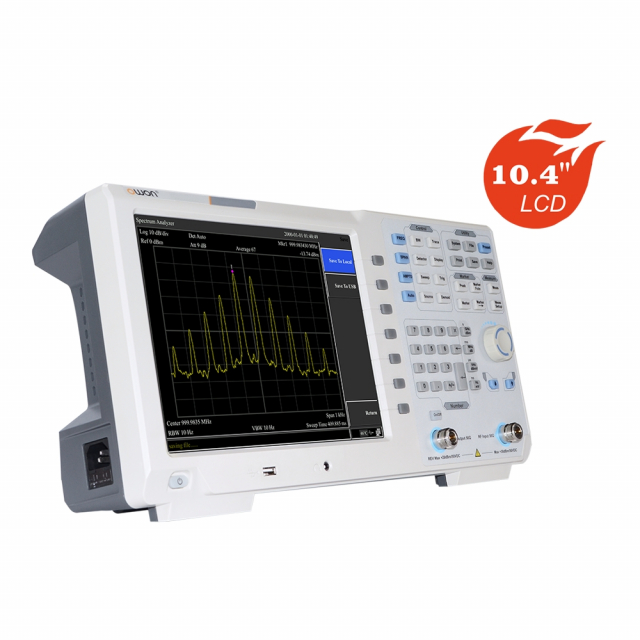

  • Display TFT LCD,10.4 inches
  • Resolution 1Hz, 1 Hz,10 Hz,100 Hz,1 kHz
  • Storage Temperature -20 °C to +60 °C

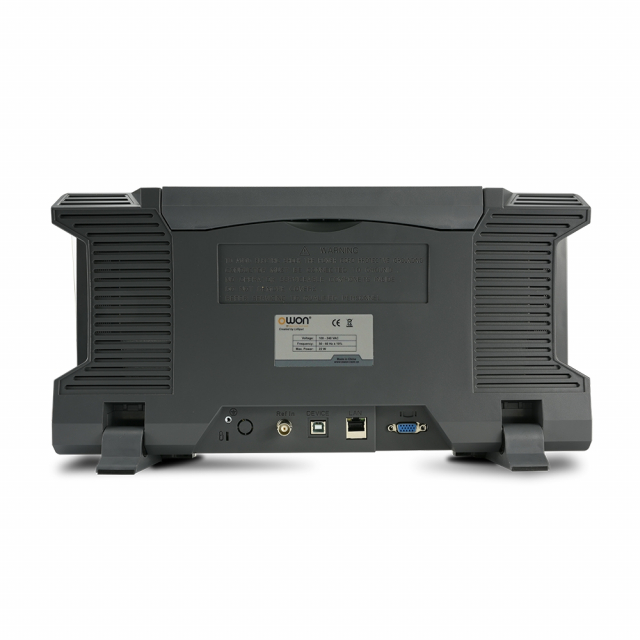

  • Communication Port USB HOST, USB DEVICE, LAN, earphone port, REF and VGA
  • Dimension (W x H x D) 421 x 221 x 115 (mm)
  • Working Temperature 0~40 °C
  • VSWR input 20 dB,1 MHz~7.5GHz <1.5,nominal
  • Reference Frequency 10.000000 MHz
  • Phase Noise 20 °C ~30 °C,fc=1 GHz <-98 dBc/Hz at10 kHz offset <-100 dBc/Hz at100 kHz offset <-110 dBc/Hz at1 MHz offset
  • Preamplifier 20 dB, nominal
  • Trigger Free run, video
  • Weight (without package) About 5 kg
  • Span Range 100Hz≤SPAN≤3GHz 10ms to 3000s zero sweep width 1ms to 3000s
  • Amplitude measurement range DANL to +20 dBm, close the preamplifier
  • Output power level range -40 dBm~0 dBm
  • Output power level resolution 1dB
  • Output flatness +/-3 dB
  • Input Attenuator Range 0~50 dB, 1 dB steps
  • Aging rate <1ppm/Year
  • Detectors Positive-peak, negative-peak, sample, normal, RMS
  • Trace functions Clear write, Max Hold, Min Hold, View, Blank, Average
  • Level unit dBm, dBuW, dBpW, dBmV, dBuV, W,V
  • Reference frequency accuracy ±[(days from last calibrate x freq aging rate)+ temperature stability + initial accuracy ]
  • Temperature stability <1ppm(15°C to 35°C)
  • Marker frequency resolution span/(the number of sweep points -1)
  • Uncertainty ±(freq indication x freq reference uncertainty +1%x span +10%x resolution bandwidth + Marker Frequency Resolution), input signal range 0dbm~-50dbm ±1.5 dB
  • Resolution bandwidth (-3 dB) 10Hz to 500kHz(in 1 to 10 sequence), 1MHz, 3MHz
  • Resolution filter shape factor <5:1 nominal(Digital implement, similar to Gauss Pattern)
  • Video bandwidth (-3 dB) 10Hz to 3MHz
  • Reference electric level -80 dBm to +30 dBm, 0.01dBm steps
  • Max input DC voltage 50 VDC
  • Max continuous power +30dBm,average continuous power

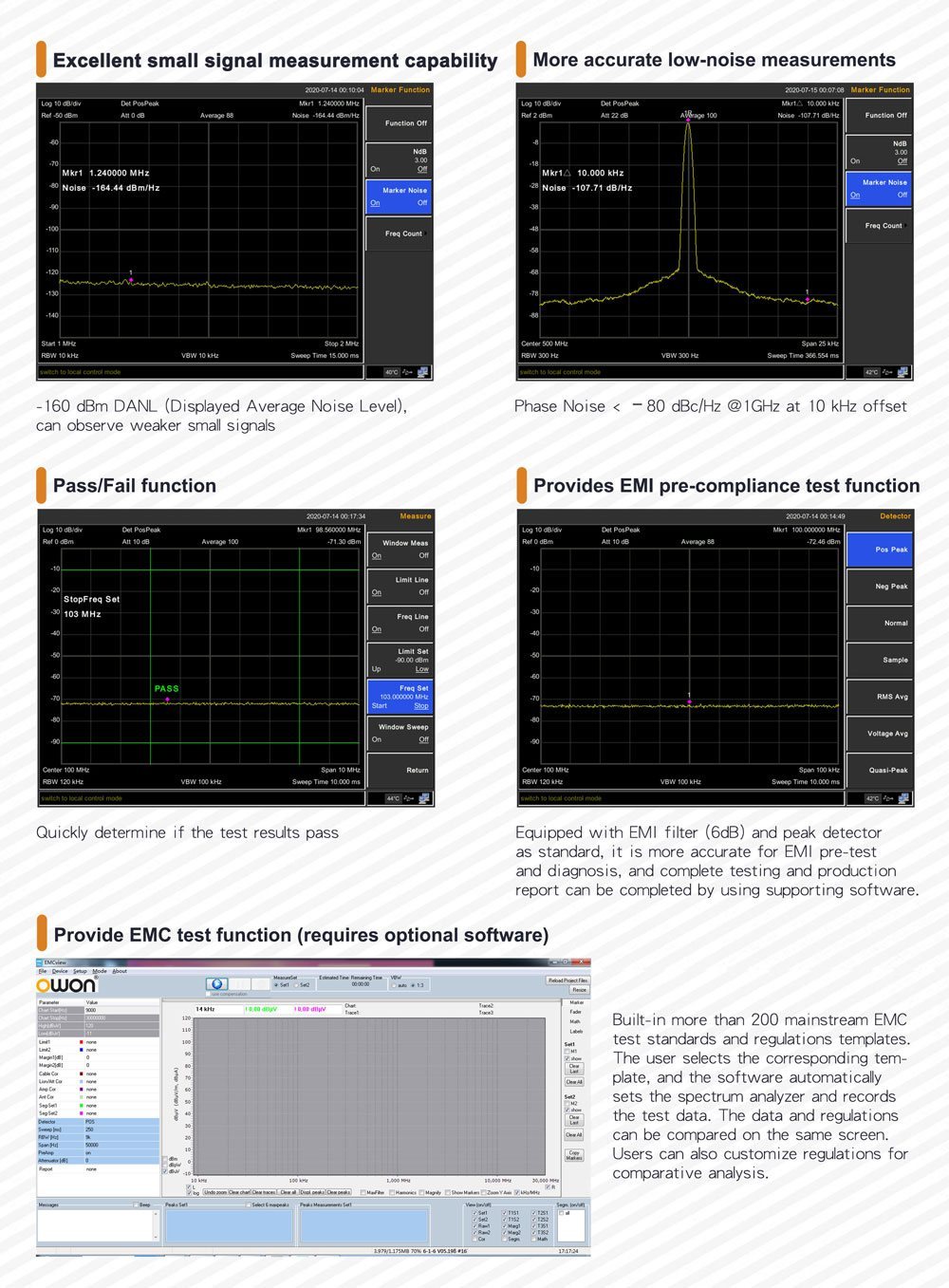

  • Displayed average noise level(DANL) Input attenuation 0 dB,1Hz resolution bandwidth
  • Preamp off 1 MHz~10 MHz -140dBm(nominated) 10 MHz~1GHz -140dBm(nominated) XSA1015TG:1GHz~1.5 GHz -138 dBm (nominated ) XSA1032TG:1GHz~3.2GHz -138 dBm (nominated ) XSA1036TG:1GHz~3.6 GHz -138 dBm (nominated ) XSA1075TG:1GHz~3.6GHz -138dBm (nominated) 4GHz~5GHz,-133dBm ( nominated ) 5GHz~6GHz,-128dBm ( nominated ) 6GHz~7GHz-123dBm ( nominated ) 7GHz~7.5GHz,-118dBm ( nominated ), ±0.8 dB
  • Preamp on 1 MHz~10 MHz -160dBm(nominated) 10 MHz~1GHz -160dBm(nominated) XSA1015TG: 1GHz~1.5 GHz -158 dBm (nominated ) XSA1032TG: 1GHz~3.2 GHz -158 dBm (nominated ) XSA1036TG: 1GHz~3.6 GHz -158 dBm (nominated ) XSA1075TG: 1GHz~4GHz -158dBm (nominated) 4GHz~5GHz -153dBm ( nominated ) 5GHz~6GHz -148dBm ( nominated ) 6GHz~7GHz -143dBm ( nominated ) 7GHz~7.5GHz -138dBm ( nominated ), ±0.9 dB
  • Log scale coordinate 1dB ~255dB
  • Linear scale coordinate 0 to reference level
  • Points 201~1001
  • Number of traces 5
  • Input Attenuation Switching Uncertainty 20°C ~30°C, fc=50 MHz,Preamplifier Off, 20dB RF attenuation,input signal 1~40 dB ±0.5 dB
  • Absolute Amplitude Uncertainty 20°C ~30°C, fc=50 MHz,RBW=1 kHz,VBW=1 kHz,peak detector, 20 dB RF attenuation Preamplifier Off ±0.4 dB,input signal= -20dBm Preamplifier On ±0.5 dB, input signal= -40dBm
  • Second harmonic distortion fc ≥ 50 MHz,Preamp off, signal input -30 dBm, 0 dB RF attenuation, 20 °C to 30 °C -65dbc
  • Third-order intermodulation fc ≥ 50 MHz
  • 1 dB Gain Compression fc ≥ 50 MHz, 0 dB RF attenuation,Preamp off , 20 °C to 30 °C 2 dBm, nominal
  • Residual response connect 50 Ω load at input port,0 dB input attenuation,20 °C to 30 °C<-85dBm,nominated
  • Input related spurious -30 dBm signal at input mixer,20 °C to 30 °C <-60 dBc
  • Output frequency range 100 kHz~3.6 GHz(Tracking generator) 35 MHz~3.6 GHz(Tracking generator) 100 kHz~7.5 GHz(Tracking generator)
  • Maximum safe reverse level Average total power:+30 dBm,DC : ±50 VDC
  • Front panel RF input connector 50 Ω,N-type female
  • Front panel track generator output 50 Ω,N-type female
  • 10 M reference input 50 Ω,N-type female
