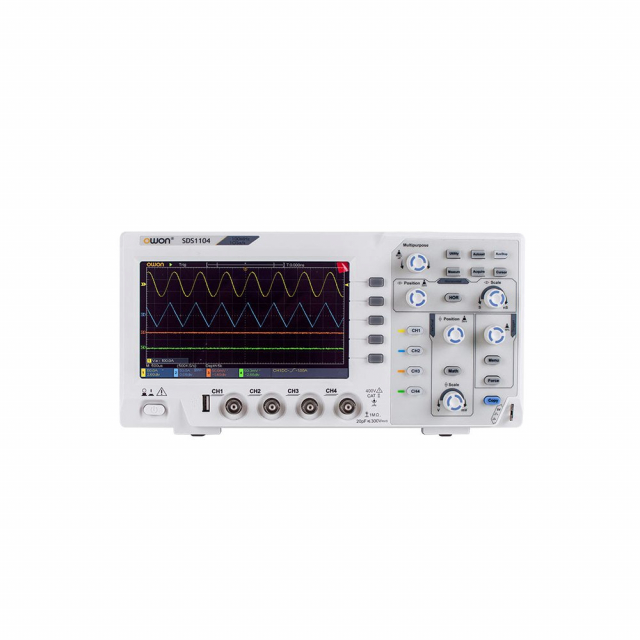

Owon SDS1104 4CH Series Economical Type Digital Oscilloscope

Brand: Owon
Part #:
SDS1104
Model #:
4CH Series
Condition:
Brand New

Choose Bandwidth (MHz)

$377.90 /Each
Typically In Stock
Check availability
$377.90 /Each
Manufacturer warranty

Description

$377.90 /Each
Typically In Stock
Check availability

Technical details

Main features
  • Bandwidth 100MHz
  • Power Supply 100V - 240V AC, 50/60Hz, CAT II
  • Communication Interface USB host, USB device
  • Bandwidth (MHz) 100
  • Channel 4
  • Display 7" color LCD, 800 x 480 pixels
  • Power Consumption <15W

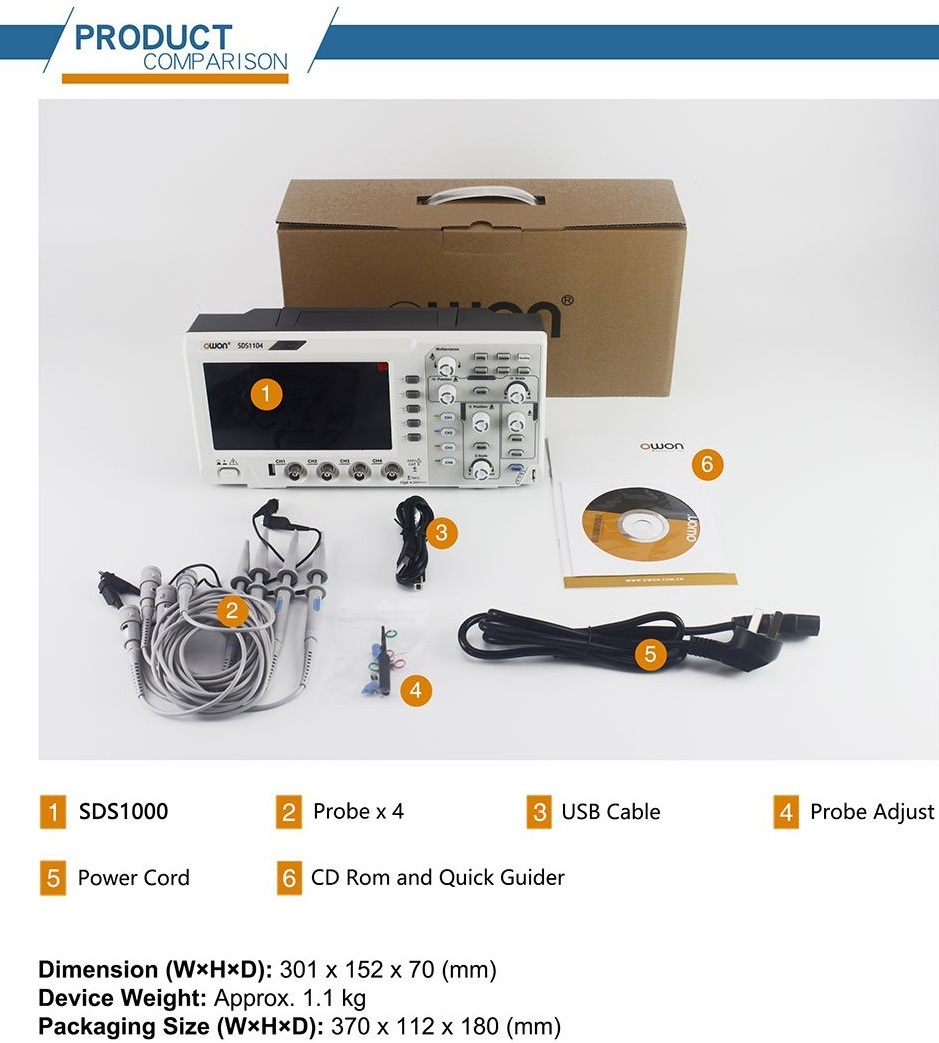

  • Dimension (W x H x D) 301 x 152 x 70 mm
  • Sample Rate 1GS/s
  • Trigger Type Edge, Video
  • Device Weight 1.10 kg
  • Horizontal Scale (s/div) 2ns/div - 1000s/div, step by 1 - 2 - 5
  • Input Coupling DC, AC , and GND
  • Vertical Sensitivity 5mV/div - 5V/div (at input)
  • Trigger Mode Auto, Normal, and Single

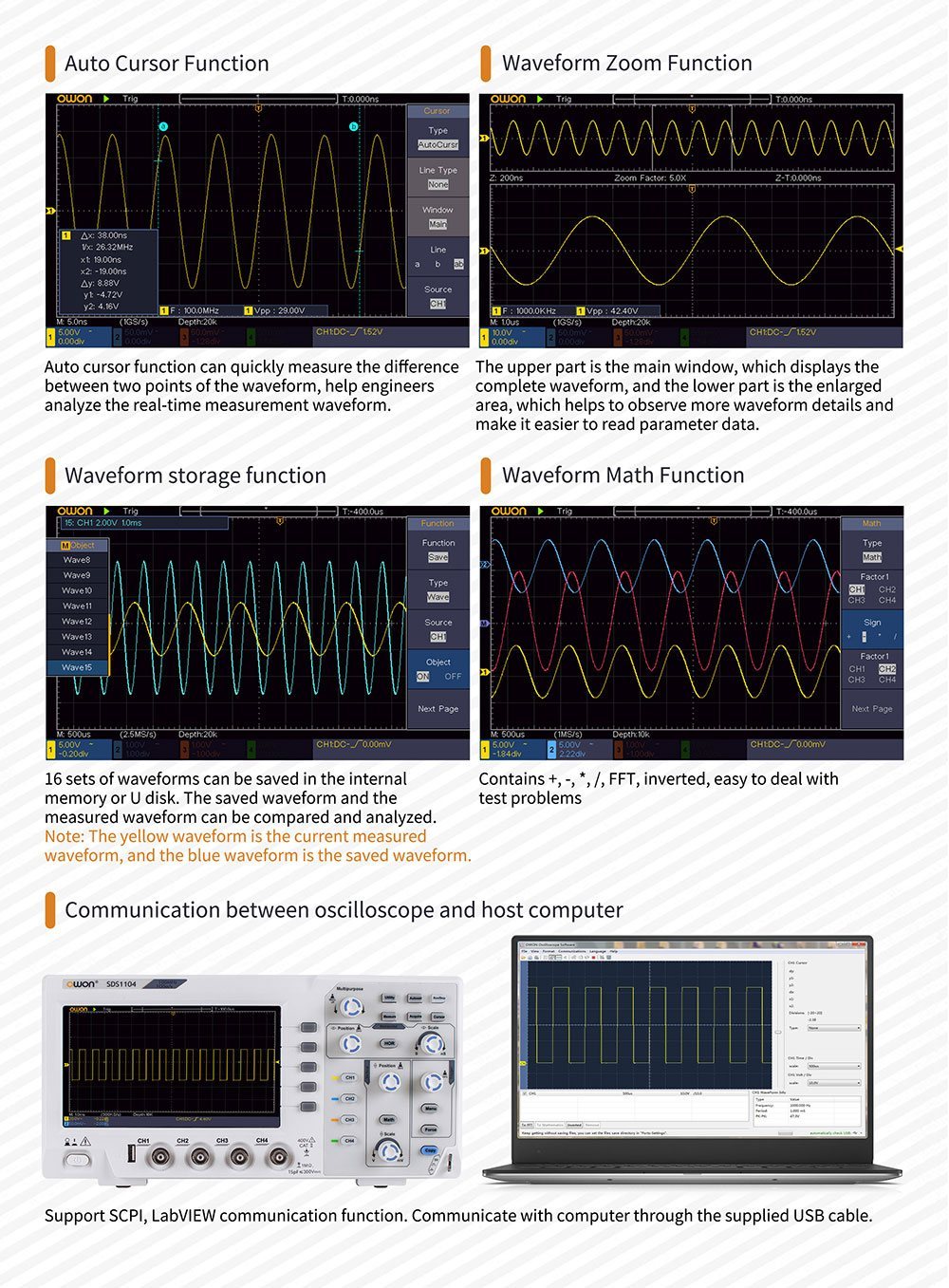

  • Waveform Math +, -, x, ÷, invert, FFT
  • Record Length 20K
  • Probe Attenuation Factor 1X, 10X, 100X, 1000X
  • Waveform Storage 16 waveforms
  • Frequency Counter Available
