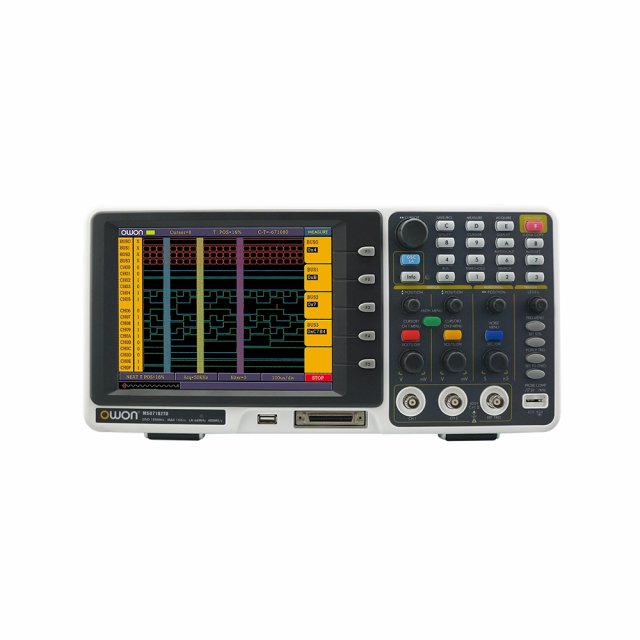

Owon MSO8202T MSO Series LA With Digital Oscilloscope

  • Brand Owon
  • Part # MSO8202T
  • Model # MSO Series
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Features:

  • 2 in 1 (DSO + LA)
  • 8 inch color LCD
  • USB data transmission supported
  • 20 groups automatic measurement options
  • Digital Storage Oscilloscope
    • Bandwidth: 60MHz - 200MHz
    • Sample rate: up to 2GS/s
    • Auto-scale function
    • FFT
  • Logic Analyzer
    • Bandwidth: 100MHz - 200MHz
    • Sample rate: 20S/s - 2GS/s
    • 16 digital channels

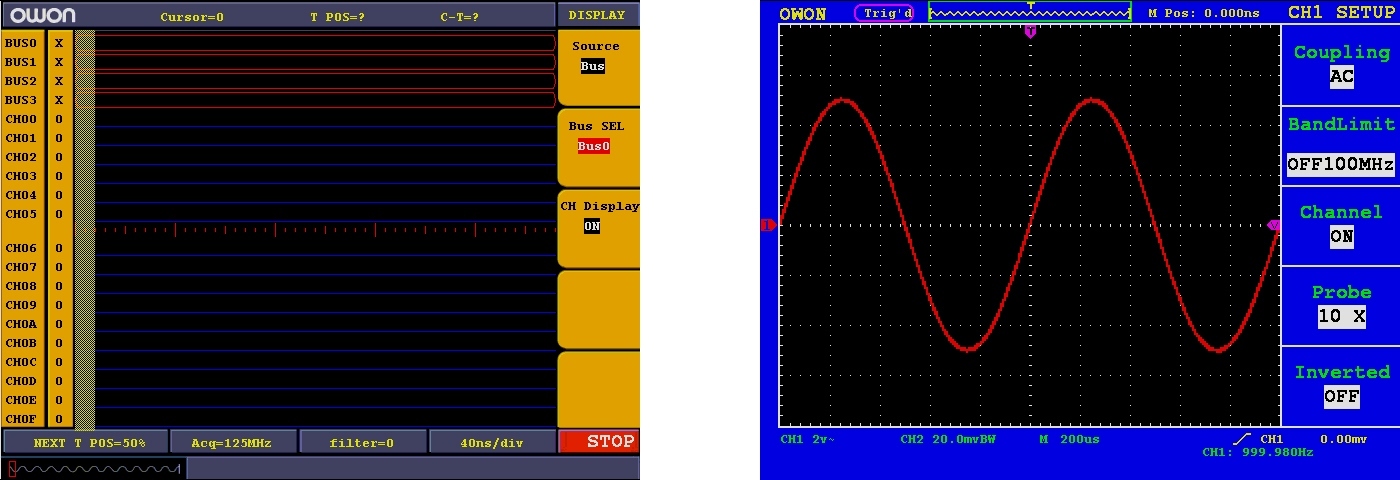

1. Oscilloscope & 16-channel logical analyzer, support multiple trigger mode including bus, status, data alignment, data width, distributed queue and etc.

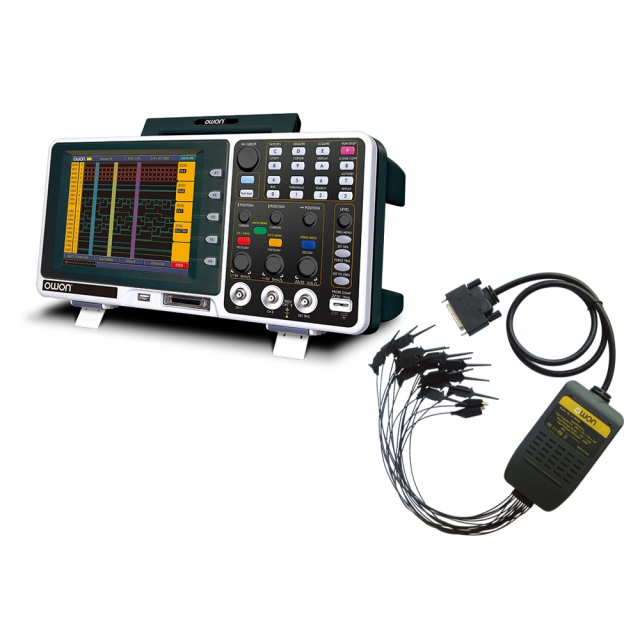

Oscilloscope & 16-channel logical analyzer

For more information, please see pdf file User Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer
Manufacturer Warranty

Technical Details

Reviews
Bandwidth200MHz
SampleRate (realtime)2GS/s
Display8.0'' color LCD ,640 x 480 pixels
Channeldual + external trigger
Horizontal Scale (s/div)1ns/div~100s/div, step by 1~2~5
Vertical Sensitivity2mV/div - 10V/div
Vertical Resolution (A/D)8bits (2 channels simultaneously)
Trigger ModeEdge, Video, Alternate, Pulse, and Slope
Acquisition ModeNormal,Peak Detect,and Average
Record Length2M points
Waveform Storage4 waveforms
Waveform Math+, -, x, ÷, FFT
Dimensions (W x H x D)370 x 180 x 120 (mm)
Weight (without package)2.20 kg
Sample Rate (real time)20S/s - 2GS/s
Bandwidth200MHz
Channel16
Record Length4M points
Product Details
Bandwidth200MHz
SampleRate (realtime)2GS/s
Display8.0'' color LCD ,640 x 480 pixels
Channeldual + external trigger
Horizontal Scale (s/div)1ns/div~100s/div, step by 1~2~5
Vertical Sensitivity2mV/div - 10V/div
Vertical Resolution (A/D)8bits (2 channels simultaneously)
Trigger ModeEdge, Video, Alternate, Pulse, and Slope
Acquisition ModeNormal,Peak Detect,and Average
Record Length2M points
Waveform Storage4 waveforms
Waveform Math+, -, x, ÷, FFT
Dimensions (W x H x D)370 x 180 x 120 (mm)
Weight (without package)2.20 kg
Sample Rate (real time)20S/s - 2GS/s
Bandwidth200MHz
Channel16
Record Length4M points
Note

Note: Please read description carefully. Do not base your order on the picture presented.
