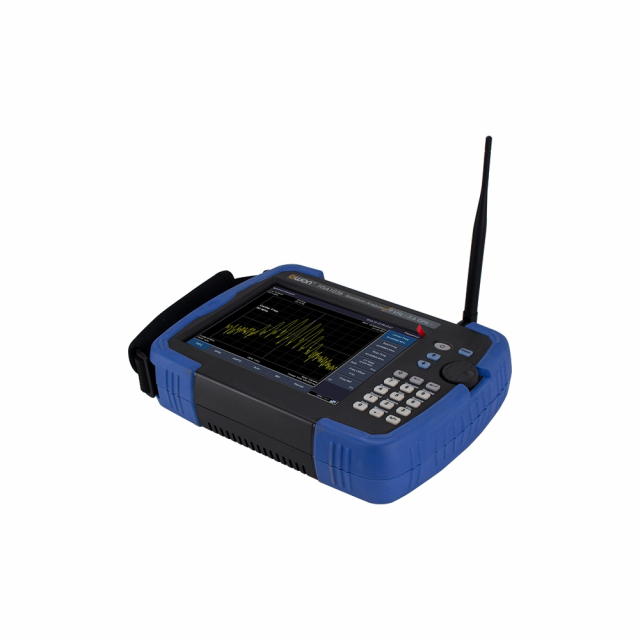

Owon HSA032-TG Handheld Spectrum Analyzer 9kHz - 3.2GHz
Brand:
Owon
Part #:
HSA032-TG
Condition:
Brand New
Brand NewChoose Frequency Range (kHz - GHz)
$3,450.00 /Each
$3,638.70 You save $188.70 5%
Manufacturer warranty Description
Features:
- Frequency Range from 9 kHz up to3.2 GHz

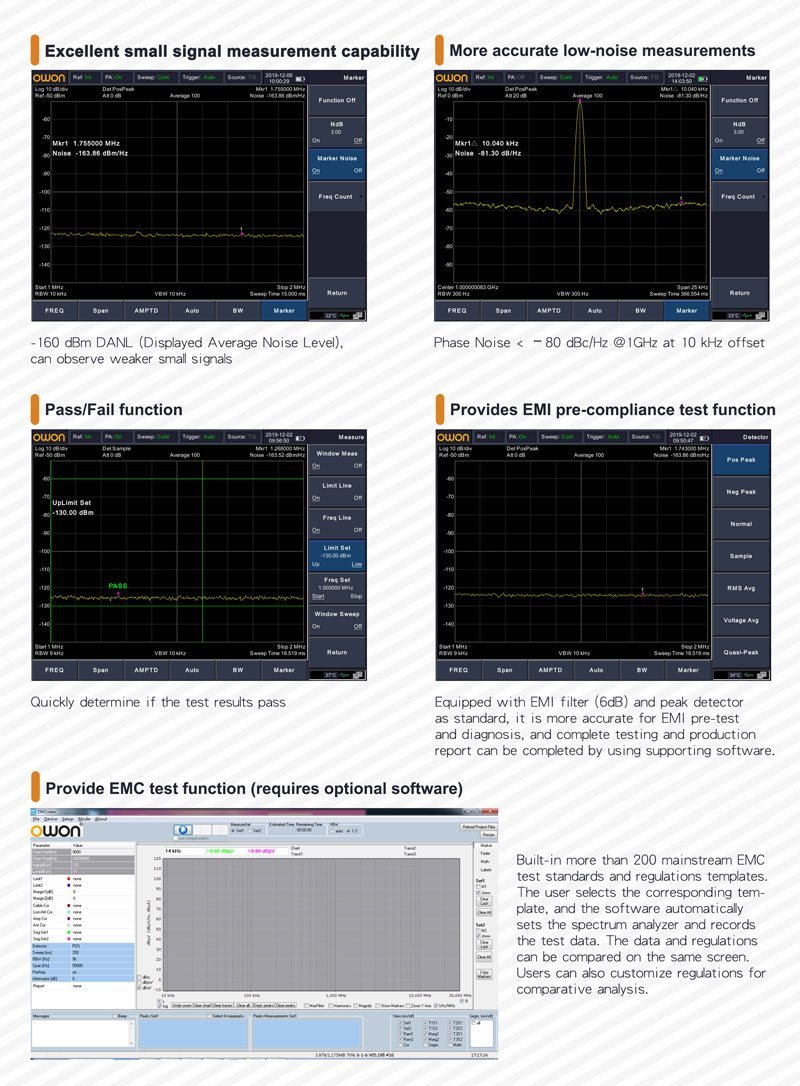

- 160dBm Displayed Average Noise Level
- Phase Noise -82dBc/Hz at1Gz and offset at 10KHz
- Total Amplitude Accuracy <1.5dB
- 10Hz Minimum Resolution Bandwidth (RBW)
- EMI Pre-compliance Test Kit

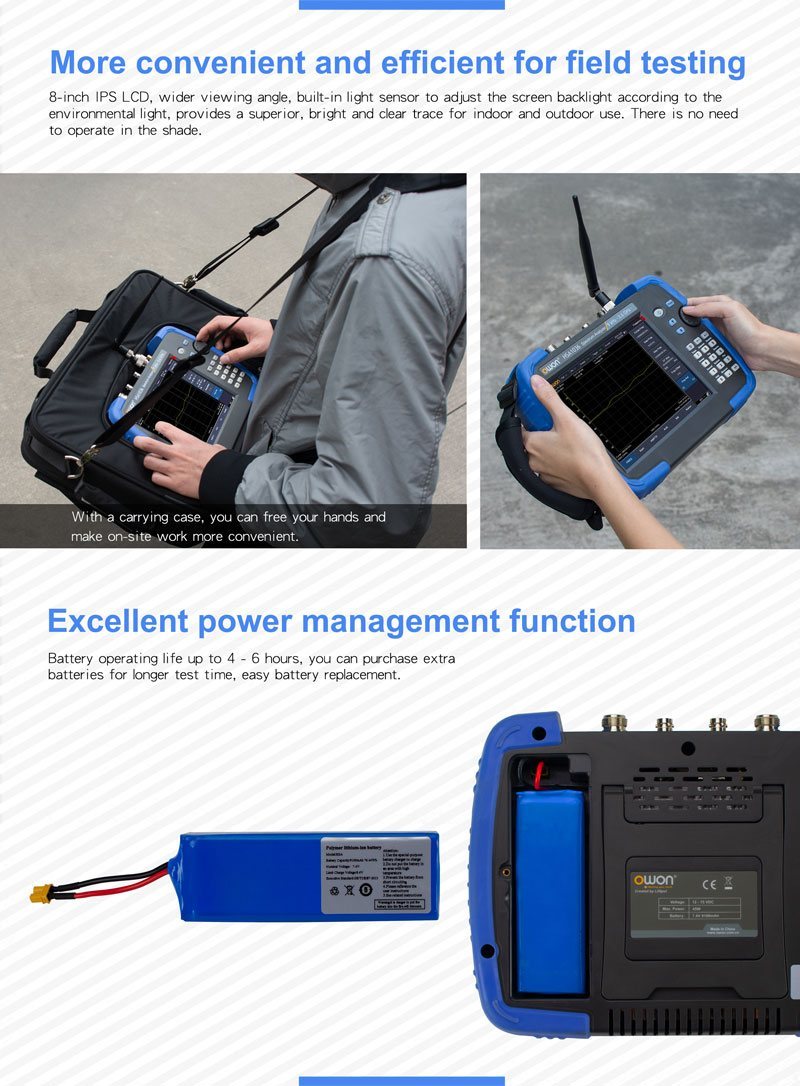

- 8 inches IPS touchscreen display, wider viewing angle
- Li-ion battery, operating life upto 4-6 hours
For more information, please see
User Manual
Technical details
Main features
- Color 65536
- Size 8 Inches

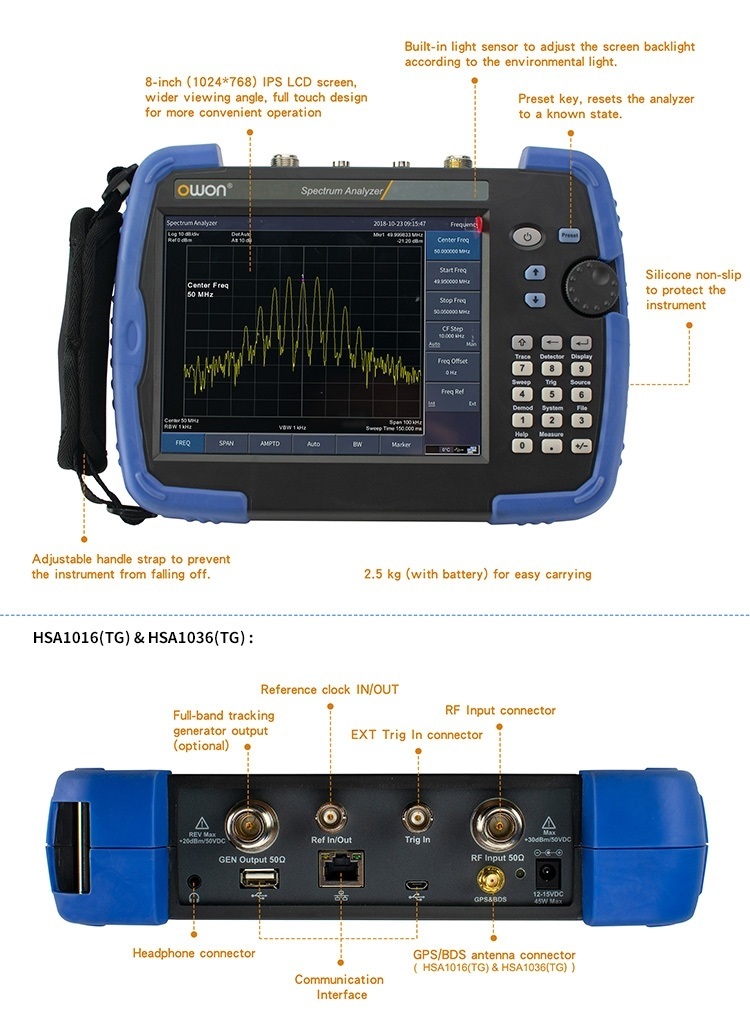

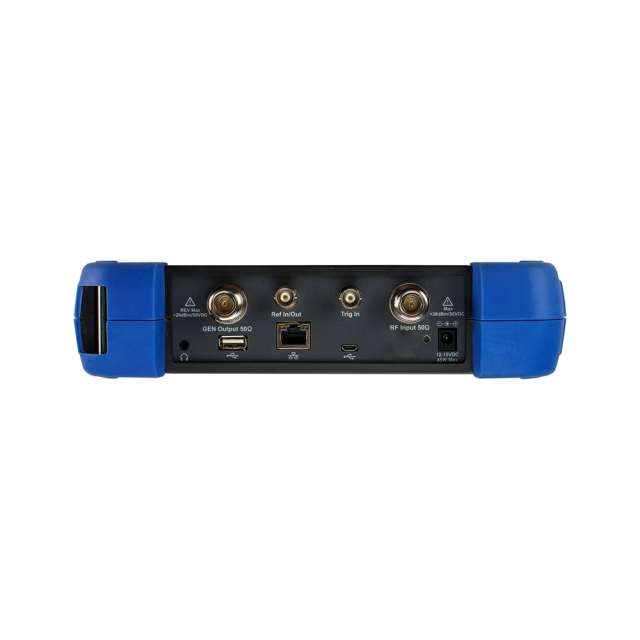

- Connector Micro USB, A Plug
- Weight Approx. 2.5 kg (without package)
- Dimensions 265 mm (W) x 190 mm (H) x 58 mm (D)
- Frequency Range 9 kHz to 3.200009 GHz, 100 kHz to 3.2 GHz (Tracking Source Output)
- Protocol USB 2.0 (Host End), 2.0 Version
- Frequency Range (kHz - GHz) 9 up to 3.2
- Type TFT LCD
- Resolution 1024*768
- USB USB TMC
- LAN 10/100 Base, RJ-45
- Frequency Resolution 1 Hz
- Span Range 0 Hz, 100 Hz to max frequency of instrument
- Span Uncertainty ± span / (sweep points-1)
- 10 kHz < -80 dBc/Hz (Typical)
- 100 kHz < -100 dBc/Hz (Typical)
- 1 MHz < -107 dBc/Hz (Typical)
- Resolution Bandwidth 10 Hz to 500 kHz (1-10 steps by sequence), 1 MHz, 3 MHz
- RBW Accuracy < 5%, typical (RBW ≤ 1 MHz)
- Resolutio Filter Shape Factor (60 dB : 3 dB) <5: 1 typical (digital and close to Gaussian shape)
- Video Bandwidth (VBW) 10 Hz to 3 MHz
- Amplitude measurement range DANL to +20 dBm, 1 MHz to 3.6 GHz, Preamp Off
- Reference Level -80 dBm to +30 dBm, 0.1dBm by step
- Preamp 20 dB, nominal, 9 kHz to 3.6 GHz
- Preamp Off (fc≥100K) ±0.8 dB;±0.4 dB (Typical)
- Preamp On (fc≥1 MHz) ±0.9 dB;±0.5 dB (Typical)
- Absolute Amplitude Accuracy 20°C to 30°C, fc=50 MHz, Span=200 kHz, RBW=10 kHz, VBW=10 kHz, peak detector, 10 dB RF attenuation,95% confidence level Preamp Off ±0.4 dB, input signal level -20 dBm Preamp On ±0.5 dB, input signal level -40 dBm
- Output power level range -40 dBm to 0 dBm
- Output power level resolution 1 dB
- Output flatness ± 3 dB
- Input Attenuator Range 0 to 50 dB, in 1 dB step
