Owon AG2062F 2-CH Arbitrary Waveform Generator with Counter

  • Brand Owon
  • Part # AG2062F
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Owon, AG2062F, OWON 2-CH Arbitrary Waveform Generator With Counter

Dual equivalent channel output. Waveform and status copy can be implement between channels, frequency/amplitude/phase coupling. Build-in educational/industrial common waveforms and divide it into common, math, engineer, window, other types. 6 bits/sec frequency rate, frequency measure ranges from 100MHz ~ 200MHz. Signal time, duty cycle and pulse width can be measured.

Features:

  • Advanced DDS technology, max 60MHz frequency output
  • Up to 250MS/s sample rate, and 1μHz frequency resolution
  • Vertical Resolution : 14 bits, up to 1M arb waveform length
  • Comprehensive waveform output : 5 basic waveforms, and 45 built-in arbitrary waveforms
  • Comprehensive modulation functions : AM, FM, PM, FSK, PWM, ASK, PSK, Sweep, and Burst
  • High-accuracy frequency counter integrated, supported range 100mHz - 200MHz
  • Supported SCPI
  • 4 inches high resolution (480 x 320 pixels) TFT LCD display

For more information, please see image55 User Manual

For more information, please see image38 Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
Channeldual
Frequency Output60MHz
Sample Rate250MS/s
Vertical Resolution14 bits
Standard WaveformSine, Square, Pulse, Ramp, and Noise
Arbitrary WaveformExponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrar y waveform
Noise25MHz (-3dB) (typical)
Resolution1m Vpp or 4 digits
DC Offset Range Resolution1mV or 4 digits
Wave Length2 pts to 1M pts
Non-volatile Memory64M byte
Modulation WaveformAM, FM, PM, FSK, PWM, ASK, PSK, Sweep, and Burst
Modulation Frequency2mHz to 20.00KHz (FSK 2mHz - 100KHz)
FunctionFrequency, Period, +Width, -Width, +Duty, and -Duty
Frequency Range100mHz - 200MHz
Frequency Resolution6 digits/s
Max Output Power10 W
Display4 inch (480 x 320 pixels) LCD
Typecounter

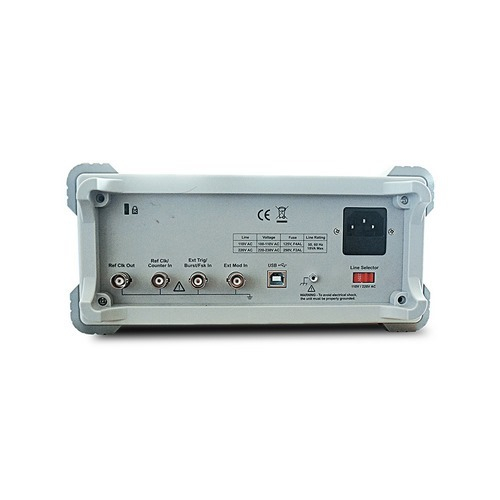

external modulation input,
external trigger input ,
external reference clock input / output
Communication InterfaceUSB host, and USB device, RS232 (option)
Dimension (WxHxD)235 x 110 x 295 (mm)
Device Weight3.00 kg
Product Details
Channeldual
Frequency Output60MHz
Sample Rate250MS/s
Vertical Resolution14 bits
Standard WaveformSine, Square, Pulse, Ramp, and Noise
Arbitrary WaveformExponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrar y waveform
Noise25MHz (-3dB) (typical)
Resolution1m Vpp or 4 digits
DC Offset Range Resolution1mV or 4 digits
Wave Length2 pts to 1M pts
Non-volatile Memory64M byte
Modulation WaveformAM, FM, PM, FSK, PWM, ASK, PSK, Sweep, and Burst
Modulation Frequency2mHz to 20.00KHz (FSK 2mHz - 100KHz)
FunctionFrequency, Period, +Width, -Width, +Duty, and -Duty
Frequency Range100mHz - 200MHz
Frequency Resolution6 digits/s
Max Output Power10 W
Display4 inch (480 x 320 pixels) LCD
Typecounter
external modulation input,
external trigger input ,
external reference clock input / output
Communication InterfaceUSB host, and USB device, RS232 (option)
Dimension (WxHxD)235 x 110 x 295 (mm)
Device Weight3.00 kg
Note

Note: Please read description carefully. Do not base your order on the picture presented.
