OWL DO2st Multimode Light Source, 850 / 1300 nm, ST Connector

Optical Wavelength Labs (OWL), DO2st, Multimode Light Source, 850 / 1300 nm, ST Connector

Features:

• Highly stabilized
• Temperature Compensated
• -20dBm Calibrated Output (Customizable)
• Compact Size
• Rugged and Economical
• Extended Battery Life
• Low Battery Indicator
• NIST Traceable
• Stable temperature compensated LED source
• ST connectors
• Re-chargeable Lithium Polymer battery - up to 120 hours battery life
• Combination selected source / Low battery indicator LEDs
• Simple two-button operation
• NISTtraceable

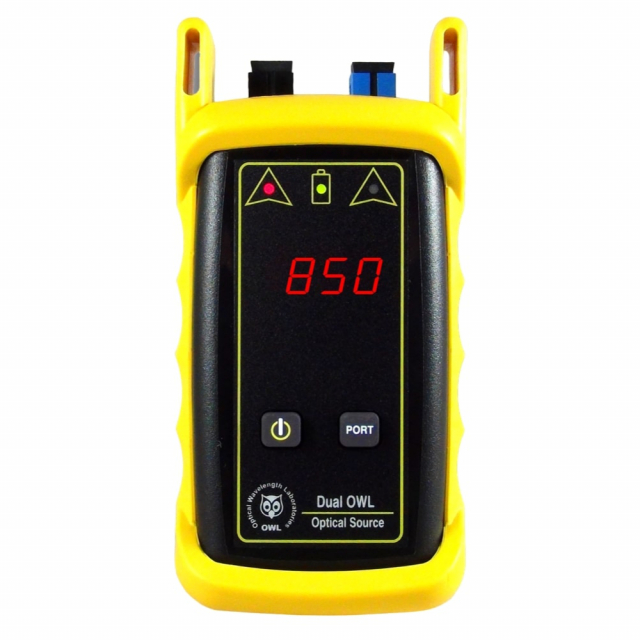

The Dual OWL is a cost effective, compact, handheld light source. The temperature compensated outputs are calibrated to couple -20dBm of optical power into multimode fiber. The light source comes installed with the two most commonly used multimode wavelengths - 850nm and 1300nm. The source has an intuitive two-button interface - one button for turning the unit ON or OFF and the other for wavelength selection. LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power. Dual OWL series fiber optic light sources offer exceptional value at an economical price. These LED-based sources provide the fiber optic installer with a stable output when testing multimode fiber optic runs. The Dual OWL combines an 850nm and a 1300nm LED into one light source to provide the widest range of options for multimode optical fiber testing. High intensity LEDs such as the ones in Dual OWL light sources produce intense beams of infrared energy that are invisible to the eye.
