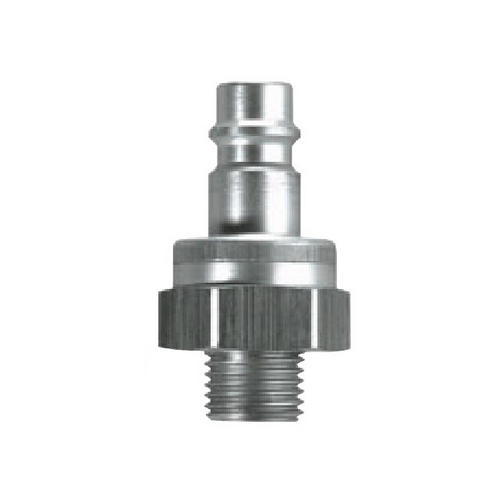

Nycoil 25SBAN21MPX Series 25 KB 1/2" NPT Plug Standard Design

Size/Type/Material: 1/2", NPT Plug, Standard Design
  • Brand Nycoil
  • Part # 25SBAN21MPX
  • Model # Series 25 KB
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Size/Type/Material:
Size/Type/Material: 1/2", NPT Plug, Standard Design

Nycoil, 25SBAN21MPX, Series 25 KB, 1/2" NPT Plug Standard Design, Automatic Double Shut-Off - Nominal Plug Bore .29"

Features:

  • Working Temperature: depending on medium
    • -4°F up to +210°F (NBR)
    • -40°F up to +250/300°F (EPDM)
    • +5°F up to +400°F (FKM)
    • +32°F up to +600°F (FFKM)
  • Working Pressure: 500 psi, maximum static working pressure with 4:1 design factor

Designed specifically for liquid mediums, 25KB is a double shut-off version of the 25KA compressed air model.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller

Technical Details

Reviews

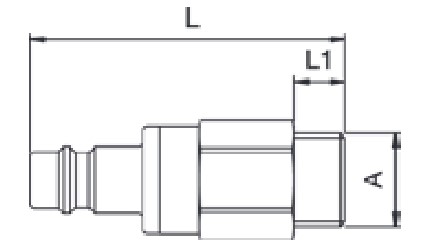

Dimensions
Dimensions
Plug TypeMale Thread
Connection (A)1/2" NPT
Hex (SW).86
Length (L)2.00
L1.66
Finishwithout Finish
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

WARNING: This product can expose you to chemicals including Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Product Details
Dimensions
Dimensions
Plug TypeMale Thread
Connection (A)1/2" NPT
Hex (SW).86
Length (L)2.00
L1.66
Finishwithout Finish
Note

Note: Please read description carefully. Do not base your order on the picture presented.
